Quick Details
-
Jacket:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sitong
-
Model Number:
-
50mm70mm 100mm
-
Conductor:
-
Alulminum acsr
-
Hot Sale Size:
-
50mm 95mm 100mm acsr conductor
-
Standard:
-
BS IEC ASTM DIN
-
Cable type:
-
bare conductor
-
Factory:
-
Located
-
Usage:
-
Power Transmission Lines
-
Certificate:
-
ISO9001/CCC/CE
Quick Details
-
Insulation Material:
-
none
-
Application:
-
Overhead
-
Conductor Material:
-
Aluminum
-
Jacket:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sitong
-
Model Number:
-
50mm70mm 100mm
-
Conductor:
-
Alulminum acsr
-
Hot Sale Size:
-
50mm 95mm 100mm acsr conductor
-
Standard:
-
BS IEC ASTM DIN
-
Cable type:
-
bare conductor
-
Factory:
-
Located
-
Usage:
-
Power Transmission Lines
-
Certificate:
-
ISO9001/CCC/CE

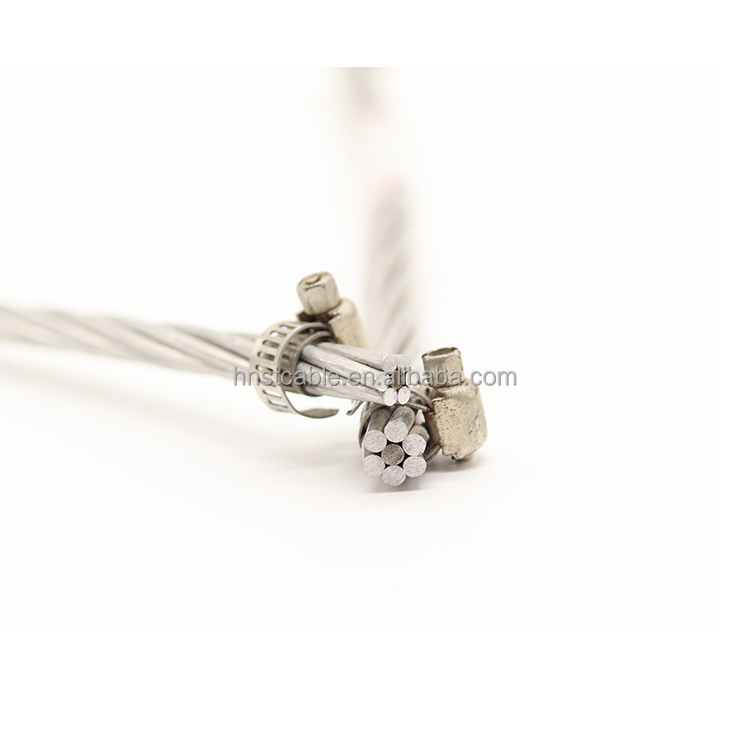

Detail Description or Construction
Conductor
Concentric stranded hard drawn aluminum wire
Steel Core
Aluminum-Clad wire, solid or concentric stranded
Application
Used as bare overhead transmission and as primary and secondary distribution cable.
ACSR/AW offers optimal strength for line design. Along with slightly greater ampacity
and resistance to corrosion due to the aluminum cladding of the steel core wires.
It provides greater protection where corrosive condition are severe.
Installation
It is recommended that the installation instructions indicated by the Local Electric Code,
or any equivalent, be followed, so that the safeguarding of persons and the integrity of the
product will not be affected by deficiencies in the installation.
DIN48204 ACSR Conductor
|
Nominal Aera |
Area |
Stranding&Wire Diameter |
Diameter
|
Approximate weight |
Breaking Load |
DC Resistance zt 20℃ |
Currant rating |
|||||||
| Aluminum | Steel | Aluminum | Steel | Total |
Aluminum |
Steel |
Aluminum |
Steel |
Core |
Conductor |
||||
|
mm2 |
mm2 | mm2 | mm2 | mm2 |
No. |
No. |
mm |
mm | mm | mm | Kg/km | Kn |
Ω/km |
A |
| 16 | 2.5 | 15.3 | 2.5 | 17.8 | 6 | 1 | 1.80 | 1.80 | 1.80 | 5.40 | 61.8 | 5.81 | 1.8796 | 105 |
| 25 | 4 | 23.9 | 4.0 | 27.8 | 6 | 1 | 2.25 | 2.25 | 2.25 | 6.75 | 96.5 | 9.02 | 1.2028 | 140 |
| 30 | 6 | 34.4 | 5.7 | 40.1 | 6 | 1 | 2.70 | 2.70 | 2.70 | 8.10 | 139.0 | 12.70 | 0.8353 | 170 |
| 44 | 32 | 44.0 | 31.7 | 75.6 | 14 | 7 | 2.00 | 2.40 | 7.20 | 11.20 | 368.6 | 45.46 | 0.6573 | - |
| 50 | 8 | 48.3 | 8.0 | 56.3 | 6 | 1 | 3.20 | 3.20 | 3.20 | 9.60 | 195.3 | 17.18 | 0.5946 | 210 |
| 50 | 30 | 51.2 | 29.8 | 81.0 | 12 | 7 | 2.33 | 2.33 | 6.99 | 11.65 | 374.1 | 44.28 | 0.5644 | - |
| 70 | 12 | 69.9 | 11.4 | 81 | 26 | 7 | 1.85 | 1.44 | 4.32 | 11.72 | 281.6 | 26.31 | 0.4130 | 290 |
| 95 | 15 | 94.4 | 15.3 | 110 | 26 | 7 | 2.15 | 1.67 | 5.01 | 13.61 | 380.5 | 35.17 | 0.3058 | 350 |
| 95 | 55 | 96.5 | 56.3 | 153 | 12 | 7 | 3.20 | 3.20 | 9.60 | 16.00 | 706.5 | 80.20 | 0.2992 | - |
| 105 | 75 | 105.7 | 75.5 | 181 | 14 | 19 | 3.10 | 2.25 | 11.25 | 17.45 | 883.3 | 106.69 | 0.2736 | - |
| 120 | 20 | 121.6 | 19.8 | 141 | 26 | 7 | 2.44 | 1.90 | 5.70 | 15.46 | 490.0 | 44.94 | 0.2374 | 410 |
| 120 | 70 | 122.1 | 71.3 | 193 | 12 | 7 | 3.60 | 3.60 | 10.80 | 18.00 | 895.1 | 98.16 | 0.2364 | - |
| 125 | 30 | 127.9 | 29.8 | 158 | 30 | 7 | 2.33 | 2.33 | 6.99 | 16.31 | 586.2 | 57.86 | 0.2259 | 425 |
| 150 | 25 | 148.9 | 24.2 | 173 | 26 | 7 | 2.70 | 2.10 | 6.30 | 17.10 | 598.0 | 54.37 | 0.1939 | 470 |
All cables will be packed in rool or different sizes wooden reels according to their outside diameter and net weight. 1. We use fumigated & treated timber wooden reel to package cables. 2. Frequently-used reel sizes: 0.7*0.7*0.7m, 1.1*1.1*0.8m, 1.8*1.8*1.1m, 2.2*2.2*1.8m, or as customer's reauests 3. Wooden plate sealed. 4. 72 pcs of 0.7m wooden reel can be put in one 20FCL. 28 pcs of 1.1m wooden reel can be put in one 20FCL. 6 pcs of 1.8m wooden reel can be put in one 20FCL.
