6m 8m Farm use certificated Rough Terrain Track Crawler Electric Scissor Lift

6m 8m Farm use certificated Rough Terrain Track Crawler Electric Scissor Lift

FOB Reference Price: Get Latest Price

≥1 Sets

US $1400

≥4 Sets

US $1300

≥8 Sets

US $1100

≥20 Sets

US $900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: STANDARD

Min. Lifting Height:: 1.1m

Table Size:: 2.26*1.13m or 2.26*0.8m

Overall Dimensions:: As per model number

Weight:: kg

Extandable Platform Length:: 900mm

Extandable Platform Capacity:: 113Kg

Control Mode:: Proportional controls

1 Safe Configuration:: Automatic pothole protection

2 Safe Configuration:: Tilt Angle Sensor

3 Safe Configuration:: Emergency Decline System

Safe Valves:: Anti Explosion Valve, Overflow Valve,Check Valve, Adjustment Valve,

Intelligent Self Inspection:: Onboard Diagnostic System

Surface Treatment:: Powder Coating

Control Panel:: Both on Platform and Chasis

Quick Details

Warranty:: 1 Year

Place of Origin:: Shandong, China

Brand Name:: SAGA FIRST

Power:: STANDARD

Min. Lifting Height:: 1.1m

Table Size:: 2.26*1.13m or 2.26*0.8m

Overall Dimensions:: As per model number

Weight:: kg

Extandable Platform Length:: 900mm

Extandable Platform Capacity:: 113Kg

Control Mode:: Proportional controls

1 Safe Configuration:: Automatic pothole protection

2 Safe Configuration:: Tilt Angle Sensor

3 Safe Configuration:: Emergency Decline System

Safe Valves:: Anti Explosion Valve, Overflow Valve,Check Valve, Adjustment Valve,

Intelligent Self Inspection:: Onboard Diagnostic System

Surface Treatment:: Powder Coating

Control Panel:: Both on Platform and Chasis

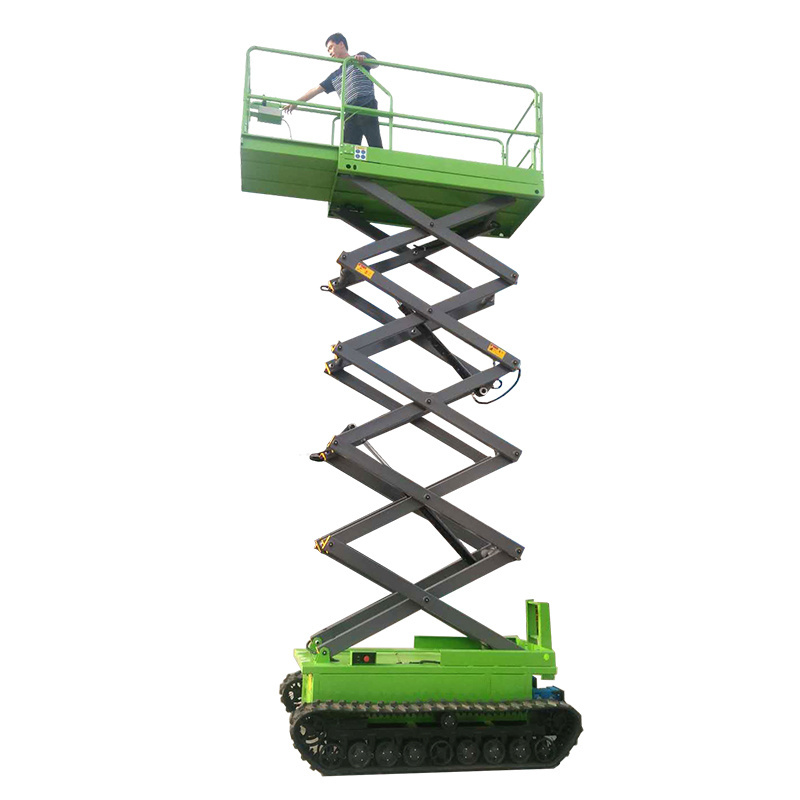

Rough Terrain Track Crawler Scissor Lift

- OEM & ODM Service -

Model Type	SP-TC05 Crawler Type 4.6m	SP-TC68 Crawler Type 6m	SP-TC06H Automatic Leveling Hydraulic Outriggers	SP-TC08 Crawler Type 8m	SP-TC08H Automatic Leveling Hydraulic Outriggers	SP-TC10 Crawler Type 10m	SP-TC10H Automatic Leveling Hydraulic Outriggers	SP-TC12 Crawler Type 8m	SP-TC12H Automatic Leveling Hydraulic Outriggers
Load Capacity	200Kg	450Kg	450Kg	450Kg	450Kg	320Kg	320Kg	320Kg	320Kg
Load Capacity of Extendable Platform	100Kg	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg	113Kg
Workers on Platform	1	2	2	2	2	2	2	2	2
Max Lifting Height	6.5m	8m	8m	10m	10m	12m	12m	14m	14m
Max Working Height	4.5m	6m	6m	8m	8m	9.75m	9.75m	11.75m	11.75m
Overall Length(with ladder)	1270mm	2470mm	2782mm	2470mm	2782mm	2470mm	2782mm	2470mm	2782mm
Overall Length(without ladder)	1270mm	2280mm	2782mm	2280mm	2782mm	2280mm	2782mm	2280mm	2782mm
Overall Width	790mm	1390mm	1581mm	1390mm	1581mm	1390mm	1581mm	1390mm	1581mm
Overall Height(Guardrails unfolded)	1820mm	2280mm	2280mm	2400mm	2400mm	2530mm	2530mm	2670mm	2670mm
Overall Height(Guardrails folded))	/	1745mm	1745mm	1865mm	1865mm	1995mm	1995mm	2130mm	2130mm
Platform Size	1230X655mm	2270X1120mm X700mm	2270X1120mm X700mm	2270X1120mm X700mm	2270X1120mm X700mm	2270X1120mm X700mm	2270X1120mm X700mm	2270X1120mm X700mm	2270X1120mm X700mm
Extendable Platform Length	550mm	900mm	900mm	900mm	900mm	900mm	900mm	900mm	900mm
Min Turning Radius	0m	0m	0m	0m	0m	0m	0m	0m	0m
Min Ground Clearance	50	150	150	150	150	150	150	150	150
Lifting Motor	24v/0.1.2Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw	48V/4Kw
Driving Motor	2X24v/1.5Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw	2X48v/4Kw
Driving Speed	1.7Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h	2.4Km/h
Lifting UP/DOWN Speed	24/20sec	38/30sec	38/30sec	45/36sec	45/36sec	70/62sec	70/62sec	85/75sec	85/75sec
Charger	25%	48V/25A	48V/25A	48V/25A	48V/25A	48V/25A	48V/25A	48V/25A	48V/25A
Machine Weight	790Kg	2400Kg	2800Kg	2550Kg	2950kg	2840Kg	3240kg	3000Kg	3480kg

Rough Terrain scissor lift i s one kind of self propelled scissor lift. It is famous for its high efficient performance, very low failure rate and sensitive speed adjust ability. Motor drive supply all power for moving and lifting.

Product Description

Track crawler Type can walk in very bad conditions,like muddy road,grass,gravel road,shallow water road etc.

Automatic Leveling Hydraulic Outriggers Type can make the machine keep level and lift up in uneven ground.

Detailed Images

Safety Precautions:
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve

4. Check Valve 5. Adjustment Valve 6. Tilt Angle Sensor

7.Automatic pothole protection 8.Self-lock gate on platform 9.Safety Maintaince Rod

Applications

Electric Motor Drive Self Propelled Scissor Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.

Certifications

SAGA FIRST Self Propelled Scissor Lift are approved by European certificates and meet the international standards.

Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	<USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD100,00: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.
