Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
306*169*190cm
-
Weight:
-
1.4 kg
-
Marketing Type:
-
paper cutting machine
-
PLC Brand:
-
paper cutting machine
-
Name:
-
paper roll to sheet cutting machine with wax paper
-
Suitable material:
-
Paper/film, hamburgar paper non woven. cloth, leather and etc.
-
Jumbo Roll Diameter:
-
800mm
-
thickness of cutting:
-
20-350g
-
Max.Cutting width:
-
800mm
-
Cutting Length:
-
20-1000mm
-
Cutting Speed:
-
120-130 times/min
-
Precision:
-
±0.2mm
-
Power Supply:
-
7KW
-
keywords:
-
paper cutting machine
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
50 m/min
-
Max. workable width:
-
800mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
306*169*190cm
-
Weight:
-
1.4 kg
-
Marketing Type:
-
paper cutting machine
-
PLC Brand:
-
paper cutting machine
-
Name:
-
paper roll to sheet cutting machine with wax paper
-
Suitable material:
-
Paper/film, hamburgar paper non woven. cloth, leather and etc.
-
Jumbo Roll Diameter:
-
800mm
-
thickness of cutting:
-
20-350g
-
Max.Cutting width:
-
800mm
-
Cutting Length:
-
20-1000mm
-
Cutting Speed:
-
120-130 times/min
-
Precision:
-
±0.2mm
-
Power Supply:
-
7KW
-
keywords:
-
paper cutting machine

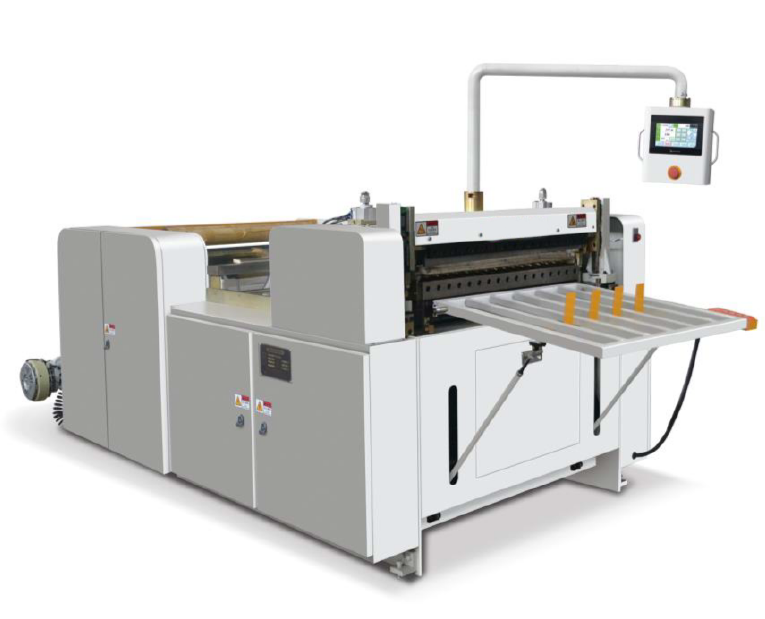

China price automatic grease paper sandwich a1 a3 a4 size copy paper roll to sheet cutting machine with wax paper
♦ Application ♦
Automatic paper die cutting machine for printing press is suitable for cutting jumbo roll of materials, such as all kinds of papre, film, leather and so on.
♦ Features ♦
1.INVT servo motor to control the length of cutting, driving system adopt multi multi-control like startstart-over etc.
2.This machine has electric and pneumatic, easy operating, high precision in cutting, working stable, low low-noisenoise.
3. Frequency control motor, automatic counting, alarm and automatic automatic-stop, magnetic powder tension control.
4. Vertical multi multi-section cutting, waste edge is blowin g by fan automatically.
| Model | HQJ-800 | HQJ-1100 | HQJ-1400 |
| Jumbo Roll Diameter | Ø 800mm | Ø 1400mm | Ø1400mm |
| Max. Cutting Width | 800mm | 1100mm | 1400mm |
| motor | three-phase sevro motor | three-phase sevro motor | three-phase sevro motor |
| Precision | ±0.2mm | ±0.2mm | ±0.2mm |
| Tension cotrol (auto) | magnetic powder | magnetic powder | magnetic powder |
| computerized | yes | yes | yes |
| Max Cutting Speed | 130times/min | 200 times/min | 200 times/min |
| Power | 7kw | 6.5KW | 8.5KW |
| Weight | 1400kg | 3200KG | 3400KG |
| Overall dimension | 3060*1690*1900mm | 5400 x1900 x1400 mm | 5400 x 2200 x 1400 mm |
| Specification | Num | Remark |
| Spare parts | ||
| Top round blade | 3 pics | extra |
| Cross cutter | 1 set | extra |
| Electrical parts | ||
| Switch | 2 unit | |
| Hall switch | 1 unit | |
| Tension control plate | 1 unit | |
| Air parts | ||
| Air joint | 1 unit | |
| adjust valve | 1 unit | |
| Oil cup | 1 unit | |
| air gun | 1 unit | |
| Tool box | ||
| monkey wrench | 1 unit | |
| 10-12 hatch wrench | 1 unit | |
| Inner hexagonal wrench | 1 unit | |
| double head wrench | 1 unit | 12×14 |
| double head wrench | 1 unit | 14×17 |
| double head wrench | 1 unit | 22×24 |
| cushion of machine | 10 unit | |
| Operation manual | 1 |
| Package details | wooden case/China price automatic grease paper sandwich a1 a3 a4 size copy paper roll to sheet cutting machine with wax paper |
| Package size | 18cbm |
| Gross weight | 3600kg |
