Quick Details
-
Return Force (kN):
-
25000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
kewosen
-
Year:
-
2024
-
Voltage:
-
according for your local voltage
-
Weight (T):
-
44 T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
New Product
-
Product name:
-
Metal Door Skin Embossing Hydraulic Press Machine
-
Power Source:
-
Hydraulic
-
Keyword:
-
metal door stamping machine
-
Function:
-
Metal Processing
-
Application:
-
Auto Parts
-
Type:
-
Four Columns
-
Usage:
-
Metal Press
-
Name:
-
large hydraulic press machine
-
Color:
-
Costomized
Quick Details
-
Machine Type:
-
Steel wood door embossing machine
-
Slide Stroke (mm):
-
400
-
Ejector Force (kN):
-
300
-
Return Force (kN):
-
25000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
kewosen
-
Year:
-
2024
-
Voltage:
-
according for your local voltage
-
Weight (T):
-
44 T
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
New Product
-
Product name:
-
Metal Door Skin Embossing Hydraulic Press Machine
-
Power Source:
-
Hydraulic
-
Keyword:
-
metal door stamping machine
-
Function:
-
Metal Processing
-
Application:
-
Auto Parts
-
Type:
-
Four Columns
-
Usage:
-
Metal Press
-
Name:
-
large hydraulic press machine
-
Color:
-
Costomized

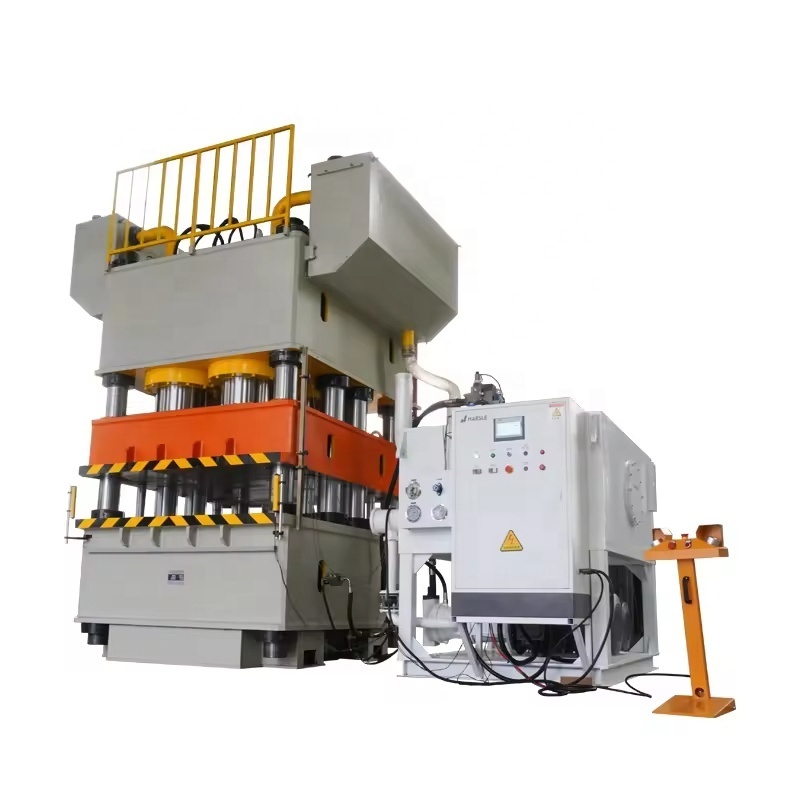

2500 tons steel wood door embossing machine
Product Description
Steel and wooden door embossing machine, also known as anti-theft door embossing hydraulic press, anti-theft door embossing machine, stainless steel facade embossing machine, door panel embossing machine, large iron door embossing machine, etc. major equipment. The single-acting/double-acting steel and wooden door embossing machine produced by Jiangsu Kewosen Machinery Technology Co., Ltd. adopts the structure of six cylinders, eight columns and three beams, equipped with PLC and servo system, and has three operating modes of automatic/semi-automatic/manual. Touch screen setting adjustment. Among them, the YQ78 double-action steel and wooden door embossing machine, the worktable is equipped with a large-size hydraulic pad and a multi-point ejection device, which realizes double-action pressing and makes the embossing clearer.
Specification
|
Project
|
Unit
|
2500 T
|
3000T
|
3600 T
|
4500T
|
5000 T
|
6000T
|
|
Normal Force
|
KN
|
24000
|
30000
|
36000
|
45000
|
50000
|
60000
|
|
Return force
|
KN
|
630x2
|
630x2
|
630x2
|
630x2
|
630x2
|
1000x2
|
|
Stroke
|
mm
|
400
|
400
|
400
|
400
|
400
|
400
|
|
Return stroke
|
mm
|
450
|
450
|
450
|
450
|
450
|
450
|
|
Opening height
|
mm
|
500
|
500
|
500
|
500
|
500
|
500
|
|
Descend speed
|
mm/s
|
120
|
150
|
150
|
150
|
150
|
150
|
|
Working speed
|
mm/s
|
5--10
|
5-10
|
5--10
|
5--10
|
5--10
|
5--10
|
|
Return Speed
|
mm/s
|
80
|
80
|
80
|
80
|
80
|
80
|
|
Table Size
|
mm
|
1500x2500
|
1500x2500
|
1500x2500
|
1580x2550
|
1900x3000
|
2200x3500
|
|
Motor Power
|
KW
|
22x2
|
22x2
|
32
|
30x2
|
22x3
|
30x3
|
Details display
The parts of the machine are of reliable quality and durable
production products
Customize the corresponding mold according to your pattern requirements, any pattern can be pressed
Packing & Delivery
All machines are packed in wood to ensure safety during transportation
