Quick Details
-
Welding Mode:
-
Tig/Mig/MAG/SAW(optional)
-
Welding Diameter:
-
80mm
-
Dimensions:
-
245*520*290mm
-
Use:
-
Tank Seam Welding
-
Voltage:
-
220V
-
Weight (KG):
-
10.4 KG
-
Power (kW):
-
4
-
Product name:
-
Tank welding machine
-
Application:
-
Tank construction
-
Working mode:
-
Auto Seam Welder
-
Welding Method:
-
MAG Welding
-
COLOR:
-
CUSTOMER
-
Welding Material:
-
Carbon Steel Stainless Steel Aluminum
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WINCOO
-
Forming Time:
-
Standard
-
Welding Mode:
-
Tig/Mig/MAG/SAW(optional)
-
Welding Diameter:
-
80mm
-
Dimensions:
-
245*520*290mm
-
Use:
-
Tank Seam Welding
-
Voltage:
-
220V
-
Weight (KG):
-
10.4 KG
-
Power (kW):
-
4
-
Product name:
-
Tank welding machine
-
Application:
-
Tank construction
-
Working mode:
-
Auto Seam Welder
-
Welding Method:
-
MAG Welding
-
COLOR:
-
CUSTOMER
-
Welding Material:
-
Carbon Steel Stainless Steel Aluminum
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

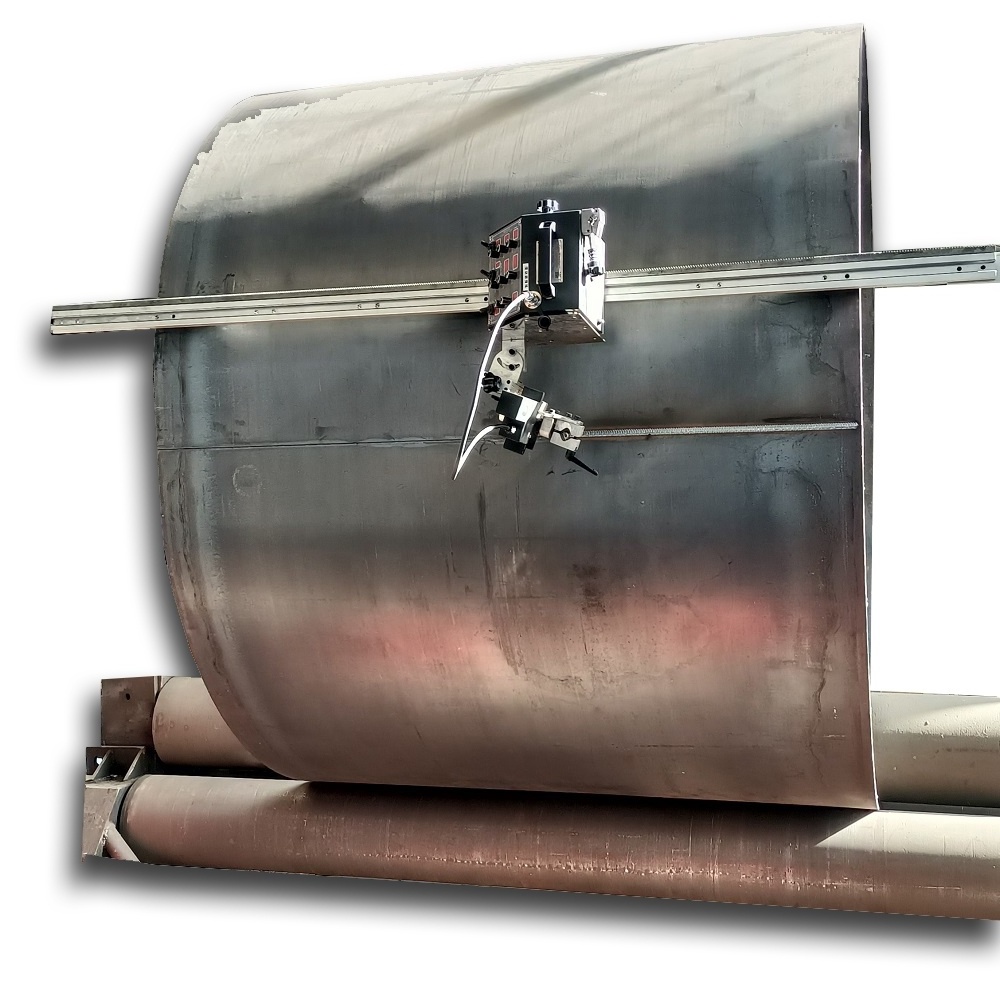

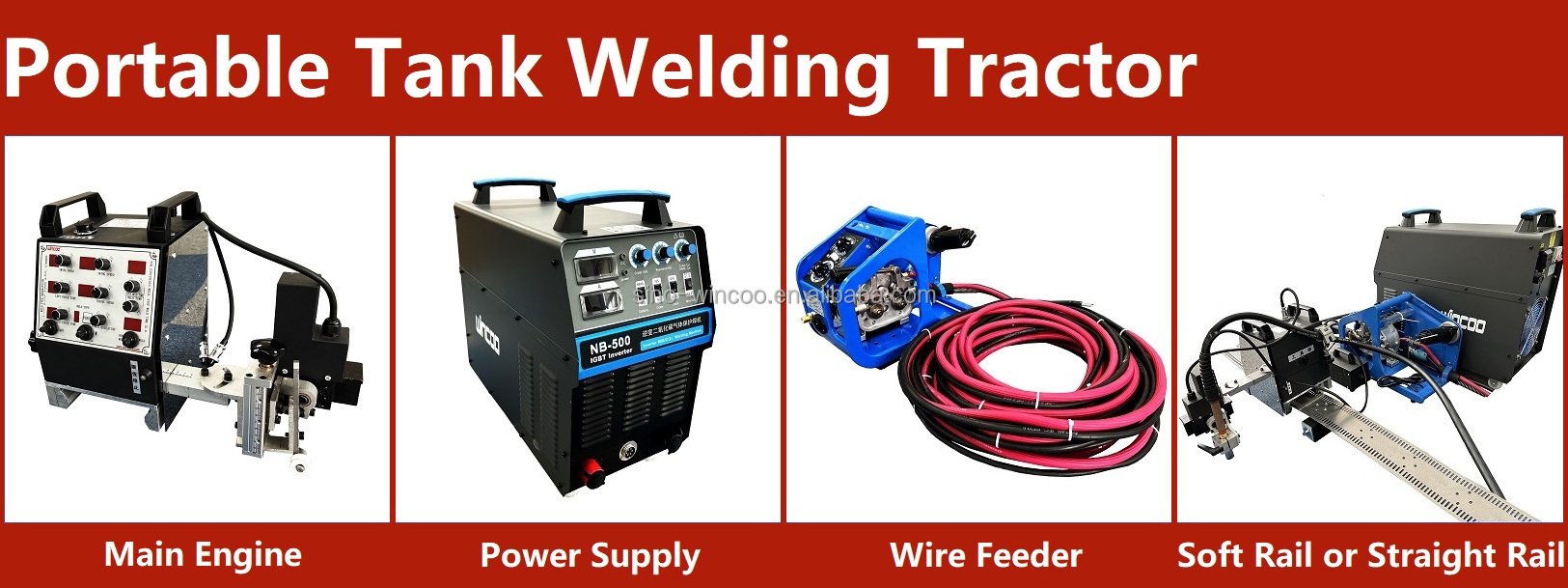

A simple, inexpensive and easy to use straight or flexible rail welder for tank welding.
|
Reference Product Parameter
|
|
|
|
|||
|
Items
|
Parameter
|
|
Notes
|
|||
|
|
Straight rail type
|
Soft rail type
|
|
|||
|
External power source
|
AC 220V 50/60 Hz
|
|
Three-hole
|
|||
|
Working power source
|
AC 20V
|
|
Use of each driver
|
|||
|
Dimensions
|
245*520*280cm
|
245*520*290cm
|
Length*width*height
|
|||
|
Weight
|
8.6 kg
|
10.4 kg
|
Main host
|
|||
|
Track type
|
Linear motion guide
|
Self-aligning flexible slide rails
|
|
|||
|
Drive mode
|
Gear drive
|
Sprocket drive
|
|
|||
|
Welding speed
|
0~1650mm/min
|
|
Fastest
|
|||
|
The thinnest adsorption plate thickness
|
3mm
|
|
Magnetically attractive metal
|
|||
|
Welding gun adjustment range
|
65mm
|
|
Inching for up and down
|
|||
|
|
80mm
|
|
Inching for left and right
|
|||
|
|
+ -60°
|
|
Swinging angle
|
|||
|
|
+ -25°
|
|
Marching Angle
|
|||
|
|
Stop left, stop right
|
|
Swinging form
|
|||
|
Operating function
|
0-100mm/min
|
|
Swinging speed
|
|||
|
|
0-2.5s
|
|
Left and right residence time
|
|||
|
|
+-14mm
|
|
Swinging width
|
|||
|
|
+-5mm
|
|
Center for compensation
|
|||
