Quick Details
-
Dimensions(L*W*H):
-
290*165*150
-
Weight:
-
540 KG
-
Product name:
-

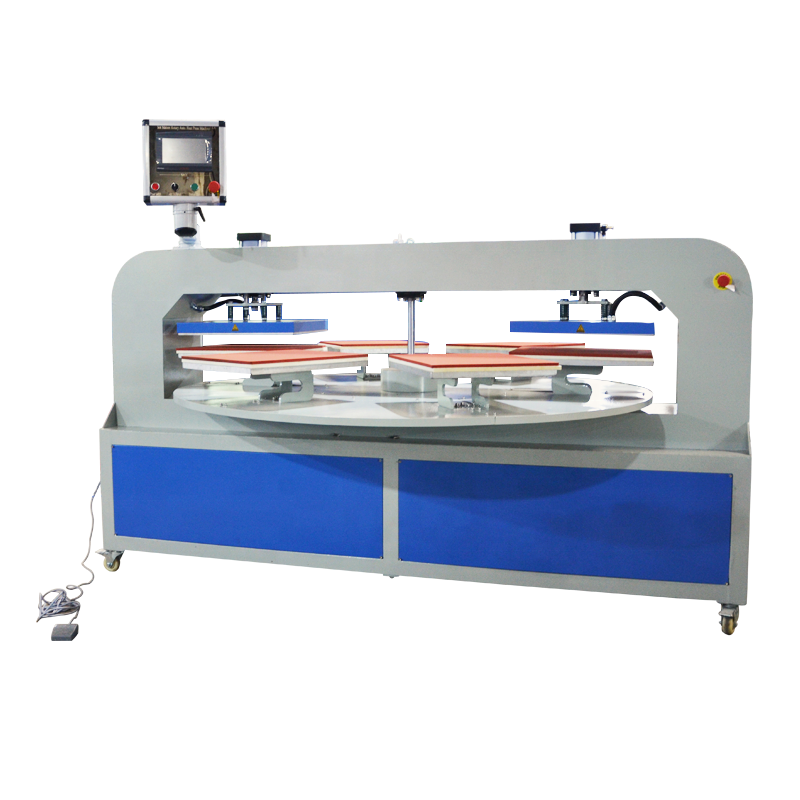

Dual heater platen 6 worktable rotary heat transfer machine
-
Machine Type:
-
Automatic operation
-
Function:
-
fabric cut piece,t shirt,hoodies,towel,bags
-
MOQ:
-
1 sets
-
Printing area:
-
40x60cm,38x38cm,40x50cm,50x60cm
-
Temperature Range:
-
0-399℃
-
Press time range:
-
0-999s
-
Controller:
-
PLC touch screen panel
-
Heating plates:
-
Electric heater pipe
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
220V/110V
-
Dimensions(L*W*H):
-
290*165*150
-
Weight:
-
540 KG
-
Product name:
-
Dual heater platen 6 worktable rotary heat transfer machine
-
Machine Type:
-
Automatic operation
-
Function:
-
fabric cut piece,t shirt,hoodies,towel,bags
-
MOQ:
-
1 sets
-
Printing area:
-
40x60cm,38x38cm,40x50cm,50x60cm
-
Temperature Range:
-
0-399℃
-
Press time range:
-
0-999s
-
Controller:
-
PLC touch screen panel
-
Heating plates:
-
Electric heater pipe
Gaoshang intelligent touch screen panel automatic dual heater cut piece digital printing heat press machine
Parameter:
|
Work table(cm) |
38*38 |
40*50 |
40*60 |
50*60 |
50*70 |
|
Voltage (V) |
220 |
220 |
110/220 |
110/220 |
110/220 |
|
Power (W) |
2.2 |
3 |
3.8 |
3.8 |
4.5 |
|
Time Range(S) |
0-999 |
0-999 |
0-999 |
0-999 |
0-999 |
|
Temperature( ℃ ) |
0-399 |
0-399 |
0-399 |
0-399 |
0-399 |
|
Pressure(kg/cm2) |
0-8 |
0-8 |
0-8 |
0-8 |
0-8 |
|
Packing size(cm) |
250*95*155 |
270*95*155 |
280*98*155 |
295*98*1455 |
312*98*155 |
Machine Features:
1. Intelligent touch screen digital temp.&time control displayer in whole panel.
2.The radiation pipe and the heater plate in whole,safe,durable,and distribute heat averagely.
3. Free to adjust the pressure,widely used in the factory assembly line operation.
4. Adopt IC board, touch buttons, electromagnetic switch and ON/OFF timer, providing elegant appearance and high reliability.
5. 6 large size aluminum worktable and double heater platen rotary,automatic rotating movement.
6. Automatic control,even and stable pressure (pressure up to 8KG/CM2)
7. Automatic/Manual mode,foot pedal start for option .
9. Imported teflon sheet covers the heating platens,its surface with anti-crushing, safe and rationalized.
10. Adjustable rotating speed,you can adjust the speed as your required.
11. V shape bracket is support the worktable,finished t-shirt can be put.
