16/18/24L Class B Otoclav BIOBASE Laboratory Hospital Pressure Steam Sterilizer Autoclave

16/18/24L Class B Otoclav BIOBASE Laboratory Hospital Pressure Steam Sterilizer Autoclave

FOB Reference Price: Get Latest Price

≥1 Sets

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: BKM-Z16B

Place of Origin:: Shandong, China

Product name:: Table Top Autoclave Class B Series

Model:: BKM-Z16B

Capacity:: 16L

Sterilization Class:: Class B (according to EN 13060 standard)

Sterilization Temp.:: 121℃,134℃

Water tank capacity:: 4L

Water Supply System:: Build-in water tank, easy to clean

Water Consumption:: 0.16L~0.18L in one cycle

Noise:: <50dB

Power Supply:: 110/220V±10%, 60/50Hz

Quick Details

Warranty:: 3 years

After-sale Service:: Free spare parts

Brand Name:: BIOBASE

Model Number:: BKM-Z16B

Place of Origin:: Shandong, China

Product name:: Table Top Autoclave Class B Series

Model:: BKM-Z16B

Capacity:: 16L

Sterilization Class:: Class B (according to EN 13060 standard)

Sterilization Temp.:: 121℃,134℃

Water tank capacity:: 4L

Water Supply System:: Build-in water tank, easy to clean

Water Consumption:: 0.16L~0.18L in one cycle

Noise:: <50dB

Power Supply:: 110/220V±10%, 60/50Hz

Product introduction

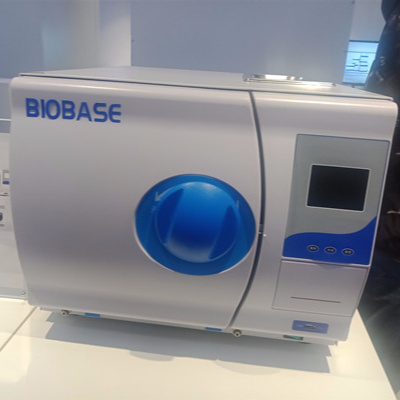

Table Top Autoclave Class B Series

BKM-ZB series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.

Features:

1. Build-in open type water tank
The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected with water.
2. High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.
3. Large LCD display for BKM-Z18/24B
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information.It is convenient for customers to observe the sterilizer running status.
4. Multiple program types
The system has various programs that include packed items, unpacked items, BD testing program, vacuum testing program and drying
function.
Custom program, rapid program and preheat function(for BKM-Z16B).

5. Standard USB port for BKM-Z18/24B
Users can store the sterilization data with USB disk.
6. Optional mini printer can be attached to record the process of sterilization.

Technical

Model	BKM-Z16B	BKM-Z18B	BKM-Z24B
Capacity	16L	18L	24L
Chamber Size(mm)	φ230*360	φ247*360	φ247*470
Sterilization Class	Class B (according toGB0646)
Sterilization Temp.	121℃,134℃
Special Program	HIV, HBV long-sterilization program	/
Drying System	Vacuum drying system
Display	LED display	LCD display
Testing System	B&D Test Vacuum Test Helix Test
Control Precision	Temperature: 1℃ Pressure: 0.1bar
Sterilization Data	BKM-Z16B:Printer(optional) BKM-Z18B/BKM-Z24B:USB(standard) and printer(optional)
Safety System	Hand lock door Pressure lock system Relief valve in case of over pressure Pressure or temperature over load protection Alarm for system failure, finish reminding, water level warning
Water Supply System	Build-in water tank easy to clean
WaterTankCapacity	2L	4L
Water Consumption	0.4L in one cycle	0.16L~0.18L in one cycle
Tray Holder	3 pcs SS trays on SS shelf
Chamber	SUS304 Max working pressure:2.3bar Min working pressure: -0.9bar Designtemperature: 140℃
Ambient Temp.	5～40℃
Noise	<50dB
Consumption	1800W	1950W	1950W
Power Supply	110/220V±10%,50/60Hz
External Size(WDH)mm	445550395	495600410	495700410
Packing Size(WDH)mm	550670500	610810590	610810590
Gross Weight(kg)	47	63	65
