Quick Details
-
Model Number:
-
CLW5310TQZZ3
-
Dimensions (L x W x H) (mm):
-
11310x2500x3200
-
Place of Origin:
-
Hubei, China
-
winch:
-
25T
-
Min lifting weight:
-
8T
-
max boom length:
-
12M
-
name:
-
HOWO 8X4 60 ton rotator tow truck for sale
-
Product name:
-
Car Towing Wrecker Truck
-
Chassis brand:
-
Dongfeng Sinotruk Faw Bei Ben Tow
-
Driving type:
-
Left Hand Drive
-
Type:
-
360 Rotation Tow Truck
-
Color:
-
White Yellow
-
Certificate:
-
ISO
Quick Details
-
Emission Standard:
-
Euro 3
-
Condition:
-
New
-
Brand Name:
-
CLW
-
Model Number:
-
CLW5310TQZZ3
-
Dimensions (L x W x H) (mm):
-
11310x2500x3200
-
Place of Origin:
-
Hubei, China
-
winch:
-
25T
-
Min lifting weight:
-
8T
-
max boom length:
-
12M
-
name:
-
HOWO 8X4 60 ton rotator tow truck for sale
-
Product name:
-
Car Towing Wrecker Truck
-
Chassis brand:
-
Dongfeng Sinotruk Faw Bei Ben Tow
-
Driving type:
-
Left Hand Drive
-
Type:
-
360 Rotation Tow Truck
-
Color:
-
White Yellow
-
Certificate:
-
ISO
HOWO 8X4 60 ton rotator tow truck for sale , fixed with HOWO 8X4 heavy duty chassis , equipped with :
Boom – not a specific type, but a piece of equipment used on many types of tow truck; an adjustable boom winch aids vehicle recovery from a ditch , culvert , over an embankment , or any place the vehicle cannot be safely backed-up to.
Hook and chain (also known as a "sling" or "belt lift") – chains are looped around the vehicle frame or axle, which is drawn aloft by a boom winch to rest against a pair of heavy rubberized mats so the customer's vehicle can be towed on its other axle. Slings are not used much today because they can scratch the bumpers of cars. But they are sometimes used for towing vehicles that have been in an accident or have one or two of the front or rear wheels missing or for pickup trucks and other vehicles that have steel bumpers
Wheel-Lift (or spectacle lift) – evolved from the hook and chain technology to produce a large metal yoke that can be fitted under the front or rear wheels to cradle them, drawing the front or rear end of the vehicle clear of the ground by a pneumatic or hydraulic hoist so it can be towed. This apparatus generally picks up the drive wheels of the vehicle (i.e. the front wheels if it is front wheel drive, the rear wheels if it is rear wheel drive) touching only the tires. The wheel lift was designed by Frank Casteel and Felming Cannon Jr. The name spectacle lift is common in Europe; the cradle resembles a pair of squared spectacles (eyeglasses).
.
specification of HOWO 8X4 60 ton rotator tow truck for sale
| Vehicle model | CLW5310TQZZ3 | |
| Chassis parameter | ||
| Whole vehicle main dimensions | overall dimension(LxWxH)mm | 11460×2500×3270 |
| Drive system | 8x4 | |
| wheel base(mm) | 1800+4600+1350 | |
| Weight data | curb weight(kg) | 24870 |
| GVW | 31000 | |
| Whole vehicle main performance | Max speed(km/h) | 93 |
| Engine | Engine | WD615.95E |
| displacement | 9726mL | |
| Max output | 336HP | |
| Max torque/speed | 1350N.m@1200-1500r/min | |
| Gearbox | gear box | HW19710, 12 speed,12 Forward,2 reserve |
| Rear axle | Hc16 ,Speed ratio:4.42,4.8,5.73 | |
| Steering gear | ZF8098 | |
| Clutch | Single-plate dry diaphragm-spring clutch, diameter 430 mm, hydraulically operating with air assistance | |
| Cabin | Flat top ,with one berth , air conditioner | |
| tyre size | 12.00-20 with one spar tyre | |
| Special parts parameter | ||
| Tow Function | Max tow capacity | 80Ton |
| Max tow lifting capacity | 38Ton | |
| (shortest arm position) | ||
| Max tow lifting capacity | 5.5Ton | |
| (longest arm position) | ||
| Max Lift weight | 18Ton | |
| Max lift height | 6.5M | |
| Crane | Max lifting weight | 50T |
| Max lifting hegiht | 12M | |
| Telescopic crane boom | 6M | |
| Accessories | Three-section six-sided boom, three-support arm, split-type compartment, bilateral linkage operation device, a set of remote control devices, front bumper with counterweight, three work lights, two 15 tons hydraulic Hoisting, 45 meters steel wire rope, diameter 18MM, four sets of steel fork, a set of steel hanging lug fork, a fetch device, long row of project lights, auxiliary lights set, auxiliary tracheal set | |

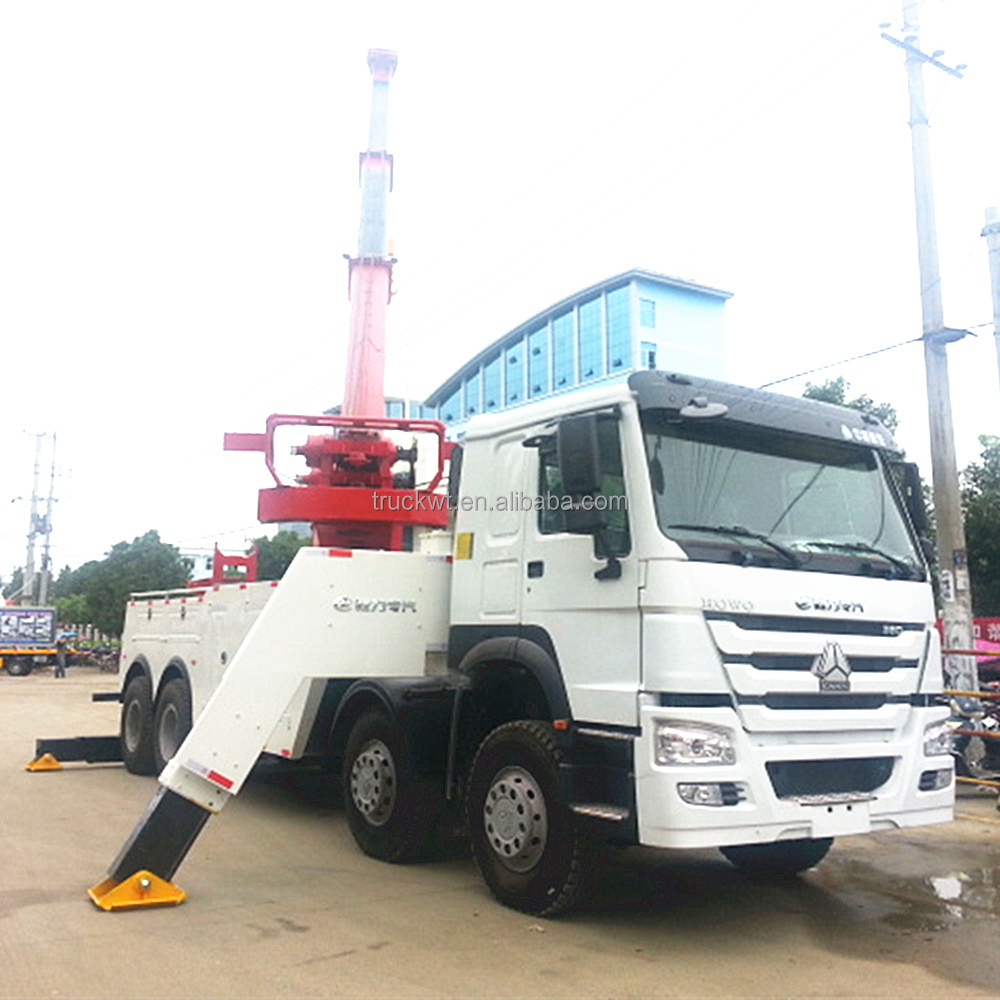

Photo of HOWO 8X4 60 ton rotator tow truck for sale:
Support arms
Outtriger :
360 degree rotator crane
