Quick Details
-
Max. Loading Capacity:
-
2000
-
Weight (KG):
-
650 KG
-
Place of Origin:
-
China
-
Brand Name:
-
SINA
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
2050*1330*2330mm
-
Power (kW):
-
3.6 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Used for goods:
-
cream, gel, lotion, ointment
-
Stirrer type:
-
Emulsifier
-
Heating method:
-
Steam/Electric
-
Control:
-
Button or PLC
-
Weight:
-
215 Kg(Net Weight)
-
Keyword:
-
chemical mixing equipment
-
Application scope:
-
chemical
Quick Details
-
Barrel Volume (L):
-
2000 L
-
Max. Loading Volume (L):
-
2000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 3000 r.p.m
-
Max. Loading Capacity:
-
2000
-
Weight (KG):
-
650 KG
-
Place of Origin:
-
China
-
Brand Name:
-
SINA
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
2050*1330*2330mm
-
Power (kW):
-
3.6 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Used for goods:
-
cream, gel, lotion, ointment
-
Stirrer type:
-
Emulsifier
-
Heating method:
-
Steam/Electric
-
Control:
-
Button or PLC
-
Weight:
-
215 Kg(Net Weight)
-
Keyword:
-
chemical mixing equipment
-
Application scope:
-
chemical

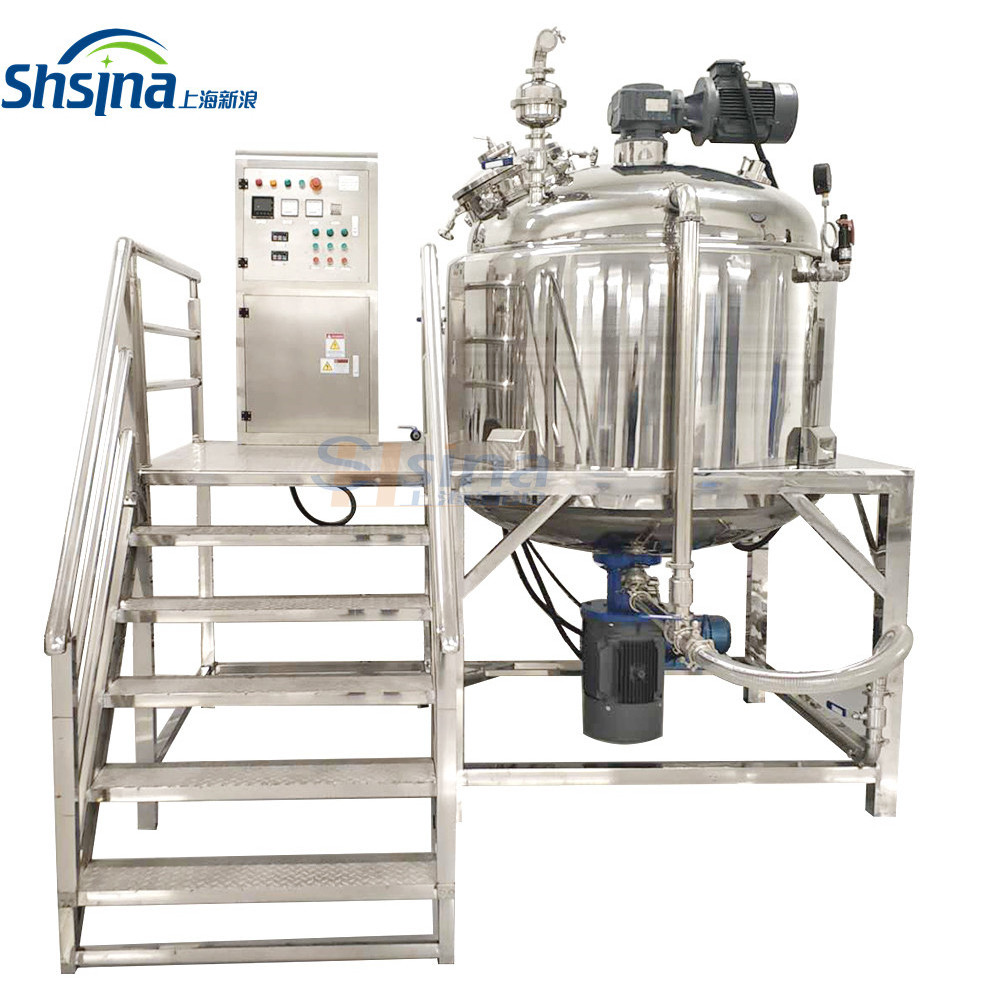

1, Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2, Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3, Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
4,Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5,Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min
BLENDER SERIES
APPILICATION
| Model | Effective Capacity | Emulsify | Agitator | Outside Dimension | The merit rate | ||||||
| KW | R/min | KW | r/min | Length | Width | Height | Maxh |
Electric Heating |
Sream Hearting | ||
| SME-20 | 20 | 0.75 | 0-3000 | 0.37 | 0-40 | 1800 | 1600 | 1850 | 2700 | 9 | 3 |
| SME-50 | 50 | 2.2 | 0-3000 | 0.37 | 0-40 | 2700 | 2000 | 2015 | 2700 | 25 | 5 |
| SME-100 | 100 | 3 | 0-3000 | 1.5 | 0-40 | 2920 | 2120 | 2200 | 3000 | 27 | 9 |
| SME-150 | 150 | 3 | 0-3000 | 1.5 | 0-40 | 3110 | 2120 | 2200 | 3100 | 27 | 9 |
| SME-200 | 200 | 4 | 0-3000 | 1.5 | 0-40 | 3150 | 2200 | 2200 | 3100 | 40 | 12 |
| SME-350 | 350 | 4 | 0-3000 | 2.2 | 0-40 | 3650 | 2650 | 2550 | 3600 | 50 | 16 |
| SME-500 | 500 | 5.5 | 0-3000 | 2.2 | 0-40 | 3970 | 2800 | 2700 | 3950 | 50 | 16 |
| SME-1000 | 1000 | 11 | 0-3000 | 4 | 0-40 | 3900 | 3400 | 3150 | 4550 | 100 | 30 |
| SME-2000 | 2000 | 15 | 0-3000 | 7.5 | 0-40 | 4850 | 4300 | 3600 | No rise and fall | 120 | 50 |
