- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
50L-200bar Helium Cylinder
-
Brand Name:
-
SEFIC
-
Item Name:
-
50L-200bar Helium Cylinder
-
Water Capacity:
-
50L
-
Outside Diameter:
-
232mm
-
Wall Thickness:
-
5.4mm
-
Height:
-
1425mm
-
Weight:
-
52kg
-
Working Pressure:
-
200bar
-
Test Pressure:
-
300bar
-
Certification:
-
TPED
-
Application:
-
Helium Cylinder For Balloon Inflatable
Quick Details
-
Material:
-
Steel
-
Use:
-
Helium
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
50L-200bar Helium Cylinder
-
Brand Name:
-
SEFIC
-
Item Name:
-
50L-200bar Helium Cylinder
-
Water Capacity:
-
50L
-
Outside Diameter:
-
232mm
-
Wall Thickness:
-
5.4mm
-
Height:
-
1425mm
-
Weight:
-
52kg
-
Working Pressure:
-
200bar
-
Test Pressure:
-
300bar
-
Certification:
-
TPED
-
Application:
-
Helium Cylinder For Balloon Inflatable
SEFlC is a professional manufacturer of gas cylinder and gas equipment. We have more than 30-year experience and have good reputation in this field.
Our product includes GB5099,ISO9809-1,ISO9809-3,DOT3AA,EN ISO9809-1, ISO3807, DOT-8AL, ...standard, has passed a number of certifications ,our products have won praise from customers worldwide.
The industrial gas cylinders are all made by high quality seamless steel pipe,consistent height, smoothly painting, and excellent properties, which is widely used for INDUSTRIAL & MEDICAL.
We can offer 1L- 120L cylinders as your required.
Specification:ISO9809-1 Gas Cylinder
| Type |
Outside
diameter (mm) |
Water
capacity (L) |
Height(mm) |
Weight
(kg) |
Design wall
Thickness (mm) |
Service pressure
(MPa) |
Test pressure
(MPa) |
Material |
| ISO232-38.0-20 | 232 | 38 | 1110 | 41 | 5.4 | 20 | 30 | 34CrMo4 |
| ISO232-40.0-20 | 40 | 1160 | 43 | |||||
| ISO232-42.0-20 | 42 | 1215 | 45 | |||||
| ISO232-45.0-20 | 45 | 1295 | 47 | |||||
| ISO232-46.0-20 | 46 | 1320 | 48 | |||||
| ISO232-47.0-20 | 47 | 1345 | 49 | |||||
| ISO232-50.0-20 | 50 | 1425 | 52 | |||||
| ISO232-52.0-20 | 52 | 1475 | 54 |

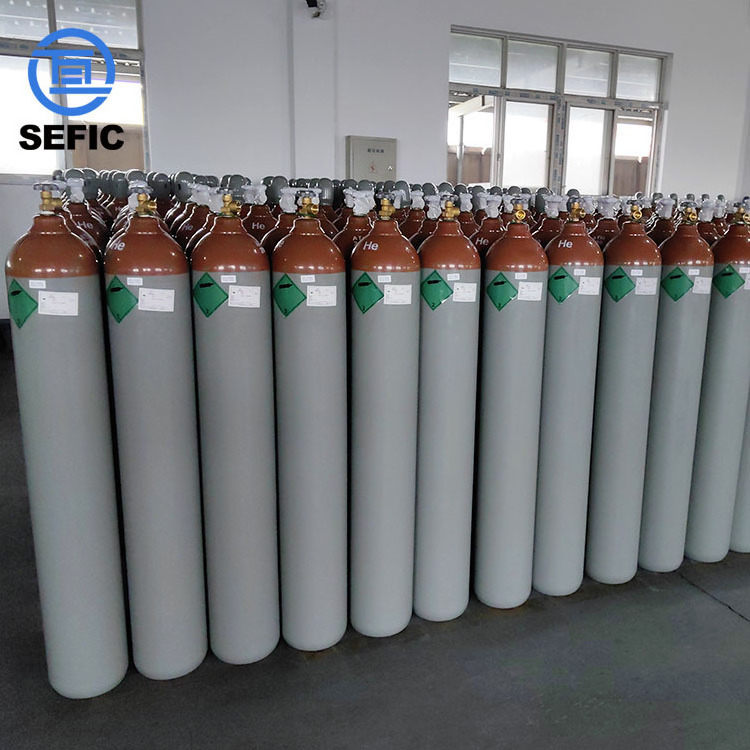

Excellent Quality Helium Gas Cylinder
Clear PI Mark
Excellent Quality Valve
High Production Capacity
