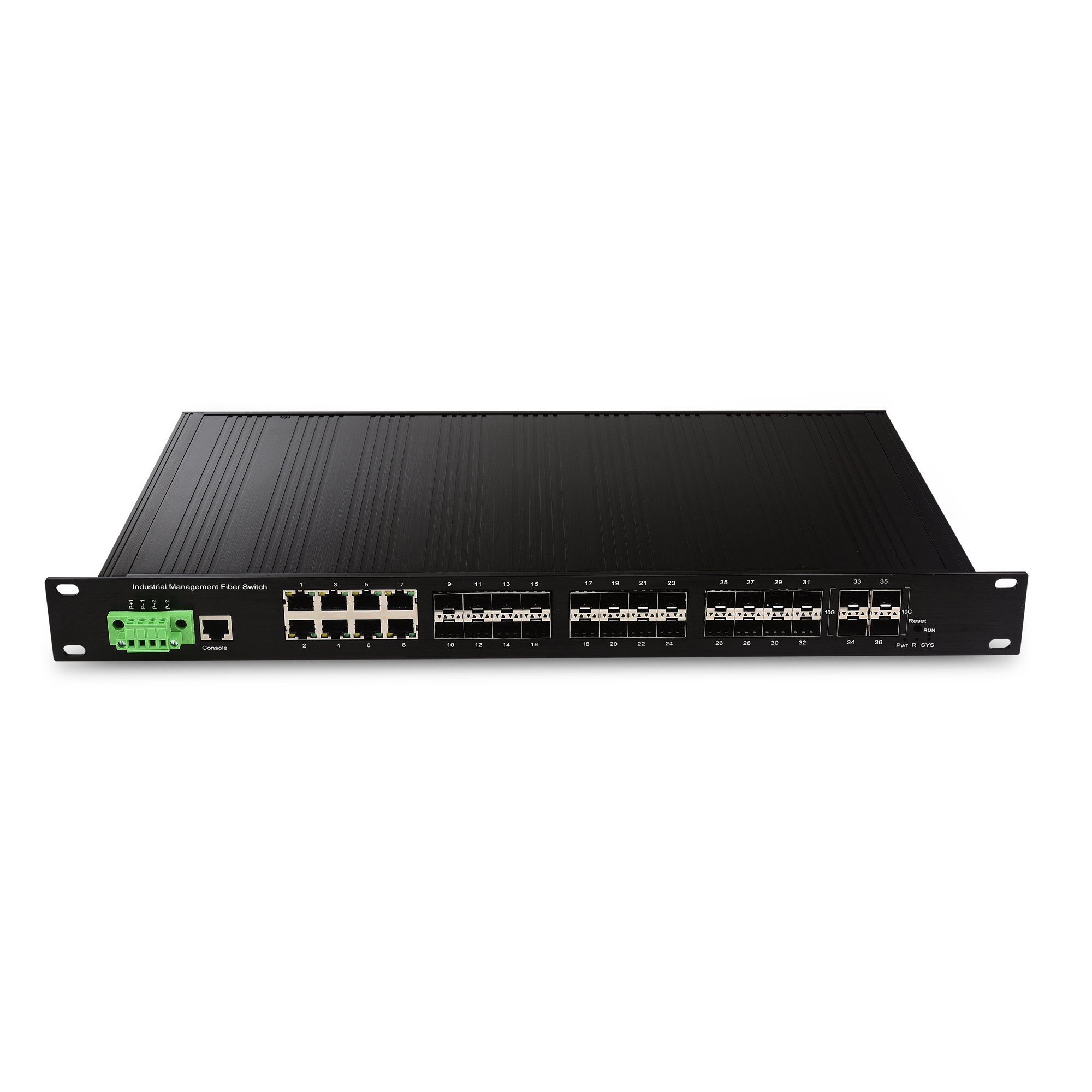

Din rail layer 3 industrial 24 port gigabit SFP optical port slots +8 10/100/1000Base-T adaptive RJ45 port industrial switch

Model

24 gigabit SFP optical port slots +8 10/100/1000Base-T adaptive RJ45 ports +4 1G/10G SFP slots

Product

Industrial L3 Managed Switch

Console Port

1

Reset Key

1

CPU

500M

DDR

1G DDR3 1333MHz

Buffer

Fully integrated 4.1 M packet buffer

FLASH

16M

RAM

128M

Bandwidth

56Gbps

Packet Forwarding

14.44Mpps

MAC

8K

Environment Detection

1 group of input detection of environment temperature and humidity

Function Interface(only for enhancement model)

1 switch for quick formation of ring network
2 group of independent power input, having under- and over-voltage protection
1 group of wide voltage alarm input at a range of DC5-57V
1 group of alarm output and relay output, can define various custom condition trigger
1 group of environmental temperature and humidity detection, can make real-time monitoring of the environment
Real-time system of crucial voltage monitoring and alarm output function
Real-time system temperature,environment temperature,humidity and alarm output function
Real-time detection and display of input voltage,current,power
Multiple custom port control and intelligent management

Network protocol

IEEE 802.3x
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q 、IEEE 802.3q/p
IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S
IEEE 802.3z 1000BASE-X
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
EPPS ring network protocol
EAPS ring network protocol

Port Specification

1-8 port 10/100/1000BaseT（X）auto detection，AUTO-MDI/MDI-X

Transmission Mode

Store and Forward(full wirespeed)

Transmission Distance

10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(≤100 meter)
1000BASE-TX ： Cat6 or later UTP(≤1000 meter)
1000BASE-SX:62.5μm/50μm MMF(2m~550m)
1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
BIDI supported

Power Consumption

Standby power consumption≤5W;
Network Full-load power consumption≤15W；
Full load power consumption≤360W

Operating Temperature/Humidity

-40～+80°C；10%～90% RH No coagulation

Storage Temperature/Humidity

-40～+85°C；5%～95% RH No coagulation

Lightning Protection Level

6KV 8/20us；8KV ESD
IP40

Product Size(L*W*H)

160*130*45mm

N.W(kg)

1kg

Installation

DIN guide rail type(additional wall hangers)

Certificate

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Software Function

The followings are main functions not included in all the functions.Please contact with us for more other information! We support
software development for customization requirement.

Monitoring Platform

Quick formation of ring network
System temperature monitoring and alarm
External temperature and humidity monitoring and alarm
Input power monitoring and alarm
System each channel key voltage monitoring and alarm
System total current,total power monitoring and alarm
All-Port network monitoring and alarm
Support one group input and output signal monitoring and alarm

Network Protocol

IEEE 802.3x
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q、IEEE 802.3q/p
IEEE 802.1w、IEEE 802.1d、IEEE 802.1S、IEEE 802.1X

MAC

Support 16K MAC address,auto aging and learning

VLAN Configuration

Support port-based VLAN
Up to 4096 VLANs
Support Voice VLAN, can configure Qos for voice data
802.1Q

Spanning Tree

STP(Spanning tree protocol)
RSTP/MSTP(Rapid spanning tree protocol)
EPPS/EAPS(Ring network protocol)
802.1x

Port Aggregation

Support 8 groups of aggregation, each group support up to 8 ports;

Port Mirroring

Support many-to-one port mirroring

Loop Guard

Support loop protection, real-time detection, quick alram, concise location, Intelligent blocking, automatic recovery

Port Isolation

Support downlink ports isolate from each other and communicate with uplink port as well

Flow Control

Half duplex based on Back pressure;
Full duplex based on PAUSE frame

Speed Limitation

Bandwidth management based on port input and output

Multicast Control

IGMPv1/2/3 and MLDv1/2 Snooping
GMRP protocol registration
Multicast address management, multicast VLAN, multicast routing port, static multicast address

DHCP

DHCP Snooping

Storm Suppression

Support unknown unicast, multicast , unknown multicast, broadcast type storm suppression
Storm suppression based on bandwidth adjustment and storm filtering

Security

Support User port+IP address+MAC address
ACL based on IP, MAC
Support security properties of number of MAC address based on port

QOS

802.1p port queue priority algorithm
Cos/Tos,QOS remark
WRR(Weighted Round Robin), weighted priority rotation algorithm
WRR、SP、WFQ priority scheduling modes

Cable Sequence

Auto-MDIX; auto detection on straight-through and cross-over cable

Negotiation Mode

Port support auto negotiation function(self-negotiation transmission rate and duplex mode)

System maintenance

Upgrade package upload
System log viewing
WEB recovery factory configuration

PoE Function
(only for PoE models)

Port switch
Schedule arrangement, timing switch
Voltage, current, power display
System total power display and configuration
PoEdog: support auto reset, timing reset and ip binding reset when device failed
Port power configuration(AF.AT HiPoE.BT)
Indication of over power
Port PoE type configuration(48V/24V power supplying)

Network Management

WEB interface management
CLI management based on Telnet、TFTIP、Console
SNMP V1/V2/V3 management
RMONV1/V2 management
RMON management
