Quick Details
-
Place of Origin:
-
CHINA,ZHEJIANG
-
Brand Name:
-
RORUN
-
Model Number:
-
RSB50A 600V
-
Rated Current:
-
50A/120A/175A/350A
-
Voltage rating:
-
600V
-
Material:
-
PC ( fire-retardant materials )
-
Temperature Range:
-
-20° To 105°
-
Contact barrel wire size:
-
6-12AWG 13.3-3.3m㎡
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
CHINA,ZHEJIANG
-
Brand Name:
-
RORUN
-
Model Number:
-
RSB50A 600V
-
Rated Current:
-
50A/120A/175A/350A
-
Voltage rating:
-
600V
-
Material:
-
PC ( fire-retardant materials )
-
Temperature Range:
-
-20° To 105°
-
Contact barrel wire size:
-
6-12AWG 13.3-3.3m㎡
Specification
|
Serial No.
|
Parameter
|
Parameter
|
|
1
|
Brand Name
|
RORUN
|
|
2
|
Product name
|

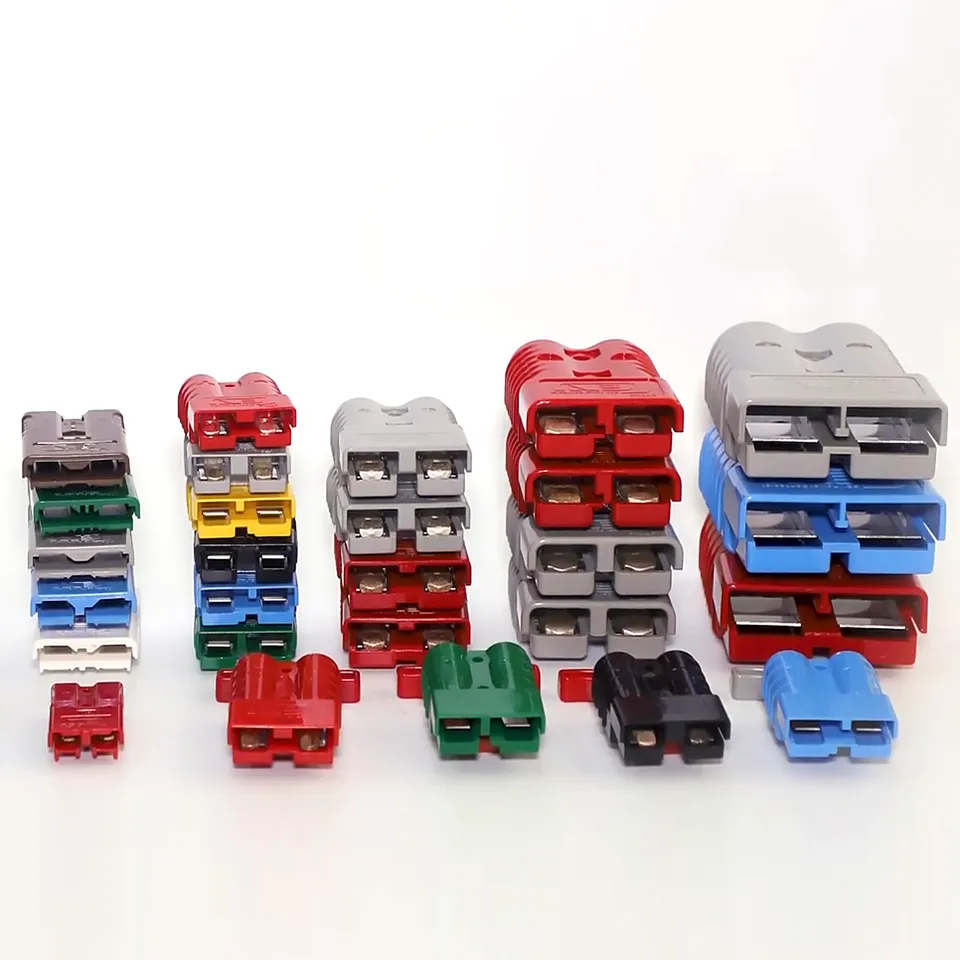

50A 600V AC/DC Power 2 pole Connector Plug Socket
|
|
3
|
Model Number
|
RSB50A
|
|
5
|
Connector type
|
Auto Connector&Adapter - Double Pole Plug/Socket
|
|
6
|
Color
|
Grey, Red, Black, Blue, Green, Yellow, or Customized as require!
|
|
7
|
Rated Current
|
50A
|
|
8
|
Rated Voltage
|
600V
|
|
9
|
Gauge
|
6~10 AWG
|
|
10
|
Gender
|
No Distinction (Genderless Design)
|
|
11
|
Insulation material
|
PC ( fire-retardant materials )
|
|
12
|
Fire Rated
|
UL94 V-0
|
Notice:
Plugs are neither male nor female, they are genderless.
For pairing, just buy any two connectors of the same color and amperage.
*Please allow 0-1cm error due to manual measurement.
*Due to the difference between different monitors, the picture may not reflect the actual color of the item. Hope you could kindly understand, Thank you!
