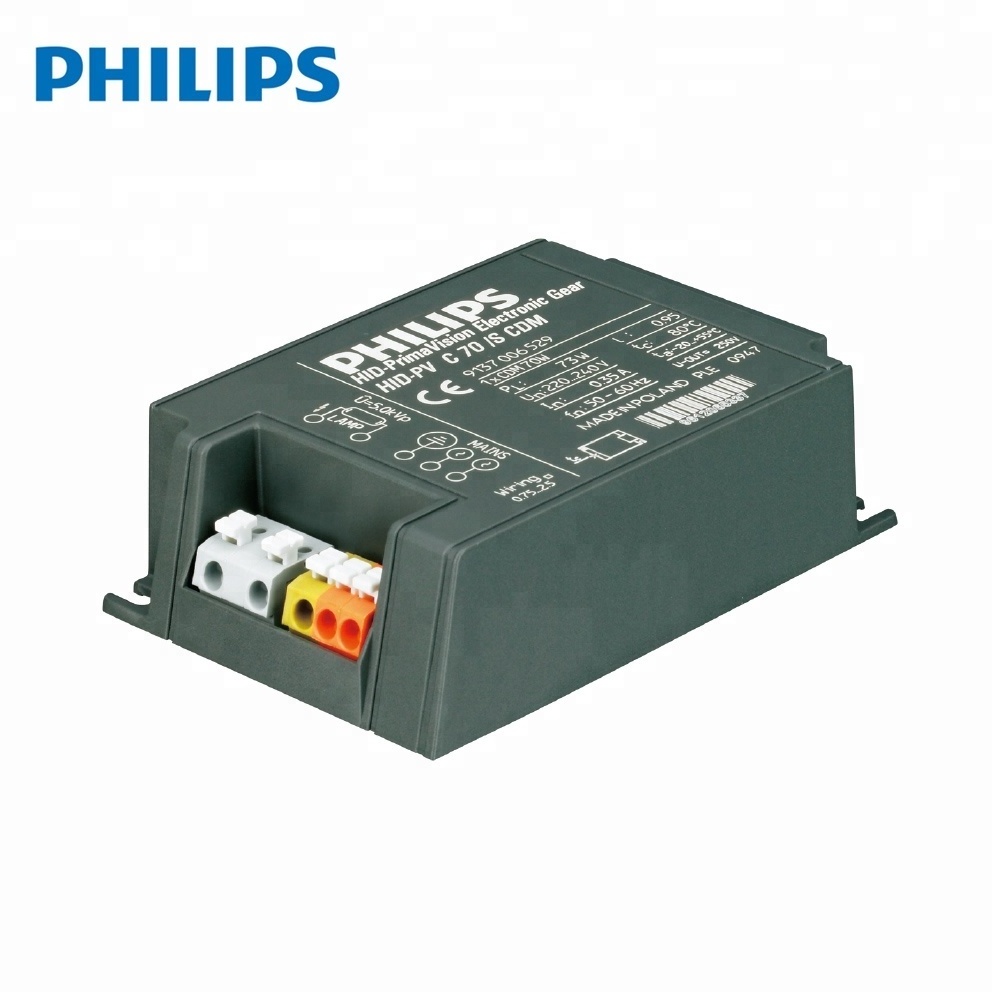

PHILIPS HID-PV C 70 _S CDM 220-240V 50_60Hz philips electronic ballast

HID-PV C 35 _C CDM 220-240V 50_60Hz

HID-PV C 70 _S CDM 220-240V 50_60Hz

HID-PV C 150 _S CDM 220-240V 50_60Hz

HID-PV E 70 _S CDM 220-240V 50_60Hz

High-quality, compact and lightweight HID electronic gear for optimal and reliable

performance of 20, 35, 50 and 70 W CDM lamps

Product data

General Information

Type version ng

Lamp type CDM

Number of lamps 1 piece/unit

Suitable for outdoor use No

Number of products on MCB (16 A type B) (nom.) 20

Automatic restart Yes

Operating and Electrical

Input voltage 220 to 240 V

Input frequency 50-60 Hz

Operating frequency (nom.) 0.14 kHz

Power factor 100% load (nom.) 0.95

Ignition voltage (max.) 4.0 kV

Ignition switch-off time (nom.) 18 min

Mains voltage performance (AC) -10%-+6%

Mains voltage safety (AC) -18%-+10%

Inrush current width 0.33 ms

Constant wattage deviation -3%/+3%

Power losses (nom.) 7.0 W

Inrush current peak (max.) 33 A

Wiring

Cable capacity output wires mutual (nom.) 100 pF

Cable length from device to lamp 1.5 m

Ballast contact wire cross section 0.50-2.50 mm²

Connector type Insert

System characteristics

Rated ballast-lamp power 70 W

Temperature

T ambient (max.) 50 °C

T ambient (min.) -20 °C

T storage (max.) 80 °C

T storage (min.) -25 °C

T case lifetime (nom.) 80 °C

T-Case maximum (max.) 80 °C
