Quick Details
-
Rated Voltage:
-
5KV
-
Tensile Strength:
-
Great
-
Product name:
-
3m double sides adhesive thermal pad cooling silicon
-
Color:
-
gray,blue or OEM
-
material:
-
silicone
-
thichkness:
-
0.30-14.0mm
-
Density:
-
2.85 g/cc
-
Usage:
-
For General Electronic Products heat dispassion
-
breakdown Voltage:
-
5000VAC /MM
-
MOQ:
-
1 Piece
-
Flammability Rating:
-
94V0
-
Thermal Conductivity:
-
1.0-15w/mk
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZZX
-
Model Number:
-
GP series
-
Rated Voltage:
-
5KV
-
Tensile Strength:
-
Great
-
Product name:
-
3m double sides adhesive thermal pad cooling silicon
-
Color:
-
gray,blue or OEM
-
material:
-
silicone
-
thichkness:
-
0.30-14.0mm
-
Density:
-
2.85 g/cc
-
Usage:
-
For General Electronic Products heat dispassion
-
breakdown Voltage:
-
5000VAC /MM
-
MOQ:
-
1 Piece
-
Flammability Rating:
-
94V0
-
Thermal Conductivity:
-
1.0-15w/mk

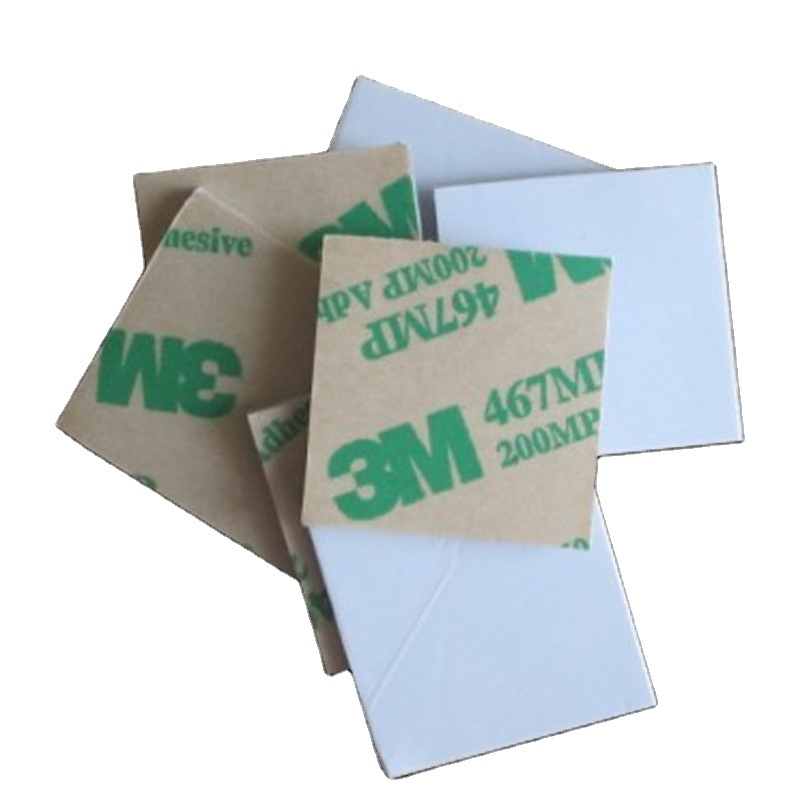

3m double sides adhesive thermal pad cooling silicon
|
Test Content |
Typical Value |
Test Method |
|
Model Number |
GP60 0 |
--- |
|
Color |
gray |
Visual |
|
Thickness |
0.30 - 10.0 mm |
ASTM D374 |
|
Specs |
200×400 mm |
ASTM D1204 |
|
Density |
3.28g/ cm 3 |
ASTM D792 |
|
Hardness |
50 Shore 00 |
ASTM D2240 |
|
Continuous Temp |
- 5 0 to 20 0℃ |
EN 344 |
|
Breakdown Voltage |
>5 KV/mm |
ASTM D149 |
|
Volume resistivity (Ω·cm) |
5.0 ×10 1 3 Ω.cm |
ASTM D527 |
|
Dielectric constant (1MHZ) |
4.5 |
ASTM D 150 |
|
UL Flammability Rating |
94 V0 |
UL-94 |
|
Thermal Conductivity |
6 . 0 W/m - k |
ASTM D5470 |
