Quick Details
-
Name:
-
CATV broadcasting 24 FTA DVB-S/-S2/-S2X tuner modulator
-
Application:
-
CATV
-
Tuner Input:
-
24 DVB-S/-S2/-S2X (DVB-T/-T2, DVB-C, ATSC, ISDB-T Optional) FTA
-
IP Input:
-
128 IP through GE1 over UDP and RTP protocol
-
ASI Input:
-
1 ASI, BNC interface
-
RF Output:
-
16 non-adjacent carriers DVB-C
-
RF performance index:
-
MER≥40db
-
IP output:
-
16 IP (MPTS) through GE2
-
Support:
-
16 groups multiplexing+16 groups scrambling +16 groups QAM modulating
-
system function:
-
Web management, Updates via web
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HP2416C
-
Name:
-
CATV broadcasting 24 FTA DVB-S/-S2/-S2X tuner modulator
-
Application:
-
CATV
-
Tuner Input:
-
24 DVB-S/-S2/-S2X (DVB-T/-T2, DVB-C, ATSC, ISDB-T Optional) FTA
-
IP Input:
-
128 IP through GE1 over UDP and RTP protocol
-
ASI Input:
-
1 ASI, BNC interface
-
RF Output:
-
16 non-adjacent carriers DVB-C
-
RF performance index:
-
MER≥40db
-
IP output:
-
16 IP (MPTS) through GE2
-
Support:
-
16 groups multiplexing+16 groups scrambling +16 groups QAM modulating
-
system function:
-
Web management, Updates via web
CATV broadcasting 24 FTA DVB-S/-S2/-S2X tuner to16 non-adjacent carriers output and 16 IP CATV QAM modulator
Product Description
Summary

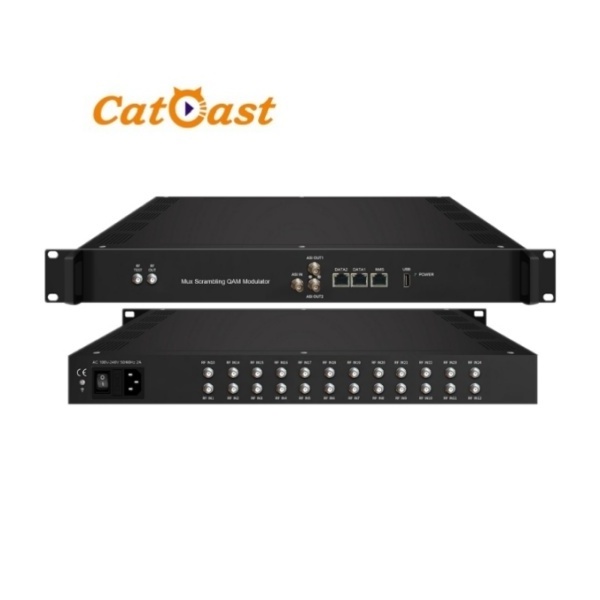

HP2416C is a high performance and cost-effective QAM modulator designed by Catcast. It supports 24 DVB-S/-S2/-S2X
(DVB-T/-T2,DVB-C, ATSC, ISDB-T Optional) FTA tuner input, maximum 128 IP input through GE1 and TS input for re-mux through ASI ports. After multiplexing, scrambling and QAM modulating, it gives 16 non-adjacent carriers output and 16 IP (MPTS) output through GE2.
HP2416C is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation CATV broadcasting system.
(DVB-T/-T2,DVB-C, ATSC, ISDB-T Optional) FTA tuner input, maximum 128 IP input through GE1 and TS input for re-mux through ASI ports. After multiplexing, scrambling and QAM modulating, it gives 16 non-adjacent carriers output and 16 IP (MPTS) output through GE2.
HP2416C is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation CATV broadcasting system.
Key Features
* 24DVB-S/-S2/-S2X (DVB-T/-T2, DVB-C, ATSC, ISDB-T Optional) FTA Tuner + 1 ASI input+128 IP input
through
GE1 over UDP and RTP protocol
* 16*DVB-C RF output
* 1 IP (MPTS) output over UDP and RTP/RTSP, as mirror of one carrier
* Support 16groups multiplexing+16 groups scrambling +16 groups QAM modulating
* Excellent RF output performance index, MER≥40db
* Support accurate PCR adjusting
* Support PSI/SI editing and inserting
* Support Web management,Updates via web
* Support TS recording and playing via the USB disk (FTA 32)
* Redundancy Power Supply (optional)
* 16*DVB-C RF output
* 1 IP (MPTS) output over UDP and RTP/RTSP, as mirror of one carrier
* Support 16groups multiplexing+16 groups scrambling +16 groups QAM modulating
* Excellent RF output performance index, MER≥40db
* Support accurate PCR adjusting
* Support PSI/SI editing and inserting
* Support Web management,Updates via web
* Support TS recording and playing via the USB disk (FTA 32)
* Redundancy Power Supply (optional)
Specification
|
Input
|
24 DVB-S/-S2/-S2X (DVB-T/-T2, DVB-C, ATSC, ISDB-T Optional) FTA tuner
|
|
|
|
|||
|
|
128 IP input through GE1 over UDP and RTP protocol
|
|
|
|
|||
|
|
1 ASI input, BNC interface
|
|
|
|
|||
|
Tuner Section
|
Multi-mode tuners switchable(New)
|
DVB-C
|
Standard
|
J.83A(DVB-C), J.83B, J.83C
|
|||
|
|
|
|
Frequency In
|
60~890MHz
|
|||
|
|
|
|
Constellation
|
16/32/64/ 128/256 QAM
|
|||
|
|
|
DVB-T/T2
|
Frequency In
|
60~890MHz
|
|||
|
|
|
|
Bandwidth
|
6/7/8 M bandwidth
|
|||
|
|
|
ISDB-T
|
Frequency In
|
60~890MHz
|
|||
|
|
Version 1
|
DVB-S/S2
|
Frequency In
|
950~2150MHz
|
|||
|
|
|
|
Symbol rate
|
QPSK 1~45Mbauds
|
|||
|
|
|
|
|
8PSK 1~45Mbauds
|
|||
|
|
|
|
Code rate
|
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10
|
|||
|
|
|
|
Constellation
|
QPSK, 8PSK
|
|||
|
|
Version 2(New)
|
DVB-S
|
Frequency In
|
950~2150MHz
|
|||
|
|
|
|
Symbol rate
|
0.5~45Msps
|
|||
|
|
|
|
Signal Strength
|
- 65~-25dBm
|
|||
|
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|||
|
|
|
|
Constellation
|
QPSK
|
|||
|
|
|
|
Max input bitrate
|
≤129 Mbps
|
|||
|
|
|
DVB-S2
|
Frequency In
|
950~2150MHz
|
|||
|
|
|
|
Symbol rate
|
QPSK/8PSK / 16APSK: 0.5~45 Msps 32APSK: 0.5~40Msps;
|
|||
|
|
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/ 10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/ 10 |
|||
|
|
|
|
Constellation
|
QPSK, 8PSK, 16APSK, 32APSK
|
|||
|
|
|
|
Max input bitrate
|
≤129 Mbps
|
|||
|
|
|
DVB-S2X
|
Frequency In
|
950-2150MHz
|
|||
|
|
|
|
Symbol rate
|
QPSK/8PSK / 16APSK: 0.5~45 Msps 8APSK/32APSK: 0.5~40Msps
|
|||
|
|
|
|
FEC
|
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/ 10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10, 1/2-L, 8/ 15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/ 18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/ 10, 2/3-L, 32/45, 11/ 15, 7/9 |
|||
|
|
|
|
Constellation
|
QPSK, 8PSK, 8APSK, 16APSK,32APSK
|
|||
|
|
|
|
Max input bitrate
|
≤129 Mbps
|
|||
|
|
|
ATSC
|
Frequency In
|
30~ 1000MHz
|
|||
|
|
|
|
Bandwidth
|
6M
|
|||
|
|
|
|
Constellation
|
8VSB
|
|||
|
Multiplexing
|
Maximum PID
Remapping |
360 output per channel
|
|
|
|||
|
|
Function
|
PID remapping (automatically or manually)
|
|
|
|||
|
|
|
Accurate PCR adjusting
|
|
|
|||
|
|
|
Generate PSI/SI table automatically
|
|
|
|||
|
Scrambling
Parameters |
Max simulscrypt CA
|
4
|
|
|
|||
|
|
Scramble Standard
|
ETR289, ETSI 101 197, ETSI 103 197
|
|
|
|||
|
|
Connection
|
Local/remote connection
|
|
|
|||
|
Modulation
|
QAM Channel
|
16 non-adjacent carriers output
|
|
|
|||
|
|
Standard
|
EN300 429/ITU-T J.83A/B
|
|
|
|||
|
|
MER
|
≥40db
|
|
|
|||
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|
|||
|
|
RF output level
|
-20~+10dbm(87~ 107 dbµV),0.1db step
|
|
|
|||
|
|
Symbol Rate
|
5.0Msps~7.0Msps, 1ksps stepping
|
|
|
|||
|
|
|
J.83A
|
|
J.83B
|
|||
|
|
Constellation
|
16/32/64/ 128/256QAM
|
|
64/256 QAM
|
|||
|
|
Bandwidth
|
8M
|
|
6M
|
|||
|
Stream out
|
16 RF output (F type interface)
|
|
|
|
|||
|
|
16 IP (MPTS) output over UDP and RTP/RTSP (thru GE2), 2 ASI output(one as mirror)
|
|
|
|
|||
|
System
|
Network management (WEB)
|
|
|
|
|||
|
|
Chinese and English language
|
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
General
|
Dimension(W*D*H)
|
|
482mm×300mm×44.5mm
|
|
|||
|
|
Temperature
|
|
0~45℃(Operation) ; -20~80℃(Storage)
|
|
|||
|
|
Power
|
|
AC 100V±1050/60Hz;, AC 220V±10%, 50/60HZ
|
|
|||
