Quick Details
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
8000*2150*2350mm
-
Weight:
-
About 8000Kg
-
Working Pressure:
-
2000bar
-
Air capacity:
-
1000Nm3/h
-
Marketing Type:
-
New Product
-
Gas Type:
-
CNG Natural Gas
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SNTC
-
Model Number:
-
HPC1000/20 HPC2000/20
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
8000*2150*2350mm
-
Weight:
-
About 8000Kg
-
Working Pressure:
-
2000bar
-
Air capacity:
-
1000Nm3/h
-
Marketing Type:
-
New Product
-
Gas Type:
-
CNG Natural Gas

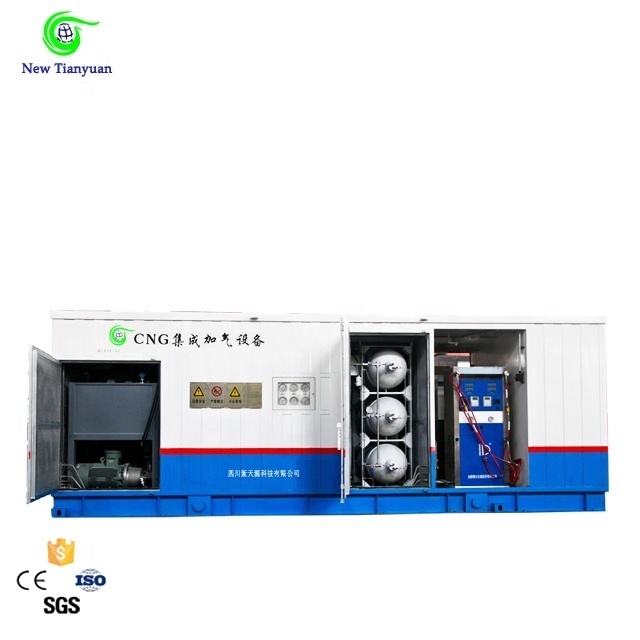

Main Technical parameter of portable daughter station
| NO. | content | HPC1000/20 | HPC2000/20 |
| 1 | Working pressure | 200MPa | |
| 2 | Displacement | 1000Nm3/h | 1000Nm3/h |
| 3 | High-pressure air outlet pipe | Φ22×3.5 | |
| 4 | air-escape ratio | 0.95 | |
| 5 | Cylinder overpressure after air-escape | ≤1MPa | |
| 6 | Working environment temperature | -40°C~+50°C | |
| 7 | Main motor power | 30kw | 30+30kw |
| 8 | System total power | ≤65kw | ≤65kw |
| 9 | Weight | About 8000Kg | |
| 10 | Noise | At one meter ≤75 db | |
| 11 | Oil content of finished gas | ≤10ppm | |
| 12 | Dust particle diameter | ≤5μm | |
| 13 | Control mode | PLC programmable auto control | |
| 14 | dimension | 8000×2150×2350 mm | |
| 15 | Exo-dimension of trailer |
L*W*H:11000mm/2500mm/4000mm
Chassis height ≤1200mm |
|
| 16 | Time of changing package joint between two trailer | Three minutes ( After transform the package joint, the second trailer starts to work, and the oil return in the first trailer doesn’t influent aerating in the second trailer.) | |
| 17 | Working life | 20 years | |
