Quick Details
-
Rated Voltage:
-
0-20KV
-
Tensile Strength:
-
high
-
Product name:
-

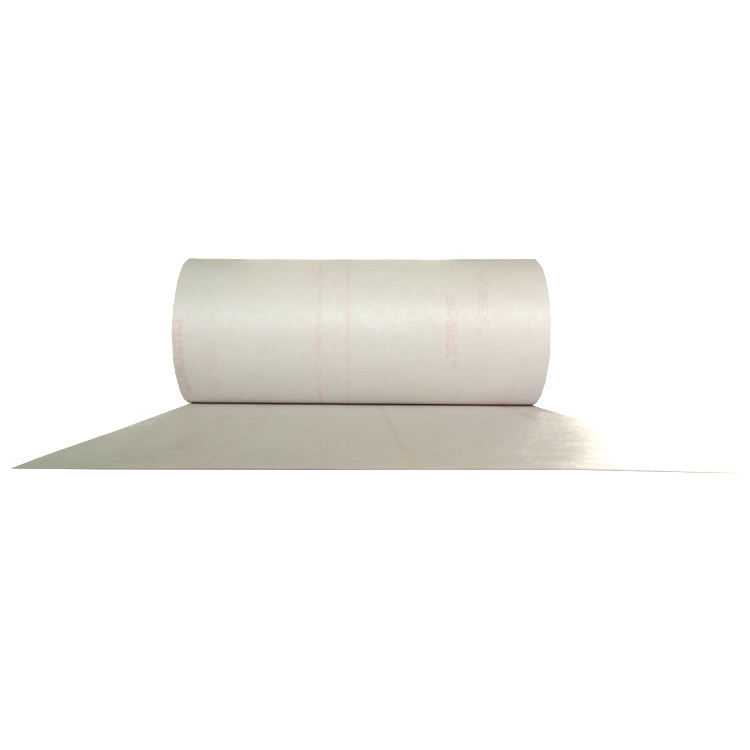

dupont nomex nmn insulation 6640 nmn electrical insulation paper
-
material:
-
polyester film and Nomex insulation papers 6640
-
Temp.class:
-
class- F 155℃
-
use:
-
for F-grade motors and electric appliances
-
Form:
-
roll, sheet, strip
-
Nominal Thincknees:
-
0.14mm/0.18mm/0.20mm/0.25mm/0.30mm/0.35mm on your request
-
Breakdown Voltage:
-
7Kv-20Kv
-
Usage:
-
Electrice Power Insulation Protect
-
certification:
-
ROHS and ISO9001
-
Factory:
-
more than 34 years
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YAAN
-
Model Number:
-
6640
-
Rated Voltage:
-
0-20KV
-
Tensile Strength:
-
high
-
Product name:
-
dupont nomex nmn insulation 6640 nmn electrical insulation paper
-
material:
-
polyester film and Nomex insulation papers 6640
-
Temp.class:
-
class- F 155℃
-
use:
-
for F-grade motors and electric appliances
-
Form:
-
roll, sheet, strip
-
Nominal Thincknees:
-
0.14mm/0.18mm/0.20mm/0.25mm/0.30mm/0.35mm on your request
-
Breakdown Voltage:
-
7Kv-20Kv
-
Usage:
-
Electrice Power Insulation Protect
-
certification:
-
ROHS and ISO9001
-
Factory:
-
more than 34 years
Product advanage
Electric motor winding insulate material dupont nomex laminated nmn insulation 6640 nmn manufacturer electrical insulation paper
2.The heat resistance is F/H Class(155/180°C).
3.Good cutting and overload resistance, high stiffness. Good compatibility with insulation varnish.
4.As slot, interturn and liner insulation for F-grade motors and electric appliances.
|
Properties
|
Unit
|
Values
|
|
|
|
|
|
|||||
|
Nominal Thickness
|
mm
|
0.15
|
0.18
|
0.20
|
0.25
|
0.30
|
0.35
|
|||||
|
Thickness Tolerance
|
mm
|
±0.02
|
|
±0.03
|
|
±0.04
|
|
|||||
|
Breakdown Voltage
( No Bending) ≥ |
kv
|
7
|
10
|
11
|
13
|
15
|
20
|
|||||
|
Bond Strength
At Room Temp. |
-
|
No delamination
|
|
|
|
|
|
|||||
|
Bond Strength
At (180±2)℃, 10 Min |
-
|
No delamination, No blister, No adhesive flow
|
|
|
|
|
|
|||||
Product details
Electric motor winding insulate material dupont nomex laminated nmn insulation 6640 nmn manufacturer electrical insulation paper w
rapped by proctective film;
Electric motor winding insulate material dupont nomex laminated nmn insulation 6640 nmn manufacturer electrical insulation paper p
acked by standard import & export cartons or.iron pallets.
Electric motor winding insulate material dupont nomex laminated nmn insulation 6640 nmn manufacturer electrical insulation paper
is used in slot insulation of F Class electric motor,general H Class electric motor or insulation treatment of transformer.
Related Products
Product Process
Our Company
YAAN INSULATION
YAAN INSULATION, was established in 1886, which is electrical insulation materials company in Middle China.
There are more than 30 million square meters production area, more than 300 existing staffs. YAAN INSULATION is committed to make the buildings more green, more environmentally friendly and energy saving.
Large Scale Workshop
YAAN INSULATION is located in Xuchang city, Henan province.Also have workshop located in Zhengzhou. There are 8 automatic production line to produce on time, 200 kinds of products in five categories, with 38 technical patents.
WAREHOUSE
YAAN INSULATION has sufficient inventory and productivity and is committed to shipping within the specified delivery period.
Certificate and team
Yaan is a young dynamic organized and disciplined and passionate young international team
founded by, is a growth-oriented company and thinking. Simple, stylish, personalized office
environment has always been our style!
Our customer is all over the world,and we have more than 10 years import & export experience
All the finished products are displayed in the exhibition hall.
FAQ
1. Q: How will you pack the product?
A: We pack with paper cartons.
2. Q: Do you accept OEM?
A: Yes, we do.
3. Q: Do you provide free sample? And how many days it will take?
A: Yes, we provide free sample, only need you to pay the courier charge. We will make the sample within 3 working days and it will take 3-7days on the transportation.
4. Q: What's your delivery time?
A: We are factory, so we can efficiently control the production time, and then for the delivery time, it is 5-20 working days.
5. Q: Which certification do you have?
A: The plant has passed the certificate of ISO 9001 quality system certification;
The products have passed ROHS test.
6. Q: What's your production capacity?
A. At present, our production capacity is 100 metric tons per month. However, we are planning to open a new factory and add more production lines.
7. Q: What's your payment term?
A: We accept T/T, L/C, O/A, Western Union, Paypal, Escrow, or customized if it is acceptable.
