Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPFAN
-
Model Number:
-
MX30090CFM1/MX30190CFM1
-
Voltage:
-
12V/24V
-
Product name:
-
Cross Flow Fan
-
Application:
-
air curtain,Over, heater, air purifier, home appliances, floor heating
-
Airflow:
-
22-46CFM
-
Function:
-
Cooling Heating
-
Keyword:
-
Cooling Air-cooled AHU Ducted
-
Fan type:
-
Tangential Blower
-
Noise:
-
Low Noise
-
Material:
-
aluminum Blade
-
Fan Diameter:
-
40mm*190mm
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Electric Current Type:
-
DC
-
Mounting:
-
Other
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOPFAN
-
Model Number:
-
MX30090CFM1/MX30190CFM1
-
Voltage:
-
12V/24V
-
Product name:
-
Cross Flow Fan
-
Application:
-
air curtain,Over, heater, air purifier, home appliances, floor heating
-
Airflow:
-
22-46CFM
-
Function:
-
Cooling Heating
-
Keyword:
-
Cooling Air-cooled AHU Ducted
-
Fan type:
-
Tangential Blower
-
Noise:
-
Low Noise
-
Material:
-
aluminum Blade
-
Fan Diameter:
-
40mm*190mm
Product Details
T

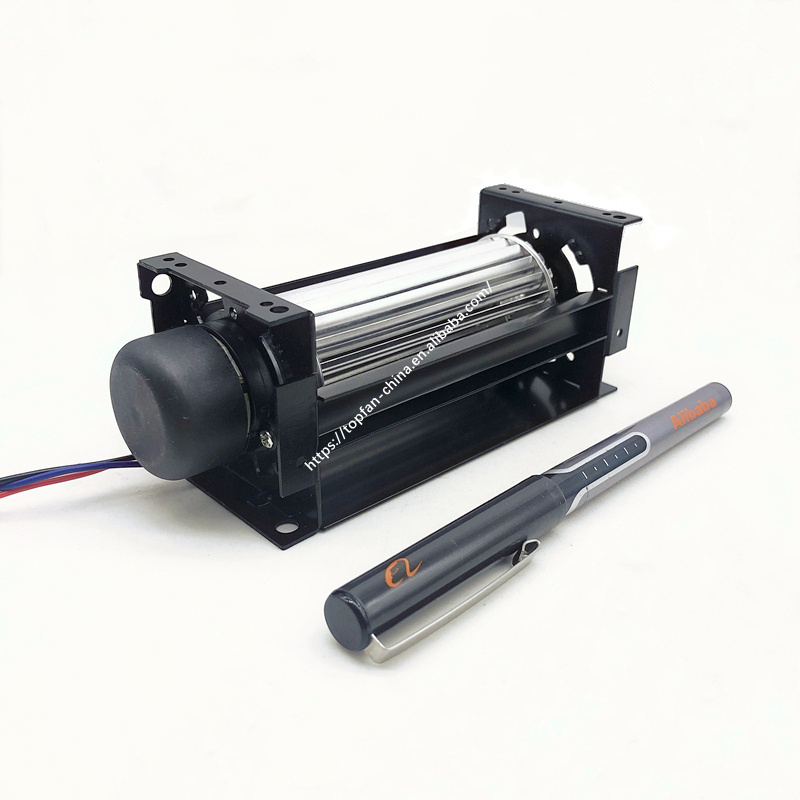

OPFAN 12V 24V 50mm DC Silent Cross Flow Fans Air Curtain Tangential Fan Blower
|
Model
|
Size(mm)
|
|
|
Rated Volt
|
Rated Current
|
Speed
|
Max. Airflow
|
Max. Static Pressure
|
Noise Level
|
||||||||
|
Part No.
|
A
|
B
|
C
|
VDC
|
AMP
|
RPM
|
CFM
|
mmAq
|
dB-A
|
||||||||
|
MX30090CFNM1
|
98
|
132
|
145
|
12
|
0.15
|
3200
|
21
|
1.9
|
29
|
||||||||
|
MX30090CFNM2
|
|
|
|
24
|
0.15
|
|
|
|
|
||||||||
|
MX30150CFNM1
|
160
|
194
|
207
|
12
|
0.18
|
3100
|
28
|
1.7
|
30
|
||||||||
|
MX30150CFNM2
|
|
|
|
24
|
0.16
|
|
|
|
|
||||||||
|
MX30190CFNM1
|
198
|
232
|
245
|
12
|
0.2
|
2900
|
35
|
1.6
|
31
|
||||||||
|
MX30190CFNM2
|
|
|
|
24
|
0.16
|
|
|
|
|
||||||||
|
MX30290CFNM1
|
300
|
334
|
347
|
12
|
0.22
|
2600
|
46
|
1.5
|
33
|
||||||||
|
MX30290CFNM2
|
|
|
|
24
|
0.2
|
|
|
|
|
||||||||
|
More Models
|
Other RPM/CFM/Voltage/Current...please contact us see the specification for more details.
|
|
|
|
|
|
|
|
|
||||||||
|
Product Name
|
DC Cross Flow Fan
|
|
Brand
|
MX topfan/OEM/ODM
|
|
Frame and Impeller
|
Plastic(94V-0)，PBT
|
|
Bearing Type
|
Sleeve bearing&Ball Bearing
|
|
Function Range
|
PWM FG RD IP58 IP68
|
|
Leadwire
|
Red Wire Positive(+)，Black Wire Negative(-)
|
|
Rated Voltage
|
5V 12V 24V 48V ...
|
|
Operating Tempetature
|
-30℃ to +80℃
|
|
Product Applications
|
Household Appliances/Machine/Aeronautical/Power equipment, etc
|
