Can save material and the more efficiency.
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
GBOS
-
Cutting Area:
-
1600x1000mm
-
Cutting Thickness:
-
Depend on materials
-
Control Software:
-
GBOS Control Software
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GBOS
-
Weight (KG):
-
380 KG
-
Core Components:
-
Glass laser tube
-
Configuration:
-
projector
-
Products handled:
-
piece material
-
Feature:
-
projector preview
-
After sales Service Provided:
-
Overseas third-party support available
-
Laser power:
-
90W
-
Laser type:
-
CO2
-
Color:
-
blue white
-
Certification:
-
ISO
-
Local Service Location:
-
Bangladesh
-
Showroom Location:
-
India
-
Marketing Type:
-
New Product
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-36000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
GBOS
-
Cutting Area:
-
1600x1000mm
-
Cutting Thickness:
-
Depend on materials
-
Control Software:
-
GBOS Control Software
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GBOS
-
Weight (KG):
-
380 KG
-
Core Components:
-
Glass laser tube
-
Configuration:
-
projector
-
Products handled:
-
piece material
-
Feature:
-
projector preview
-
After sales Service Provided:
-
Overseas third-party support available
-
Laser power:
-
90W
-
Laser type:
-
CO2
-
Color:
-
blue white
-
Certification:
-
ISO
-
Local Service Location:
-
Bangladesh
-
Showroom Location:
-
India
-
Marketing Type:
-
New Product
Product Description

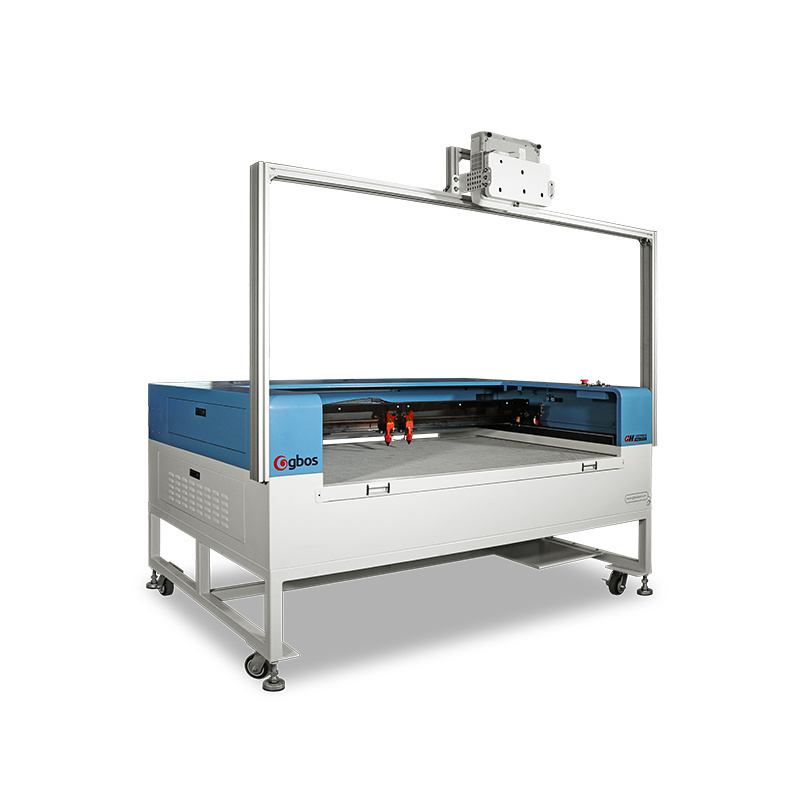

GBOS engraving making cutter shoe vamp cutting projector positioning laser cutting machine
GH1610T-P specially designed for rapid laser cutting for shoe vamp fabrics.
Equipped with projector visual recognizing system, software automatically can preview the pattern on the fabric and you want see what you want, thus accurate fabric cutting . Intelligent and production efficiency is greatly improved.
High speed, and material-saving, convenient to change design, high efficiency, good quality, especially for pieces cutting of clothing, leather and other materials.
|
GBOS engraving making cutter shoe vamp cutting projector positioning laser cutting machine
|
|
|
|
|||
|
MODEL
|
|
GH1610T-P
|
|
|||
|
Processing Area(mm)
|
|
1600×1000mm
|
|
|||
|
Gross Power
|
|
≈2000W
|
|
|||
|
Measurement(mm)(L×W×H)
|
|
2300×1530×2300mm
|
|
|||
|
System/Compatible Format
|
|
WindowsXP/7/8/10,AI,PLT,DXF,DST,BMP,JPEG, JPG,PNA
|
|
|||
|
Weight(kg)
|
|
380KG
|
|
|||
|
Power Supply
|
|
220V/10A,50Hz or 60Hz
|
|
|||
|
Cutting speed
|
|
600mm/s
|
|
|||
|
Environmental Requirements
|
|
Temperature 10-30℃ Humidity (no condensation) 30-80%
|
|
|||
GBOS Laser Cutting Machine Applicable Materials
Fabric, label, soft embroidery, leather, fabric, shoe vamp, leather, digital printing and other non-metal material.
Product Advantage
Interactive double-head system
Honeycomb fixed working table
Make sure the material is flat and suitable for material in sheet cutting.
Projector positioning cutting
System Automatic extraction of contours within 5 seconds (big size fabric pattern outline recognition) , no need Graphic processing .
System automatic extraction of contours and then border cutting edges immediately.
Multi conveyor bed for option
Herringbone for soft fabric.
Grid for leather.E style for footwear industry.
850T for more safety.
Automatic size grading
Input the pattern from software graphics library.
The left side of software will arrange the sizes one by one.
Choose the file to process, drag it to the working area of the software.
Machine remote connection & control by man,
management can see production status and data in real time.
.
Integrated design with feeding system(Optional)
Truly integrated feeding system, not pulling shelf.
Multi-material auto-feeding: knitted fabric, cloth, leather, foam,(capable of multi-layers feeding).
Smart Nesting-Waste Saving and Fast(option)
Odd number arranging
Waste saving arranging
Unlimited lenth nesting
Auto calculating
Mark & Cut Samples
GBOS Laser Cutting Machine Applicable Materials
Fabric, label, soft embroidery, leather, fabric, shoe vamp, leather, digital printing and other non-metal material.
About GBOS
GBOS LASER INC. A national high-tech enterprise dedicated to provide laser intelligent solution globally.
Since it was established in 2005, GBOS Laser Brand has been devoted to the research and development, innovation, production and sales of medium and high-end laser systems. So far, it has launched more than 150 kinds of intelligent laser systems, and product lines cover laser marking, cutting, drilling, engraving and other fields. The company has passed the industry's ISO9001.2008 quality management standard and its core technology has won several national patents and software copyrights. A number of products have passed the EU CE certification.
The company's core technology, talent, and innovation have created the most comprehensive product line of laser systems in the industry. As the industry leader in intelligent laser systems, our laser systems are being used in various countries and regions worldwide, and customers range from small family-owned businesses to large highly automated enterprises. We believe that our leading laser system can help you to develop and maintain a competitive advantage.
"All GBOS people will be proud of the well-known GBOS". We make every effort to create the world's leading brand in the laser industry.
Our Service
Pre-sales
✔Free sample testing
✔Professional introduction
✔Multilingual o nline services
✔Warranty available and prompt delivery
After-sales
✔Free technical training and software upgrading
✔Remote control and local installation
✔Machine maintenance
Exhibition
GUANGZHOU CHINA SHOES MATERIAL MACHINARY FAIR
Located in Guangzhou
SIMAC &TANNING-TECH INTERNATIONAL EXHIBITION OF MACHINES AND TECHNOLOGIES FOR FOOTWEAR AND LEATHERGOODS AND TANNING INDU
Located in Italy
CHINA INT'L SEWING MACHINERY & ACCESSORIES SHOW
Located in Shanghai
VIETNAM SAIGON TEXTILE&GARMENT INDUSTRY FABRIC&GARMENT ACCESSORIES EXPO
Located in Vienam
FAQ
Q1: What's the working size of GH1610T-P laser cutting machine?
Working area: 1600*1000mmQ2: What does the meaning of "T" & "P" from GH1610T-P shoe vamp laser cutting machine?
T : Double heads
P: Projector
Q3: What kind of shoe vamp can it works?
a. Mess shoe vamp;
b. Knitted shoe vamp;
c. Flying weaving shoe vamp;
d.Woven shoe vamp.
Q4: If I don't know how to operate this projector positioning cutting machine well and what should I do ?
a. You can ask us for dispatching technician for paid in-house service(installation & training).
b. Also send video and English manual of the machine for free.
c. If you still have any doubts, please contact us via Telephone / Skype / Email / Facebook / Website, will answer you within 8 hours.
Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period. While we also supply free life long after-sales service online.
Any problem, please do not hesitate to contact us, we will service to you at 7*24 hours.
