Quick Details
-
Product name:
-
anti vibration spring isolator mount
-
Name:
-
Spring vibration isolator
-
Material:
-
Rubber+Aluminum
-
Function:
-
Industrial
-
Color:
-
Customized Color
-
Type:
-
JB Vibration Isolators
-
Feature:
-
Energy Saving
-
Shape:
-
Customer
-
Size:
-
Standard size
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jiufu
-
Model Number:
-
JB
-
Product name:
-
anti vibration spring isolator mount
-
Name:
-
Spring vibration isolator
-
Material:
-
Rubber+Aluminum
-
Function:
-
Industrial
-
Color:
-
Customized Color
-
Type:
-
JB Vibration Isolators
-
Feature:
-
Energy Saving
-
Shape:
-
Customer
-
Size:
-
Standard size
Product Description

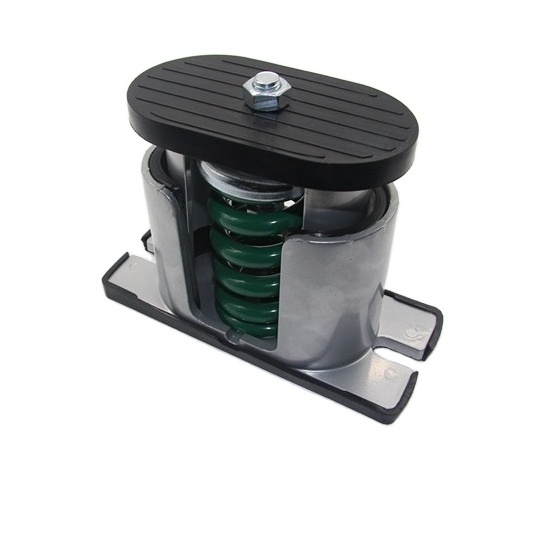

Description of anti vibration spring isolator mount
anti vibration spring isolator mount
is equipped with upper bolts to be fixed to the equipment, and lower to the foundation. There are height adjustment bolts to adjust the level of the equipment, and adopt lateral damping to improve the vertical and horizontal levels. Stiffness. (JB type damping spring shock absorber damping ratio ≥0.065).
Technical parameters
Technical parameters of
anti vibration spring isolator mount
|
Model
|
Dimension
|
|
|
|
|
|
|
||||||
|
|
L
|
A
|
B
|
W
|
H
|
M
|
D
|
||||||
|
JB-S
|
148
|
126
|
106
|
62
|
95
|
12
|
12*!8
|
||||||
|
JB-M
|
180
|
150
|
118
|
83
|
140
|
12
|
12*30
|
||||||
|
JB-L
|
220
|
185
|
153
|
90
|
185
|
14
|
15*25
|
||||||
|
Model
|
Load range （kg)
|
Coefficient of elasticity （Kg/mm)
|
Applicable deflection
|
|
JB-12-S
|
6-12
|
0.8
|
15
|
|
JB-18-S
|
9-18
|
1.2
|
15
|
|
JB-30-S
|
15-30
|
2
|
15
|
|
JB-40-S
|
20-40
|
2.7
|
15
|
|
JB-55-S
|
30-55
|
3.7
|
15
|
|
JB-75-S
|
40-75
|
5
|
15
|
|
JB-90-S
|
45-90
|
6
|
15
|
|
JB-120-S
|
60-120
|
8
|
15
|
|
JB-150-S
|
75-150
|
10
|
15
|
|
JB-180-M
|
150-180
|
7.2
|
25
|
|
JB-250-M
|
200-250
|
10
|
25
|
|
JB-300-M
|
300-350
|
12
|
25
|
|
JB-350-M
|
350-400
|
14
|
25
|
|
JB-400-L
|
450-400
|
16
|
25
|
|
JB-450-L
|
400-450
|
18
|
25
|
|
JB-500-L
|
500-600
|
20
|
25
|
|
JB-600-L
|
600-700
|
24
|
25
|
|
JB-700-L
|
700-850
|
28
|
25
|
|
JB-850-L
|
700-850
|
34
|
25
|
|
JB-1000-L
|
850-1000
|
40
|
25
|
Application
Application of anti vibration spring isolator mount
1)Air conditioning box, centrifugal fan
2)Small ice water machine, various water pumps and pipes
3)Generating units, general industrial units
2)Small ice water machine, various water pumps and pipes
3)Generating units, general industrial units
Packing&Shipping
Inner package of
anti vibration spring isolator mount
:Plastic film
Outer package of
anti vibration spring isolator mount
:Wooden Case
Delivery of
anti vibration spring isolator mount
:Within 7 days after received the payment
Company Introduction
Shanghai Songjiang Jiufu Shock Absorber Co., Ltd. has always pursued the business tenet of "survive by quality and development by science and technology", the quality policy of "integrity-based, technological innovation, wholeheartedness and perfection" and a warm and thoughtful after-sales service system. "Building a brand-name enterprise and opening up the international market" is our eternal goal to move towards a first-class enterprise with an internationally synchronized management level.
