Stainless steel Ball Bearings
More than 20pcs ball bearings to full race sterering,use high grade
Lubricating oil,swivel more smooth
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
CC-TP001
-
Warranty:
-
1year
-
Axle Diameter:
-
75MM, 100MM, 125MM
-
Style:
-
Swivel Roller, High temperature resistant caster wheel
-
Place of Origin:
-
Guangdong, China
-
Size:
-
3INCH,4 Inch,5INCH
-
Wheel Diameter:
-
75MM,100mm,125MM
-
Wheel material:
-
Nylon and fiberglass
-
Color:
-
brown
-
Bearing:
-
Double shaft
-
Finished::
-
Galvanized fork
-
Mounting::
-
Top plate
-
Function::
-
Slide with brake
-
Guarantee::
-
1 year
Quick Details
-
Width:
-
4Inch, 3inch, 5inch
-
Material:
-
Glass Filled Nylon, Steel
-
Type:
-
Swivel Casters
-
Model Number:
-
CC-TP001
-
Warranty:
-
1year
-
Axle Diameter:
-
75MM, 100MM, 125MM
-
Style:
-
Swivel Roller, High temperature resistant caster wheel
-
Place of Origin:
-
Guangdong, China
-
Size:
-
3INCH,4 Inch,5INCH
-
Wheel Diameter:
-
75MM,100mm,125MM
-
Wheel material:
-
Nylon and fiberglass
-
Color:
-
brown
-
Bearing:
-
Double shaft
-
Finished::
-
Galvanized fork
-
Mounting::
-
Top plate
-
Function::
-
Slide with brake
-
Guarantee::
-
1 year

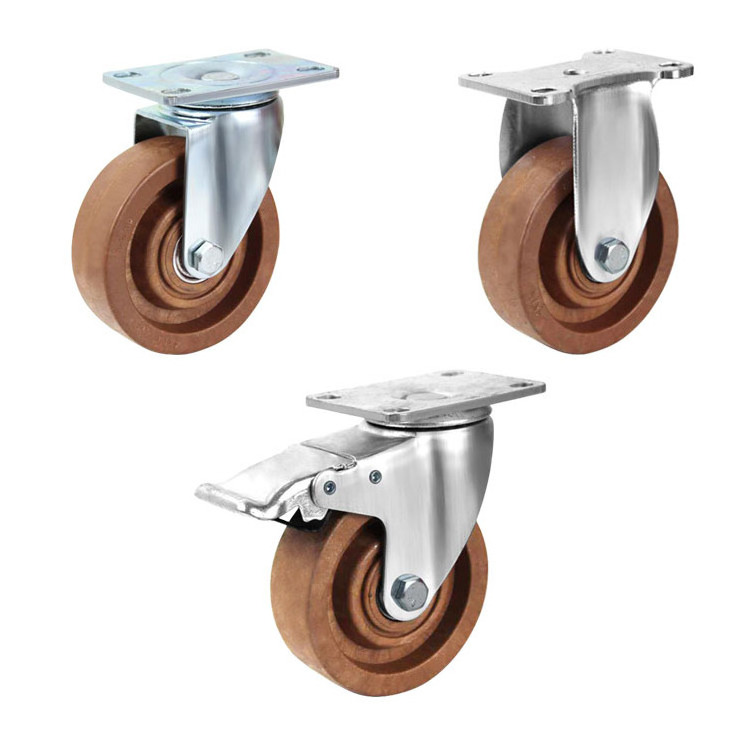

300 degrees oven bakery Nylon and fiberglass 4 Inch Hand Trolley Casters High Temperature Caster Wheels
Product Description
use top grade cold rolled steel ,
environmental
zinc plated finish treatment,
Strong loading capacity and corrosion resistance
High temperature resistant wheel
use
fiberglass n
ylon
,long life service and
shock absorption, can bear temperature below 3
00 degree temperature,widely use in oven ,
bakery field
formed for strength design
with hardened raceways ,prevent
dust getting inside,
improves performance,
extreme resistance to abrasion;
Smooth rotation
Heavy Duty Bearings
- Steel structures body is extremely hard wearing and resistant to dirt,With double ball bearing bring a max loading capacity of 1200lbs for the pack of 4.
Dual Locking - All with locking mechanism,The total brake locks the direction of the bottom plate rotation and wheels forward synchronous, which is secure and efficient to stop and positioning your equipment as desired .
Quiet & Smooth - Made of the popular non-marking PVC type , absorbs shock and vibrations,rolling smoothly and silent without annoying others and help protect floors from scratches or carpet from snags.
Max Flexibility – Swivel casters with 360 degree rotation top plate which makes turning the mating equipment possible, easy to transform your equipment to any directions that you want with less time and strength .
Dual Locking - All with locking mechanism,The total brake locks the direction of the bottom plate rotation and wheels forward synchronous, which is secure and efficient to stop and positioning your equipment as desired .
Quiet & Smooth - Made of the popular non-marking PVC type , absorbs shock and vibrations,rolling smoothly and silent without annoying others and help protect floors from scratches or carpet from snags.
Max Flexibility – Swivel casters with 360 degree rotation top plate which makes turning the mating equipment possible, easy to transform your equipment to any directions that you want with less time and strength .
Specification
|
Size
|
diameter
|
width
|
height
|
plate size
|
hole distance
|
loading rate
|
|
3''
|
75mm
|
32mm
|
100mm
|
95*65mm
|
75*45mm
|
120kgs
|
|
4''
|
100mm
|
32mm
|
130mm
|
95*65mm
|
75*45mm
|
130kgs
|
|
5''
|
125mm
|
32mm
|
148mm
|
95*65mm
|
75*45mm
|
140kgs
|
|
Size
|
diameter
|
width
|
height
|
screw length
|
screw dia
|
loading rate
|
|
3''
|
75mm
|
32mm
|
100mm
|
95*65mm
|
75*45mm
|
120kgs
|
|
4''
|
100mm
|
32mm
|
130mm
|
95*65mm
|
75*45mm
|
130kgs
|
|
5''
|
125mm
|
32mm
|
148mm
|
95*65mm
|
75*-45mm
|
140kgs
|
