Quick Details
-
Model Number:
-
slide switch
-
Max. Current:
-
50mA
-
Mechanical Life:
-
10000 cycles/min
-
Product name:
-
Micro mini 12 pin horizontal slide switch
-
Certificate:
-
ROHS
-
Current Rating:
-
50mA
-
Voltage rating:
-
12V
-
Actuating Force:
-
180gf±20gf
-
Contact Resistance:
-
≤50mΩ Min
-
Insulation resistance:
-
≥100MΩ Max
-
Operating temperature:
-
-25°C ~ 70°C
-
Dielectric strength:
-
250V AC for 1min
-
Certification:
-
ROHS
Quick Details
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHOUHAN
-
Model Number:
-
slide switch
-
Max. Current:
-
50mA
-
Mechanical Life:
-
10000 cycles/min
-
Product name:
-
Micro mini 12 pin horizontal slide switch
-
Certificate:
-
ROHS
-
Current Rating:
-
50mA
-
Voltage rating:
-
12V
-
Actuating Force:
-
180gf±20gf
-
Contact Resistance:
-
≤50mΩ Min
-
Insulation resistance:
-
≥100MΩ Max
-
Operating temperature:
-
-25°C ~ 70°C
-
Dielectric strength:
-
250V AC for 1min
-
Certification:
-
ROHS
Micro mini 12 pin horizontal slide switch interruptor on-off mini Slide Switch
Product Description
Application of slide switch :
Consumer Electronics
Instrumentation
Computer Servers/Peripherals
Test/Measurement Applications
| Specification of slide switch | |
| Items | slide switch |
| Rating | 0.5A 12V DC |
| Insulation resistance | 100 MΩ min. |
| Compressive strength | 250V AC for 50Hz/1 min |
| Contact resistance | 50MΩ max. |
| Operating temperature range | -20°c to -70℃ |
| Lifetime | 5000 Cycles min. |
| Operating force | 250 ± 100gf |
| Travel | 1.5 ± 0.1mm |
| Height | Various height from 1mm to 7mm |

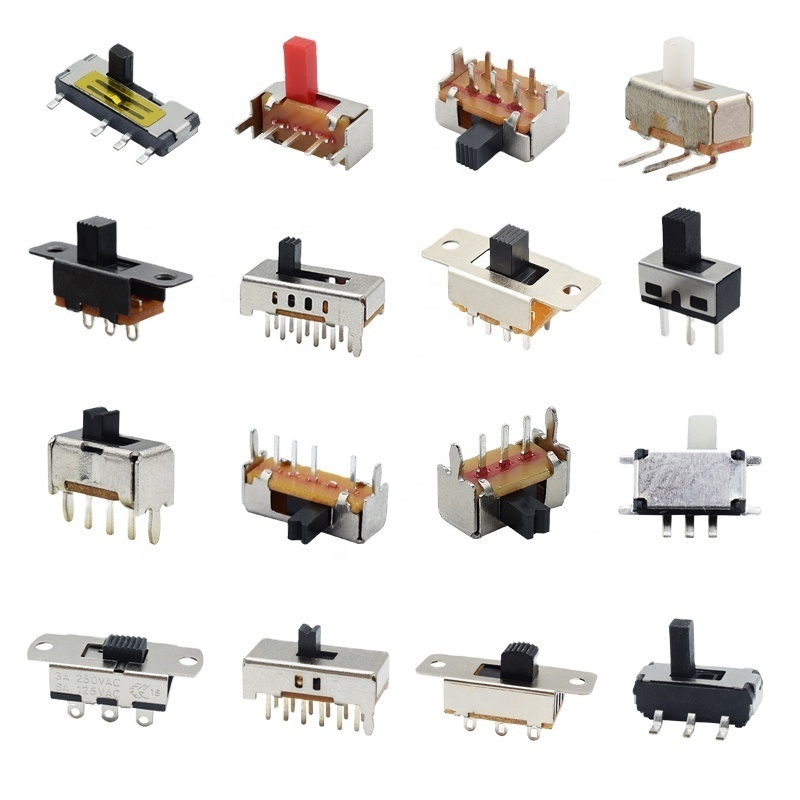

Product show
