Quick Details
-
Specification:
-
standard
-
Packaging Type:
-
standard
-
Application:
-
standard
-
Package / Case:
-
standard
-
Series:
-
standard
-
Features:
-
standard
-
Size / Dimension:
-
10*20
-
Description:
-
Aluminum Electrolytic Capacitor
-
Manufacturing Date Code:
-
new
-
Capacitance:
-
50V470UF
-
Part Number:
-
50V470UF
-
Size:
-
10*20
-
Package:
-
400/bag
-
Product Shape:
-
radial
-
Color:
-
Black
-
Load Life:
-
2000-3000hours
-
Temperature Range:
-
-55 to +105
-
Applicaion:
-
Charger, Switching, Power supply, Audio, For General Purposes etc..
-
Payment Ways:
-
TT, Ali Trade Assurance,West Union,Paypal
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
made in china, made in china/OEM
-
Model Number:
-
50V470UF
-
Specification:
-
standard
-
Packaging Type:
-
standard
-
Application:
-
standard
-
Package / Case:
-
standard
-
Series:
-
standard
-
Features:
-
standard
-
Size / Dimension:
-
10*20
-
Description:
-
Aluminum Electrolytic Capacitor
-
Manufacturing Date Code:
-
new
-
Capacitance:
-
50V470UF
-
Part Number:
-
50V470UF
-
Size:
-
10*20
-
Package:
-
400/bag
-
Product Shape:
-
radial
-
Color:
-
Black
-
Load Life:
-
2000-3000hours
-
Temperature Range:
-
-55 to +105
-
Applicaion:
-
Charger, Switching, Power supply, Audio, For General Purposes etc..
-
Payment Ways:
-
TT, Ali Trade Assurance,West Union,Paypal
Product Description

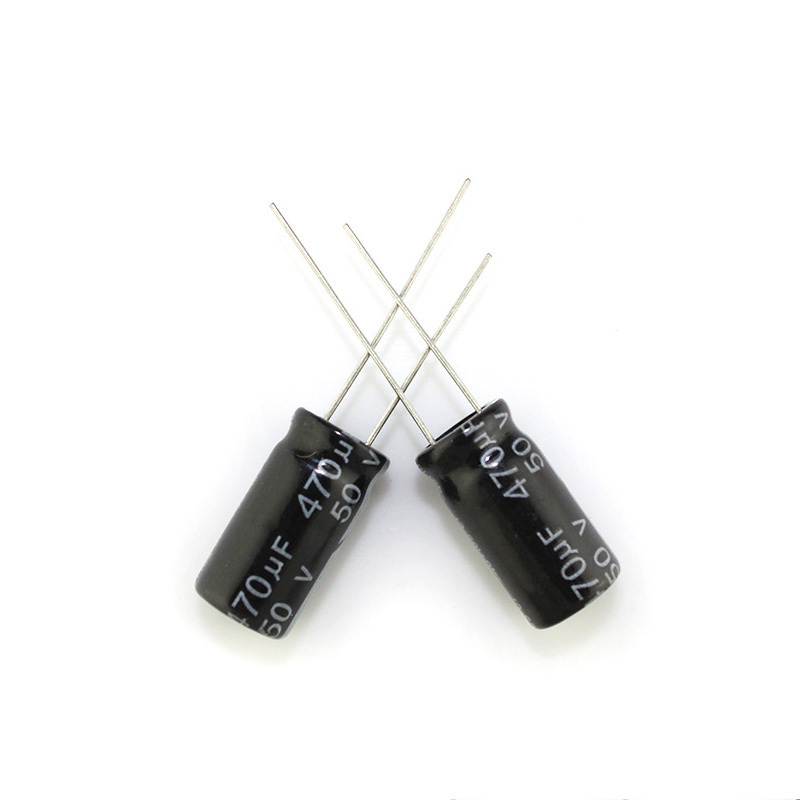

Chinese radial polarized aluminum electrolytic capacitors 50V470UF 50V 470UF 10*20 for audio projects
| ΦD±β | D±0.5 |
| L±a | L±2.0 |
| P±0.5 | 5.0mm±0.5 |
| Φd | 0.1mm±0.05 |
| High temperature resistant 105°C , Life 5000 hours Standard | |||||||||||||
| The products are widely used in LED power supply , adapter , energy saving lamp , Medical equipment , television , DVD , communication , photography , Frequency conversion machine , Numerical control system, Audio power amplifier ,and Tax-controlled tills. | |||||||||||||
| Specifications | |||||||||||||
| Items | Characteristics | ||||||||||||
| Category Tempe Range | -55~+105°C | -25~+105°C | |||||||||||
| Rated Voltage Range | 6.3~100V.DC | 160~400V.DC | |||||||||||
| Capacitance Range | 0.1~22000uF | 0.47~470uF | |||||||||||
| Capacitance Tolerance | ±20%(20°C.120Hz) | ||||||||||||
| Leakage Current (+20°C MAX) | 6.3~100V.DC | 160~400V.DC | |||||||||||
| I≤0.01CV or 3uA after 5 minute measured rated working voltage applied.(whichever is greater) | I≤0.03 (uA) after 5 minute which rated working voltage applied. | ||||||||||||
| I= (uA) Leakage Current C= (uF) Rated Capacitance V= (V) Rated Voltage | |||||||||||||
| Dissipation Factor (tanσ 20%,120Hz) | (V)Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 |
| tanσ 20°C,120Hz | 0.26 | 0.22 | 0.18 | 0.16 | 0.14 | 0.12 | 0.10 | 0.08 | 0.20 | 0.20 | 0.20 | 0.24 | |
| When rated capacitance is over 1000uF,tan shall be added 0.02 to the listed value with increase of every 1000uF. | |||||||||||||
| Load Life | After application of rated working voltager and maximum permissible ripple current specified of +105°C for 5000 hours capacitors meet the characteristics reauirement listed below. | ||||||||||||
| Capacitance Change | Within 25% of the initial measured value. | Case Size | Life Time | ||||||||||
| Dissipation Factor | Not more than 200 % of the specified value. | PDS8 | 1000 | ||||||||||
| Leakage Current | Not more than the specified value. | PD=10 | 2000 | ||||||||||
| PD212.5 | 3000 | ||||||||||||
| Temperature Stability (120Hz ) | (V)Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 |
| Z(-25°C)/Z(20°C) | 4 | 3 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 6 | |
| Z(-40°C)/Z(20°C) | 8 | 6 | 4 | 4 | 3 | 3 | 3 | 3 | - | - | - | - | |
| Shelf life | After leaving capacitor under no load at +105°C for 1000hours, Capacitors meet the characteristics listed above. | ||||||||||||
