Quick Details
-
Rolling thinckness:
-
0.8-1.2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOSJ
-
Voltage:
-
380V 50HZ 3P
-
Dimension(L*W*H):
-
5000*1500*1500mm
-
Weight:
-
5400 kg
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Automatic Control Operation
-
Certification:
-
CE ISO
-
Function:
-
Stable
-
Power:
-
30kw
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Raw material:
-
Galvanized Sheet
-
Control system:
-
PLC(imported Brand)
-
Color:
-
Client's Request
Quick Details
-
Type:
-

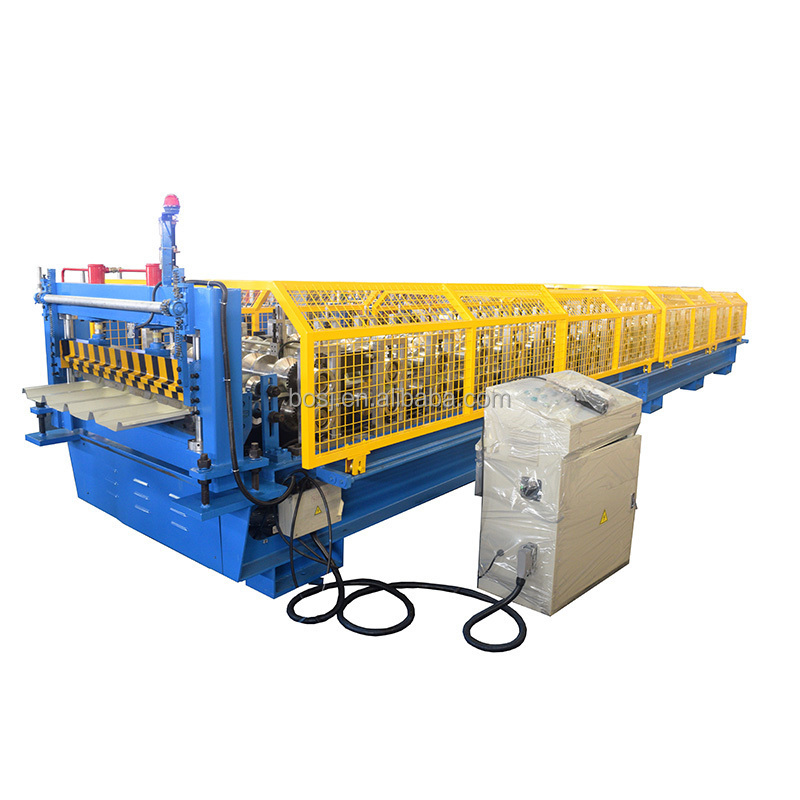

Tile Forming Machine
-
Tile Type:
-
colored
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.8-1.2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOSJ
-
Voltage:
-
380V 50HZ 3P
-
Dimension(L*W*H):
-
5000*1500*1500mm
-
Weight:
-
5400 kg
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Usage:
-
Automatic Control Operation
-
Certification:
-
CE ISO
-
Function:
-
Stable
-
Power:
-
30kw
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Raw material:
-
Galvanized Sheet
-
Control system:
-
PLC(imported Brand)
-
Color:
-
Client's Request
Product Paramenters
|
Voltage
|
380V 50Hz 3Phase or as your requirement
|
|
Thickness
|
0.3-0.8mm or customized
|
|
Material
|
Galvanized steel ,PPGI
|
|
Speed
|
About 0-15 m/min
|
|
Drive system
|
By chain
|
|
Cutting system
|
Hydraulic cutting
|
Production Process:
Decoiler → feeding →
roll forming
→ cutting
→collection
Roll forming machine
* Roller material: SAE1045 chrome plated surface with chrome
* Shaft diameter: ￠70mm
*
Material: SAE1045 with quenching and tempering
Cutting
* Cutting after forming: Cut the sheet after roll forming to required length
* Uses two hydraulic cylinders for operation.
* Material of blade:Cr12, 58-62 HRC hardness
* Cutting power by hydraulic,4KW
* Working pressure: 12Mpa adjustable
* Length measuring: Automatic encoder length measuring
* Uses two hydraulic cylinders for operation.
* Material of blade:Cr12, 58-62 HRC hardness
* Cutting power by hydraulic,4KW
* Working pressure: 12Mpa adjustable
* Length measuring: Automatic encoder length measuring
Our service
FAQ
BOSJ: Meeting with you, Growing with you, Enjoying with you.
1.Which is best sheet for roofing?
Foam backed polycarbonate and clear polycarbonate roofing options are the most commonly used types of polycarbonate sheets
Foam backed polycarbonate and clear polycarbonate roofing options are the most commonly used types of polycarbonate sheets
2. How many types of roofing sheets ?
4 Different Types of Roofing Sheets: Pros and Cons.
3.
What is the cheapest metal roofing?
Corrugated metal roofing is the cheapest metal roofing. This type of roofing is typically made from galvanized steel, which is the most common steel roofing type.
4. What is corrugated sheet?
Corrugated sheets are stronger than other alternatives due to their rippled structure, as compared to plain surfaces of other sheets. Their repetitive folds on the surface are what offers them the better durability and enhanced strength that they possess.
Corrugated sheets are stronger than other alternatives due to their rippled structure, as compared to plain surfaces of other sheets. Their repetitive folds on the surface are what offers them the better durability and enhanced strength that they possess.
5. How many months for "BOSJ" company machine guaranteed?
In correct operation & maintaining, the machine is guaranteed for 12 months since leaving factory.
