Quick Details
-
Product name:
-
MEE spindle electric telescopic mast
-
Color:
-
As shown in the figure
-
Application:
-
Manual operation
-
MOQ:
-
1PCS
Quick Details
-
Brand Name:
-
TIANHEMAST
-
Model Number:
-
MEE-80*5
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
MEE spindle electric telescopic mast
-
Color:
-
As shown in the figure
-
Application:
-
Manual operation
-
MOQ:
-
1PCS
Product Description
Specification
|
Model No
|
Extend height (m/ft)
|
Retract height(m/ft)
|
No of section
|
Tube diameter range (mm/in)
|
Payload capacity(kg/lb)
|
|
MEE-40*3
|
4m/13.1ft
|
1.7m/5.6ft
|
3
|
70-136mm
|
50kgs/110lbs
|
|
MEE-60*5
|
6m/19.7ft
|
1.75m/5.7ft
|
5
|
70-147mm
|
50kgs/110lbs
|
|
MEE-60*6
|
6m/19.7ft
|
1.6m/5.2ft
|
6
|
70-170mm
|
40kgs/88lbs
|
|
MEE-80*5
|
8m/26.2ft
|
2.25m/7.4ft
|
5
|
70-147mm
|
40kgs/88lbs
|
|
MEE-80*6
|
8m/26.2ft
|
2m/6.6ft
|
6
|
70-170mm
|
30kgs/66lbs
|
|
MEE-90*5
|
9m/32.8ft
|
2.5m/8.2ft
|
5
|
70-147mm
|
30kgs/66lbs
|

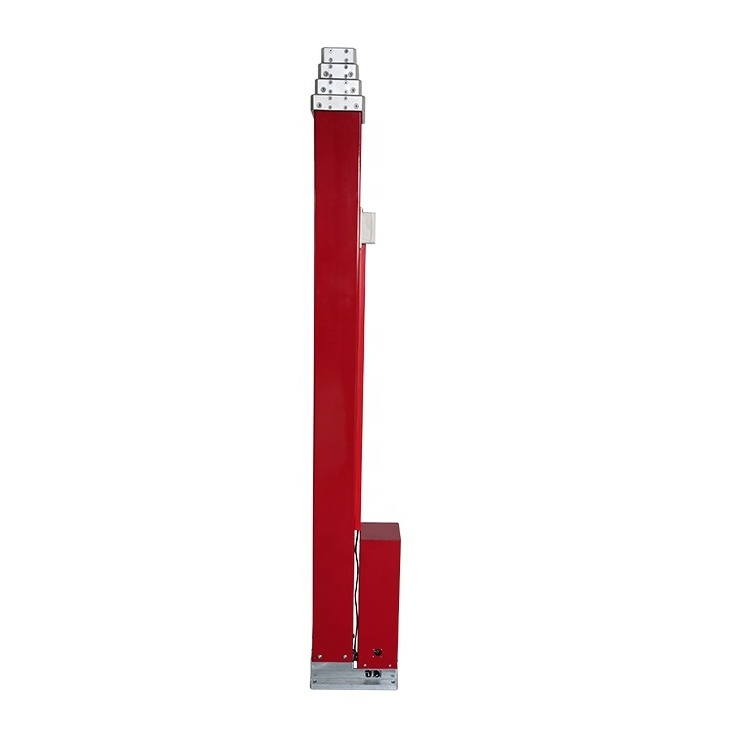

TIANHEMAST MEE series electro-motor operated mechanical mast is a revolutionary screw plus stainless steel rope driven mast designed for communications, reconnaissance, and surveillance applications. The electro masts are light weight mobile and allow internal or external mounting for MRAP or shelter installation.
Built with durable high strength aluminum tube sections, the electro mast is designed and tested to meet military environmental standards for operation in extreme conditions.
MEE mast is structurally similar like MEW series mast, it has also been built over 10 years, all parts and components are tested by our clients, generally is a mature product for long life span use. Because it is spindle screw for 1st section, so it goes more smoothly compare to MEW manual mast, and it can be equipped with 12/24Vdc or 220Vac powered, manual back up winch is also available for this model.
Advantages Key Features:
All mast component made of high tensile aluminum, copper brass, stainless steel screw (no corrosion will happen)
* All mast cable is build inside to withstand weather condition
* IP67 motor system can be designed
* Elevation and stopped at any heights
* Structural upgraded with best satisfaction and light weight compare to iron masts(galvanized)
* Dual way stainless steel rope kit (it means the mast is going up by rope and going down by rope too)
* Screw spindle plus stainless steel rope operation for smooth and better payload capacity
* -40 to +80°C friendly motor has been anti-freezing tested
Built with durable high strength aluminum tube sections, the electro mast is designed and tested to meet military environmental standards for operation in extreme conditions.
MEE mast is structurally similar like MEW series mast, it has also been built over 10 years, all parts and components are tested by our clients, generally is a mature product for long life span use. Because it is spindle screw for 1st section, so it goes more smoothly compare to MEW manual mast, and it can be equipped with 12/24Vdc or 220Vac powered, manual back up winch is also available for this model.
Advantages Key Features:
All mast component made of high tensile aluminum, copper brass, stainless steel screw (no corrosion will happen)
* All mast cable is build inside to withstand weather condition
* IP67 motor system can be designed
* Elevation and stopped at any heights
* Structural upgraded with best satisfaction and light weight compare to iron masts(galvanized)
* Dual way stainless steel rope kit (it means the mast is going up by rope and going down by rope too)
* Screw spindle plus stainless steel rope operation for smooth and better payload capacity
* -40 to +80°C friendly motor has been anti-freezing tested
