Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Holfill
-
Dimension(L*W*H):
-
429*410*438
-
Weight:
-
45
-
Rated power/speed:
-
16.5kw/3600rpm, 22.1HP/3600
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Single Cylinder Gasoline Engine
-
Model:
-
GX690
-
Start model:
-
Hand start/Electric start
-
Engine type:
-
Single cylinder, four-stroke, forced air cooling, overhead valve
-
Starting system:
-
Recoil Starter
-
Fuel tank(L):
-
6.7
-
Dry weight:
-
45kg
-
Carton dimension:
-
429*410*438mm
Quick Details
-
Displacement:
-
688cc, 688cc
-
Emission Standard:
-
EURO 5
-
Power:
-
16.5kw, 688cc
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Holfill
-
Dimension(L*W*H):
-
429*410*438
-
Weight:
-
45
-
Rated power/speed:
-
16.5kw/3600rpm, 22.1HP/3600
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Single Cylinder Gasoline Engine
-
Model:
-
GX690
-
Start model:
-
Hand start/Electric start
-
Engine type:
-
Single cylinder, four-stroke, forced air cooling, overhead valve
-
Starting system:
-
Recoil Starter
-
Fuel tank(L):
-
6.7
-
Dry weight:
-
45kg
-
Carton dimension:
-
429*410*438mm

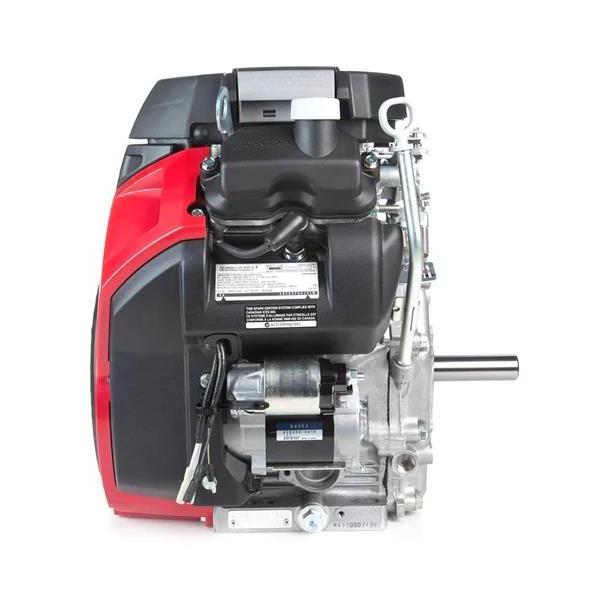

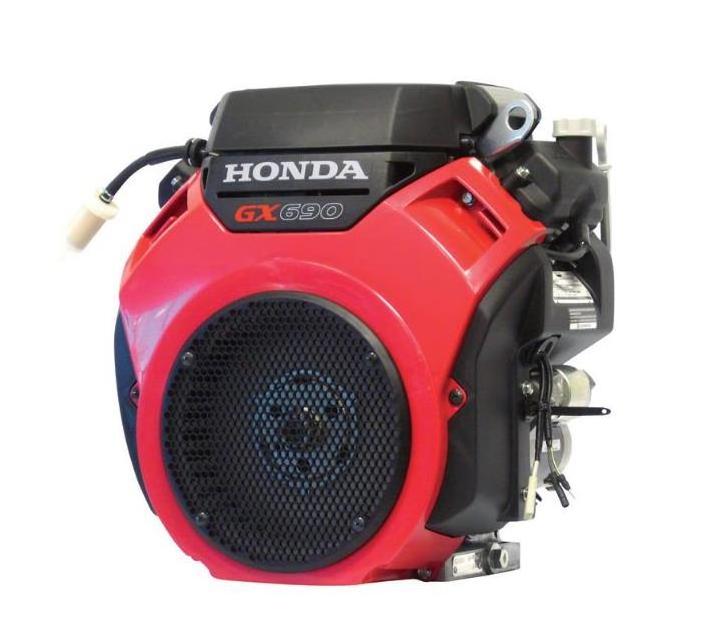

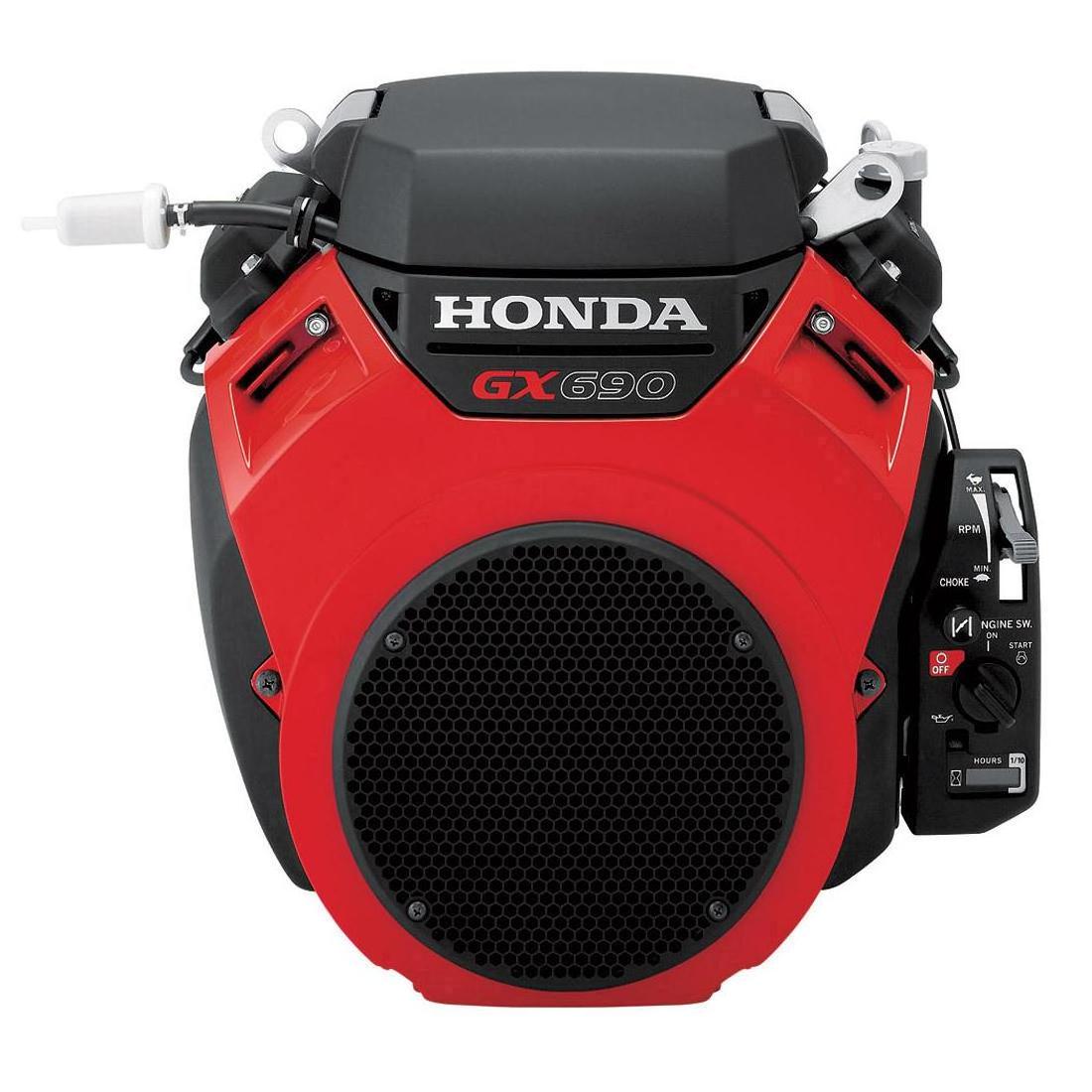

688CC Gasoline Engine GX690 Petrol Engine 16.5KW Horizontal Shaft Engine
Product Overview
PRODUCT SPECIFICATIONS
|
Product Name
|
GX690 Single Cylinder Gasoline Engine
|
Engine type
|
4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, horizontal shaft
|
|
Bore*stroke(mm)
|
78*72
|
Displacement(ml)
|
688cc
|
|
Compression ratio
|
9.3:1
|
Ignition system
|
Non-contact transistorized ignition(TCI)
|
|
Net power using
|
16.5 kW( 22.1 HP )/ 3600 rpm
|
Start model
|
Kick start/Electric start
|
|
Air cleaner
|
Semi-dry, double filter element, oil filter type
|
Fuel tank capacity
|
6.7L
|
|
Cylinder sleeve type
|
Cast iron sleeve
|
Carton dimension(L*W*H mm)
|
429*410*438
|
PRODUCT CONFIGURATION
