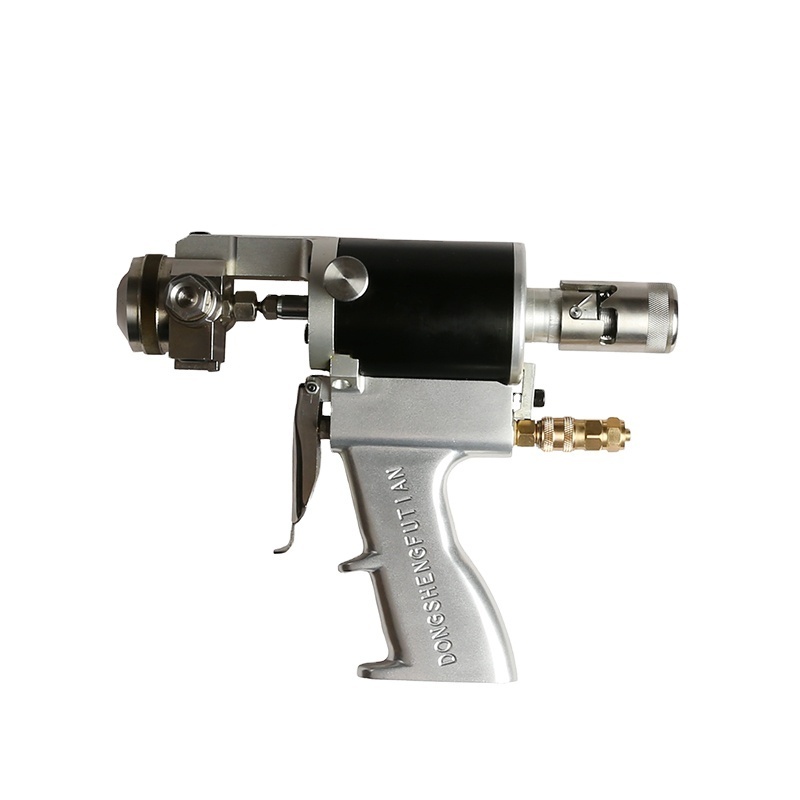

Quick Details
-
Brand Name:
-
DF
-
Model Number:
-
DF-P7
-
Condition:
-
New
-
OEM:
-
Accepted
-
Max. Fluid Working Pressure:
-
3500 psi(24Mpa, 240bar)
-
Max. Inlet Air Pressure:
-
100-125 psi ( 6.9-8.6bar)
-
Min. Output:
-
0.5kg/min
-
Max. Fluid Temperature:
-
176°F (80°C)
-
Drive Mode:
-
Pneumatic/Air-driven
-
Wetted Parts:
-
Stainless Steel, Carbon Steel
-
Weight:
-
2.19kg
Quick Details
-
Type:
-
High Pressure Gun
-
Application:
-
Paint Spray Gun
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
DF
-
Model Number:
-
DF-P7
-
Condition:
-
New
-
OEM:
-
Accepted
-
Max. Fluid Working Pressure:
-
3500 psi(24Mpa, 240bar)
-
Max. Inlet Air Pressure:
-
100-125 psi ( 6.9-8.6bar)
-
Min. Output:
-
0.5kg/min
-
Max. Fluid Temperature:
-
176°F (80°C)
-
Drive Mode:
-
Pneumatic/Air-driven
-
Wetted Parts:
-
Stainless Steel, Carbon Steel
-
Weight:
-
2.19kg
Product Detail
| Model | DF-P7 | |
| Application | Polyurea Coating Spraying | |
| Features |
1. few quick-wear parts
2. polyethylene mix chamber 3. mechanical purge 4. easy to clean up and daily maintenance |
|
| Technical Data | Max. Fluid Working Pressure: | 3500psi(24Mpa, 240bar) |
| Max. Inlet Air Pressure: | 0.7-0.9Mpa(6.9-8.6bar) | |
| Max. output: | 22 lb/min (10 kg/min) | |
| Min. output | 4lb/min (1.8 kg/min) | |
| Max. Fluid Temperature: | 194°F (90°C) | |
| Maximum Working Air Inlet Pressure: | 125 psi (0.9MPa, 8.6bar) | |
| Drive Mode: | pneumatic | |
| Purge Mode: | mechanical purge | |
| Dimensions(mm): | 240*110*230mm | |
| Weight(kg): | 2.19 | |
| MOQ | 1 | |
