- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Medium Duty 02 Series-Black PVC
-
Function:
-
Fix/Swivel/Screw/Dual Brake
-
Size:
-
2.5/3/4/5 inch
-
Wheel Width:
-
32 mm
-
Wheel Material:
-
Black PVC Tread+Gray PP Core
-
Rack Material:
-
Pressed steel (Galvanized)
-
Height:
-
95 mm/107 mm/130 mm/155 mm
-
Load Capacity:
-
80 kg/90 kg/100 kg/120 kg
-
Size of Plate:
-
94*65 mm
-
Screw Size:
-
M12*30 mm/M16*30 mm
Quick Details
-
Material:
-
Polypropylene, Steel, Polyvinyl chloride
-
Type:
-
Plate Casters, Stem Casters
-
Model Number:
-
MD02-BPVC-SB
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Medium Duty 02 Series-Black PVC
-
Function:
-
Fix/Swivel/Screw/Dual Brake
-
Size:
-
2.5/3/4/5 inch
-
Wheel Width:
-
32 mm
-
Wheel Material:
-
Black PVC Tread+Gray PP Core
-
Rack Material:
-
Pressed steel (Galvanized)
-
Height:
-
95 mm/107 mm/130 mm/155 mm
-
Load Capacity:
-
80 kg/90 kg/100 kg/120 kg
-
Size of Plate:
-
94*65 mm
-
Screw Size:
-
M12*30 mm/M16*30 mm
Products Description

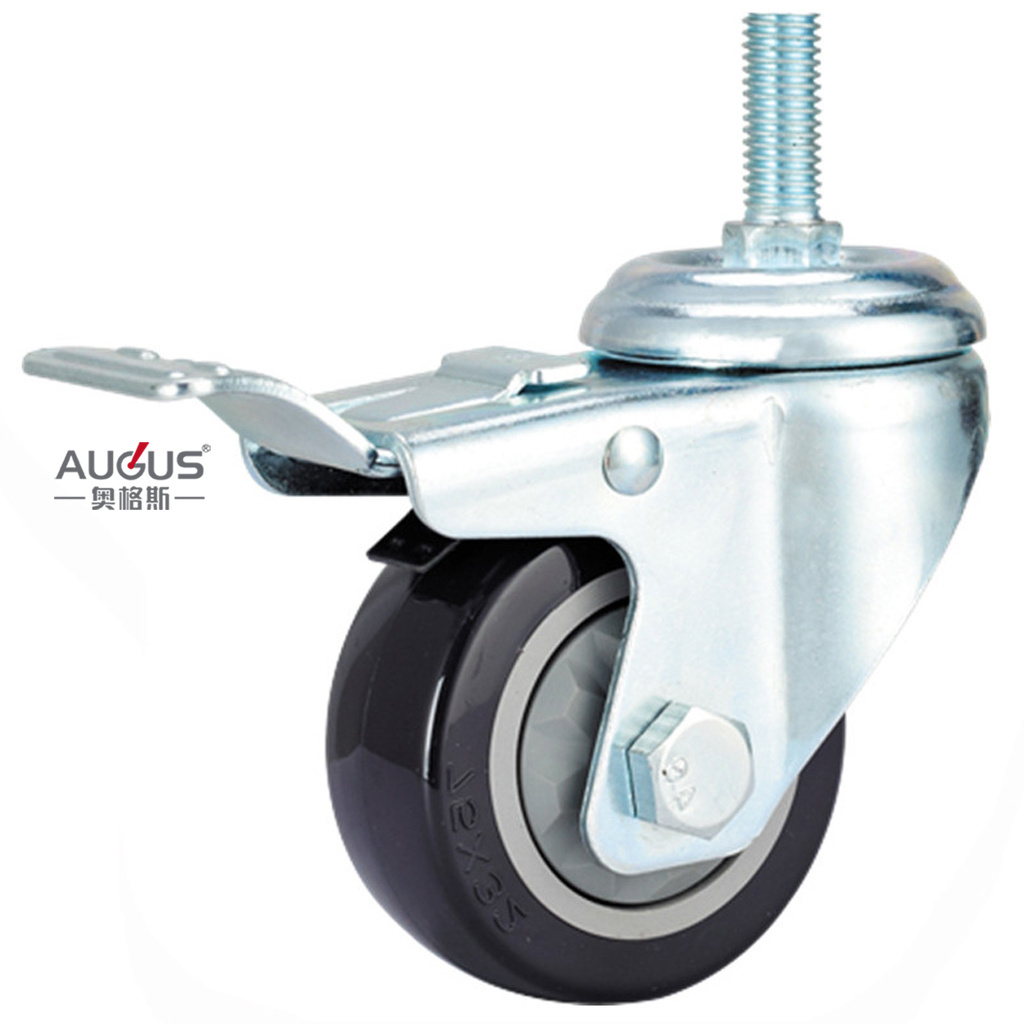

Medium Duty 02 Series-Black PVC Single Bearing
Description: Fix, Swivel, Screw, Dual Brake, Side Brake
Bracket mode: Housing made of Pressed Steel, bright zinc plated, blue zinc plated, black lacquer, chrome plated.
Install with nut and axle. Wheel center is made of PP, wheel tread is made of PVC
Details Images
Product Paramenters
|
Medium Duty 02 Series-Black PVC with Single Bearing
|
|
|
|
|
||||
|
Details
|
2.5 inch
|
3 inch
|
4 inch
|
5 inch
|
||||
|
Wheel Diameter (mm)
|
65
|
75
|
100
|
125
|
||||
|
Tread Width (mm)
|
32
|
32
|
32
|
32
|
||||
|
Overall Height (mm)
|
95
|
107
|
130
|
155
|
||||
|
Offset (mm)
|
35
|
35
|
38
|
42
|
||||
|
Load Capacity (kgs)
|
80
|
90
|
100
|
120
|
||||
|
Size of Plate (mm)
|
94x65
|
94x65
|
94x65
|
94x65
|
||||
|
Hole Centre Distance (mm)
|
74.5x45
|
74.5x45
|
74.5x45
|
74.5x45
|
||||
|
Screw Size (mm)
|
M12x30
|
M12x30
|
M12x30
|
M16x30
|
||||
|
Fix Plate Size (mm)
|
94x67
|
94x67
|
94x67
|
94x67
|
||||
|
Fix Hole Centre (mm)
|
74.5x45
|
74.5x45
|
74.5x45
|
74.5x45
|
||||
