The tube ice widely used in
Frozen food preservation, medical applications, KTV, banquet hall, drinks modulation, hotels, hotels, bars, western
restaurants, fast food shops, cold drinks shop, beer room and other places need ice.
- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
1000kg, Other
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Icemedal
-
Dimension(L*W*H):
-
1600x1400x2250mm
-
Weight:
-
1800 KG
-
Refrigerant::
-
R404a or R22
-
Application::
-
Cold Drinks or Wine,Hotel,Restaurant
-
Cooling way::
-
Water Cooling or air cooling
-
Material:
-
SUS304 Staineless Steel
-
Material::
-
Stainless Steel 304
-
After Warranty Service::
-
Video technical support, Online support, Spare parts,
-
Certification::
-
CE
-
Power supply:
-
380V/3P/50Hz, 415V/3P/50Hz, 220V/3P/60Hz,
-
Control system:
-
PLC+Touch Screen
-
Ice size:
-
22/28/35mm
Quick Details
-
Ice Shape:
-
tube ice
-
Voltage:
-
380V/3P/50Hz, 415V/3P/50Hz, 220V/3P/60Hz
-
Power:
-
22.65kw
-
Ice storage capacity:
-
1000kg, Other
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Icemedal
-
Dimension(L*W*H):
-
1600x1400x2250mm
-
Weight:
-
1800 KG
-
Refrigerant::
-
R404a or R22
-
Application::
-
Cold Drinks or Wine,Hotel,Restaurant
-
Cooling way::
-
Water Cooling or air cooling
-
Material:
-
SUS304 Staineless Steel
-
Material::
-
Stainless Steel 304
-
After Warranty Service::
-
Video technical support, Online support, Spare parts,
-
Certification::
-
CE
-
Power supply:
-
380V/3P/50Hz, 415V/3P/50Hz, 220V/3P/60Hz,
-
Control system:
-
PLC+Touch Screen
-
Ice size:
-
22/28/35mm
High Quality
industrial tube ice machine for ice plant factory ice tube maker machine mesin es kristal
Product Description
Our product Advantages

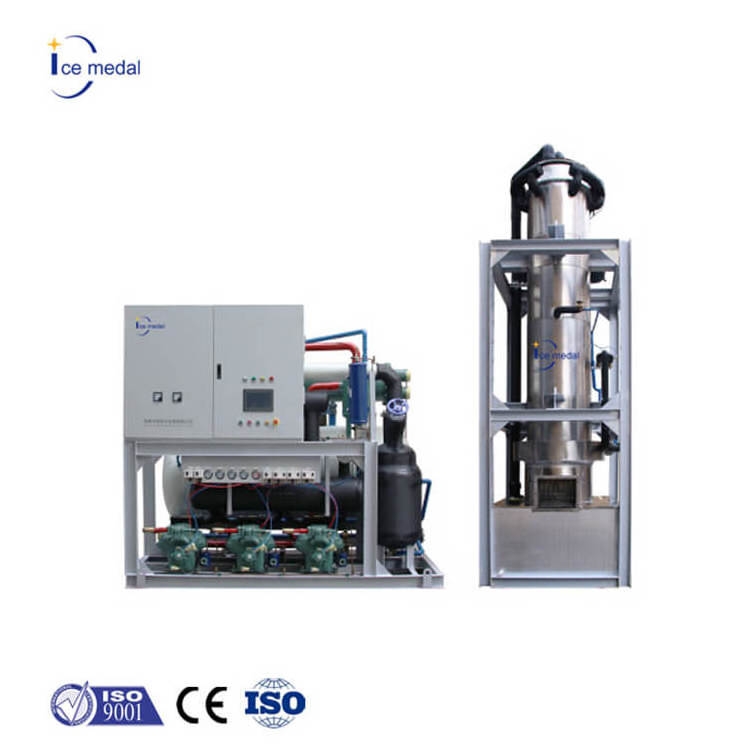

Tube ice machine is a kind of ice maker. It is named because the shape of the ice tube produced is a hollow tube of irregular length.
The outer diameter of the tube ice is divided into φ22 mm, φ28 mm, φ35 mm and other specifications.
The outer diameter of the tube ice is divided into φ22 mm, φ28 mm, φ35 mm and other specifications.
The length ranges from 30 to 60 mm, and the diameter of the inner hole in the middle can be adjusted according to the time of ice making, generally between φ5 to 10 mm. that is widely used for beverage cooling, could be sold to restaurants, hotels, bars and cafes.
Specification
|
IMT10 10 Ton Tube Ice Machine Parameters
|
|
|
|
|
||||
|
Name
|
Unit
|
Parameters
|
|
|
||||
|
Tube Diameter
|
mm
|
Φ22
|
Φ28
|
Φ35
|
||||
|
Bitzer Compressor Parameter
|
Model
|
6FE-50
|
|
|
||||
|
|
Cooling Capacity（kW）
|
79
|
|
|
||||
|
|
Power（kW）
|
27.9
|
|
|
||||
|
Condenser
|
Model
|
WN-55
|
|
|
||||
|
|
Heat Exchange（kW）
|
164.5
|
|
|
||||
|
Condensing Temperature
|
Degree Celsius（℃）
|
40
|
|
|
||||
|
Evaporating Temperature
|
Degree Celsius（℃）
|
-12
|
|
|
||||
|
Ambient Temperature
|
Degree Celsius（℃）
|
32
|
|
|
||||
|
Water Temperature
|
Degree Celsius（℃）
|
20
|
|
|
||||
|
Refrigerant
|
|
R404
|
|
|
||||
|
Voltage
|
V/P/HZ
|
380/3/50
|
|
|
||||
|
Motor Power
|
Ice Cutting Motor（kW）
|
1.5
|
|
|
||||
|
|
Recircling Pump（kW）
|
1.5
|
|
|
||||
|
Cooling Tower
|
Model
|
LX-60
|
|
|
||||
|
|
Power(kW)
|
1.5
|
|
|
||||
|
Cooling Pump
|
Model
|
GD80-21
|
|
|
||||
|
|
Power
|
4
|
|
|
||||
|
Cooling Fan Power
|
Power（kW） |
1.5
|
|
|
||||
|
Water Cooling Machine Dimension
|
L*W*H(mm)
|
1900*1600*1850
|
|
|
||||
|
Refrigerant Quantity
|
kg
|
250
|
275
|
30
|
||||
|
Machine Weight
|
kg
|
3500
|
|
|
||||
2.Brand Compressor from Germany and America.
3. Special Pipe Insulation.
4. Food Standard Stainless Steel Water Pump.
5.Danfoss Pressure Protector.
Application
Why Choose Us
Superior R&D team
1. latest technology on the refrigeration system which reduce the electricity consumption
2. special design on the ice defrosting
3. Icemedal's unique tube ice machine evaporator process
3. Icemedal's unique tube ice machine evaporator process
4. special design for the ice cutter.
Mature pre-sales and after-sales service
1. It can make different size tube ice.
2. Localized after-sales service in some countries.
Easy Operation
3. Provide Installation or After-sales Service Global Wide.
Easy Operation
Fully automatic, easy installation, easy operation, easy maintenance
