Quick Details
-
Voltage:
-
220V/Optional
-
Current:
-
15A/Optional
-
Rated Capacity:
-
Other
-
Use:
-
Laser Welding
-
Product name:
-
Robot Arm Automatic Laser Welding Machine
-
Laser source:
-
Raycus MAX IPG nLIGHT Laser Source
-
Laser head:
-
WSX Raytool OSPRI Optional
-
Laser power:
-
1000W-6000W Optional
-
Application:
-
Metal Stainless Steel Laser Welder
-
Packaging Details:
-
Wooden boxes that meet international export standards
-
Axis:
-
6 Axis
-
Laser type:
-
Fiber Laser Source
-
Power supply:
-
380V
-
After-sales Service Provided:
-
Overseas engineers provide door-to-door service
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dapeng
-
Weight (KG):
-
300
-
Voltage:
-
220V/Optional
-
Current:
-
15A/Optional
-
Rated Capacity:
-
Other
-
Use:
-
Laser Welding
-
Product name:
-
Robot Arm Automatic Laser Welding Machine
-
Laser source:
-
Raycus MAX IPG nLIGHT Laser Source
-
Laser head:
-
WSX Raytool OSPRI Optional
-
Laser power:
-
1000W-6000W Optional
-
Application:
-
Metal Stainless Steel Laser Welder
-
Packaging Details:
-
Wooden boxes that meet international export standards
-
Axis:
-
6 Axis
-
Laser type:
-
Fiber Laser Source
-
Power supply:
-
380V
-
After-sales Service Provided:
-
Overseas engineers provide door-to-door service
Products Description

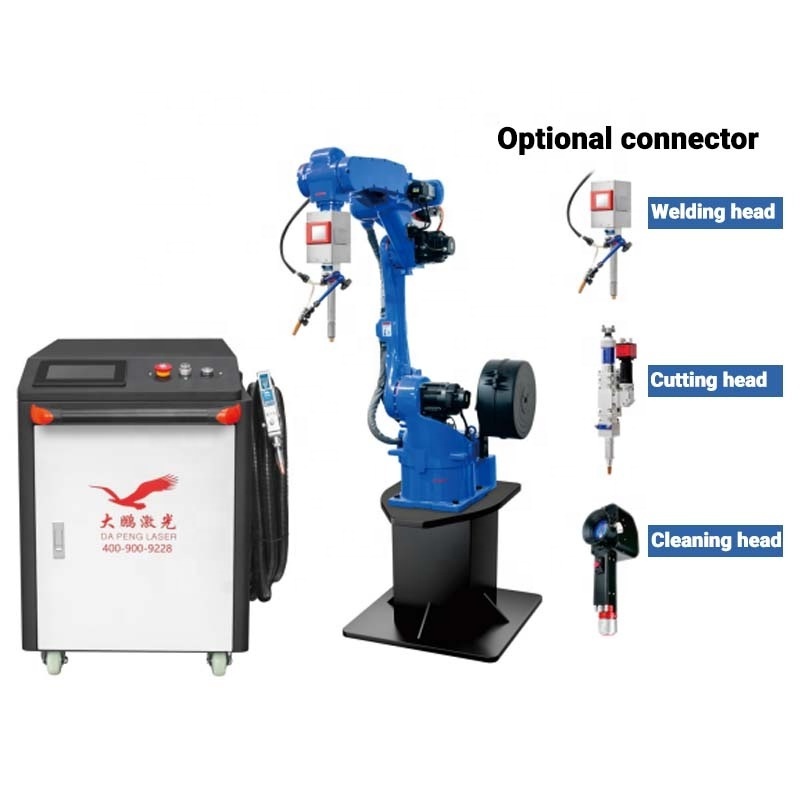

Automatic Welding Industrial Robot Arm 6 Axis For Welding Fiber Laser Robotic Welding Machine
|
Laser Power
|
1000W 1500W 2000W 3000W 4000W 6000W Optional
|
|
Laser Source
|
Raycus/IPG/nLIGHT/Max Optional
|
|
Laser Head
|
Raytool/WSX/OSPRI Optional
|
|
Robot Arm
|
ABB/KUKA/Yaskawa/Fanuc
|
|
Laser Wavelength
|
1070nm
|
|
Axis
|
6 Axis
|
|
Fixture
|
Support Customization
|
|
Operate Mode
|
Continuation/Modulate
|
|
Water Chiller
|
Hanli
|
|
Spot Adjusting Range
|
0.1-3mm
|
|
Repeating Precision
|
±0.01mm
|
|
Voltage
|
380V/3-Phase/50Hz/40A/60A
|
Laser welding material thickness and speed
|
Material type
|
Gas used
|
thickness(mm)
|
laser power(w)
|
welding wire(mm)
|
wire feeding speed(mm/s)
|
scanning speed(mm/s)
|
SCAN WIDTH(mm)
|
Welding frequency(Hz)
|
Duty cycle(%)
|
|
stainless steel
|
argon(Ar)
|
1
|
1000
|
1.0
|
90
|
300
|
2.5
|
1000
|
100
|
|
|
|
1.5
|
1000
|
1.0
|
90
|
300
|
2.5
|
1000
|
100
|
|
|
|
2
|
1500
|
1.2
|
75
|
300
|
3.0
|
1000
|
100
|
|
|
|
2.5
|
2000
|
1.2
|
75
|
300
|
3.0
|
1000
|
100
|
|
|
|
3
|
2000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
|
|
4
|
3000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
|
|
5
|
4000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
|
|
8
|
6000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
carbon steel
|
argon(Ar)
|
1
|
1000
|
1.0
|
90
|
300
|
2.5
|
1000
|
100
|
|
|
|
1.5
|
1000
|
1.0
|
90
|
300
|
2.5
|
1000
|
100
|
|
|
|
2
|
1500
|
1.2
|
75
|
300
|
3.0
|
1000
|
100
|
|
|
|
2.5
|
2000
|
1.2
|
75
|
300
|
3.0
|
1000
|
100
|
|
|
|
3
|
2000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
|
|
4
|
3000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
|
|
5
|
4000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
|
|
8
|
6000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
Galvanized sheet
|
argon(Ar)
|
1
|
1000
|
1.0
|
90
|
300
|
2.5
|
1000
|
100
|
|
|
|
1.5
|
1500
|
1.0
|
90
|
300
|
2.5
|
1000
|
100
|
|
|
|
2
|
2000
|
1.2
|
75
|
300
|
2.5
|
1000
|
100
|
|
|
|
2.5
|
2000
|
1.6
|
60
|
300
|
3.0
|
1000
|
100
|
|
|
|
3
|
3000
|
1.6
|
60
|
300
|
3.0
|
1000
|
100
|
|
|
|
4
|
4000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
|
|
6
|
6000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
Aluminum material(Professional wire feeding tube and wire feeding wheel are required, and remarks need to be made when placing an
order) |
nitrogen(N2)
|
1
|
1000
|
1.0
|
90
|
300
|
2.5
|
1000
|
100
|
|
|
|
1.5
|
1500
|
1.0
|
90
|
300
|
2.5
|
1000
|
100
|
|
|
|
2
|
2000
|
1.2
|
75
|
300
|
2.5
|
1000
|
100
|
|
|
|
2.5
|
2000
|
1.6
|
60
|
300
|
3.0
|
1000
|
100
|
|
|
|
3
|
3000
|
1.6
|
60
|
300
|
3.0
|
1000
|
100
|
|
|
|
4
|
4000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
|
|
|
6
|
6000
|
1.6
|
60
|
300
|
3.5
|
1000
|
100
|
