1. Our engine's PISTON weight is
5%
higher than fraternity, good for such as
Oil Burning, Carbon Deposition, Piston Scuffing,
and
Insufficient Power
.
2. Our engine's CAMSHFT is made of PA66 material, it can perform mechanical reciprocating motion with a load of
100N
at
900 times/min
.
3. The crank case can withstand the durability test for
125 hours
and complies with the
Euro V
emission requirement.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BISON
-
Dimension(L*W*H):
-
505*415*475
-
Weight:
-
46
-
Rated power/speed:
-
9.6KW/3000rpm 11KW/3600rpm
-
Key Selling Points:
-
Long service life, High rigidity
-
Compression ratio:
-
8
-
Ignition system:
-
T.C.I
-
Fule tank volume(L):
-
6.5
-
Scope of application:
-
/
-
Rotate direction:
-
/
-
20GP/40HQ:
-
275/690
-
Certificate:
-
CE/ISO/EURO V
-
OEM/ODM:
-
Available
Quick Details
-
Displacement:
-
439cc
-
Emission Standard:
-
EURO 5
-
Power:
-
18HP
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BISON
-
Dimension(L*W*H):
-
505*415*475
-
Weight:
-
46
-
Rated power/speed:
-
9.6KW/3000rpm 11KW/3600rpm
-
Key Selling Points:
-
Long service life, High rigidity
-
Compression ratio:
-
8
-
Ignition system:
-
T.C.I
-
Fule tank volume(L):
-
6.5
-
Scope of application:
-
/
-
Rotate direction:
-
/
-
20GP/40HQ:
-
275/690
-
Certificate:
-
CE/ISO/EURO V
-
OEM/ODM:
-
Available

PRODUCT ADVANTAGES


Product Advantages
Model
|
BS168F
|
BS168F-1
|
BS170F
|
BS177F
|
BS188F
|
BS190F
|
BS192F
|
||||||
Type
|
Single cylinder, air-cooled, 4-stroke, OHV
|
160/400
|
216/432
|
128/340
|
216/432
|
120/300
|
112/224
|
||||||
Displacement(cc)
|
163
|
196
|
210
|
270
|
389
|
420
|
439
|
||||||
Output(HP)
|
5.5
|
6.5
|
7
|
9
|
13
|
15
|
18
|
||||||
Max power(KW)
|
4.1
|
4.8
|
5.1
|
6.6
|
9.6
|
11
|
13.2
|
||||||
Rated power(KW)
|
3
|
4.3
|
4.4
|
5.5
|
8.6
|
9.6
|
11.8
|
||||||
Bore*stroke(mm)
|
68*45
|
68*54
|
70*54/56
|
77*58
|
88*64
|
90*66
|
92*66
|
||||||
Compression ratio
|
8.5
|
8.5
|
8.5
|
8.2
|
8
|
8
|
8
|
||||||
Ignition system
|
T.C.I
|
|
|
|
|
|
|
||||||
Fule tank volume(L)
|
3.6
|
3.6
|
3.6
|
6.5
|
6.5
|
6.5
|
6.5
|
||||||
G.W (KG)
|
15
|
16
|
17
|
28
|
33
|
34
|
36
|
||||||
Dimension(mm)
|
390*330*340
|
|
|
|
505*415*475
|
|
|
||||||
20GP/40HQ
|
630/1505
|
|
|
|
275/690
|
|
|
HOW WE CONTORL THE QUALITY

The
100-hours test

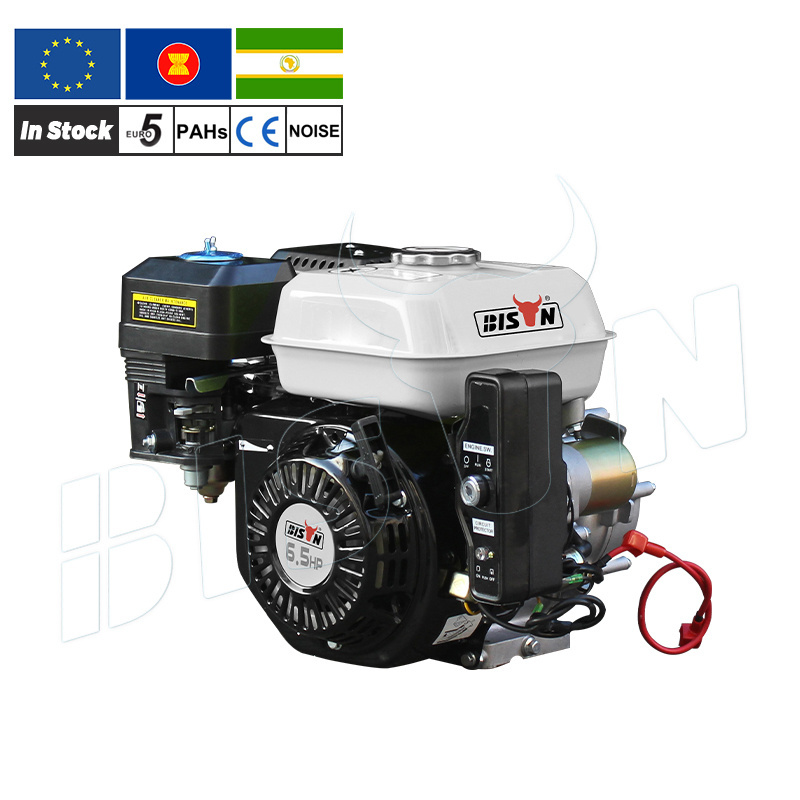

process of a 168F-1(6.5HP) Petrol Engine
|
|
|
|
|
|
|||||
Time
|
|
Engine speed (min)
|
Actual engine power (KW)
|
Actual torque (N.M)
|
Fuel flow rate (kg/h)
|
|||||
Day 1
|
18:00
|
3605
|
4.16
|
11.02
|
1.63
|
|||||
Day 2
|
7:30
|
3622
|
4.20
|
10.98
|
1.61
|
|||||
6.4
|
13:00
|
3590
|
4.10
|
11.12
|
1.58
|
|||||
|
20:00
|
3610
|
4.12
|
11.02
|
1.63
|
|||||
Day 3
|
7:30
|
3605
|
4.16
|
11.02
|
1.63
|
|||||
Day 4
|
13:00
|
3622
|
4.21
|
10.98
|
1.61
|
|||||
|
20:00
|
3602
|
4.16
|
11.00
|
1.62
|
|||||
Day 4
|
7:30
|
3590
|
4.10
|
11.12
|
1.58
|
|||||
|
13:00
|
3611
|
4.12
|
11.02
|
1.63
|
|||||
|
20:00
|
3595
|
4.08
|
11.10
|
1.58
|
|||||
Day 5
|
7:30
|
3601
|
4.16
|
11.02
|
1.63
|
|||||
|
13:00
|
3605
|
4.16
|
11.02
|
1.63
|
|||||
|
20:00
|
3605
|
4.16
|
11.02
|
1.63
|
|||||
Day 6
|
7:30
|
3622
|
4.21
|
10.98
|
1.61
|
|||||
|
13:00
|
3602
|
4.16
|
11.00
|
1.62
|
|||||
|
20:00
|
3608
|
4.21
|
11.02
|
1.63
|
FAST COMPLAINTS FEEDBACK
WHO IS BISON
TAIZHOU BISON MACHINRY INDUSTRY CO.,LTD who is a professional manufacturer of
Generators,Engines,Water Pump,High Pressure Washer and Parts
.BISON has more than
20+
Technology Engineers and
15+
Designers for OEM Service.BISON has more than
50000+
square meters of workshops and more than
300+
workers to deliver goods on schedule.
BISON eagerly anticipates the opportunity to establish itself as your paramount partner.
Explore our A-level services here, tailored for your utmost satisfaction.
BISON'S EXHIBITIONS
CUSTOMER REVIEWS
FAQ
Multifunctional BISON gasoline engines can be used in a wide range of equipment, from lawn mowers and generators to pressure washers and snow blowers,agriculture machinery,industry machinery. Its universality ensures meeting various needs of different industries. Ease of Operation BISON designed petrol engines more notice one user-friendliness and compactness. BISON understand demand for easy transportation and mobility in kinds of applications. Bison petrol engine more easy to start and operate,and it's not just suitable for personal use also both for professional. Low Noise BISON know noise can be an issue,so BISON gasoline engine have incorporated advanced technology, higher quality components and exact manufacturing. This will minimize operating noise and ensure a more comfortable working environment. Environment Protection As a responsible manufacturer, BISON is committed to reducing environmental pollution. Many gasoline engines of BISON adopt innovative technologies that help reduce emissions and improve fuel efficiency. BISON continuously researches and develops updated technologies to make our engines more environmentally friendly and contribute to global environmental protection work.
How to choose gasoline engine? - Gasoline engines wholesale guide written by BISON experts
Precautions before purchasing a gasoline engine
As a sales representative of BISON, I am pleased to provide you with guidance on purchasing small gasoline engines. BISON is proud of its excellent quality and unparalleled performance. Here are some key factors to consider:
Power Output
To ensure that the engine is capable of performing the task, please calculate the necessary power output based on the expected application. BISON engines are designed with different power outputs to meet different needs. BISON's engines are capable of handling everything from small machinery to large equipment. Please remember that an appropriate power output ensures efficient operation and lifespan.
Size and Weight
Consider the size and weight of the engine to ensure that it meets the portability requirements for planned use. BISON's engine has a compact structure, light weight, and unparalleled portability. Therefore, it is very suitable for applications that require mobility or limited space.
Fuel Performance
Check the fuel efficiency of the engine as it can affect operating costs and the environment. The BISON engine is designed to achieve optimal fuel efficiency. This means lower operating costs and less impact on the environment.
Product Scope
BISON offers a variety of engine models, each designed for specific applications. Whether you need an engine for generators, water pumps, or agricultural equipment, BISON can meet your needs. In addition, BISON also offers two stroke and four stroke engines.
Starting Device
BISON offers two models: Recoil start and Electric start. You can choose according to your own ideas. BISON's electric start model can be easily started by pressing a button, eliminating the physical burden of pull start.
Compliance with Emission Standards
All BISON engines comply with international emission standards. BISON is committed to providing power to your equipment while protecting the environment.
Price
BISON provides competitive prices without compromising quality. BISON provides value for money products, making it the first choice for buyers seeking cost-effective solutions.
Noise Level
For many users, noise level is an important factor. Some applications may require quieter operation, so the noise level generated by the engine needs to be considered. The BISON engine adopts advanced technology to ensure quiet operation and provide a more comfortable working environment.
Maintenance Requirements
Evaluate the maintenance requirements of the engine, including oil replacement, air filter replacement, and spark plug inspection. The BISON engine was designed with consideration for ease of user maintenance. From changing the oil to changing the air filter, BISON provides you with convenience, allowing you to focus on completing the work.
Safety Functions
Security is the primary task of BISON. BISON's engine has functions such as low oil shutdown, overload protection, and spark suppressor. BISON believes that while you work, BISON will also ensure your safety.
Guarantee
Check the manufacturer's warranty and customer support for troubleshooting or assistance. As a BISON customer, you will enjoy comprehensive warranty services and can contact BISON's professional customer support team. BISON is always ready to help you solve any problems or questions.
