Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WENSUI
-
Weight (KG):
-
22 KG
-
Applicable Industries:
-
Plastic Manufacturing
-
Power:
-
3phase 380V 60Hz
-
Base size:
-
18*18*dia8cm
-
Dimension:
-
101*70*141cm
-
Name:
-
Plastic Dryer
-
Keyword:
-
Hot Air Dryer Hopper
-
Application:
-
Injection Molding Machine
-
Function:
-
Dry Plastics Raw Material
-
Usage:
-
PE PP PET ABS PVC
-
Hopper Capacity:
-
12~800 Kg
Quick Details
-
Electric Heating Power(kW):
-
1.6 kW
-
Capacity (kg):
-
12 kg
-
Blower Power(W):
-
75 W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WENSUI
-
Weight (KG):
-
22 KG
-
Applicable Industries:
-
Plastic Manufacturing
-
Power:
-
3phase 380V 60Hz
-
Base size:
-
18*18*dia8cm
-
Dimension:
-
101*70*141cm
-
Name:
-
Plastic Dryer
-
Keyword:
-
Hot Air Dryer Hopper
-
Application:
-
Injection Molding Machine
-
Function:
-
Dry Plastics Raw Material
-
Usage:
-
PE PP PET ABS PVC
-
Hopper Capacity:
-
12~800 Kg
Product Images
Working Principle:

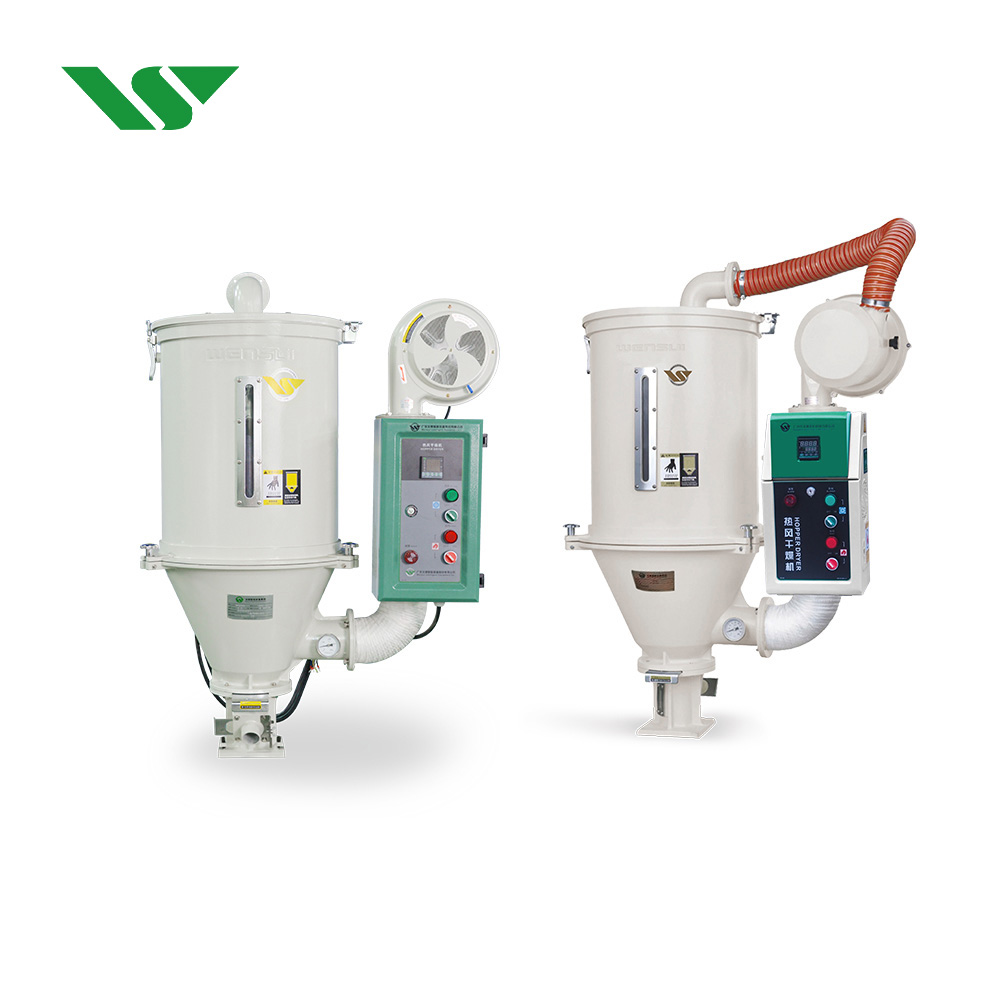

WSDB hopper dryer offers even hot air to dry plastic material efficiently. It can be mounted onto injection molding machine, eliminating possible moisture. They can also be used with honeycomb dehumidifier for better drying.
Features:
* Material contact parts are made of stainless steel.
* Precise die cast aluminum housing with smooth surface and good heat preservation.
* Adopted low noise blower, and the optional air filter ensures material purity.
* Proportional deviation display thermostat controls temperature accurately.
* Material tank is installed with glass for inspection.
* Curved heating cylinder is designed to avoid powder jam and overheat.
* Hopper is designed for easy opening, suitable for all robots.
* Precise die cast aluminum housing with smooth surface and good heat preservation.
* Adopted low noise blower, and the optional air filter ensures material purity.
* Proportional deviation display thermostat controls temperature accurately.
* Material tank is installed with glass for inspection.
* Curved heating cylinder is designed to avoid powder jam and overheat.
* Hopper is designed for easy opening, suitable for all robots.
Product Parameters
|
Model
|
Capacity (kg)
|
Heating (kW)
|
Blower (W)
|
Power (V)
|
Dimension (cm)
|
Base Size (cm)
|
Net Weight (kg)
|
|
WSDB-12
|
12
|
1.6
|
50
|
380
|
64×44×76
|
11×11
|
22
|
|
WSDB-25
|
25
|
3.0
|
122
|
380
|
76×50×104
|
16×16
|
34
|
|
WSDB-50
|
50
|
4.5
|
157
|
380
|
87×54×121
|
16×16
|
45
|
|
WSDB-75
|
75
|
6.5
|
246
|
380
|
94×60×131
|
16×16
|
56
|
|
WSDB-100
|
100
|
6.5
|
246
|
380
|
101×70×141
|
18×18
|
68
|
|
WSDB-150
|
150
|
9
|
350
|
380
|
110×74×170
|
20×20
|
78
|
|
WSDB-200
|
200
|
12
|
350
|
380
|
118×84×176
|
23×23
|
110
|
|
WSDB-300
|
300
|
15
|
400
|
380
|
142×100×183
|
27.5×27.5
|
152
|
|
WSDB-400
|
400
|
15
|
400
|
380
|
148×106×202
|
27.5×27.5
|
170
|
|
WSDB-600
|
600
|
20
|
1000
|
380
|
158×116×240
|
28×28
|
280
|
|
WSDB-800
|
800
|
30
|
2200
|
380
|
177×118×254
|
28×28
|
380
|
