Quick Details
-
Product Name:
-
Hall Encoder Worm Wheel and Worm Reduction Motor
-
Keywords:
-
6v Dc Motor
-
Application:
-
Robots
-
Motor type:
-
encoder motor
Quick Details
-
Speed(RPM):
-
2.9
-
Continuous Current(A):
-
0.5-2.6
-
Efficiency:
-
IE 2
-
Product Name:
-
Hall Encoder Worm Wheel and Worm Reduction Motor
-
Keywords:
-
6v Dc Motor
-
Application:
-
Robots
-
Motor type:
-
encoder motor

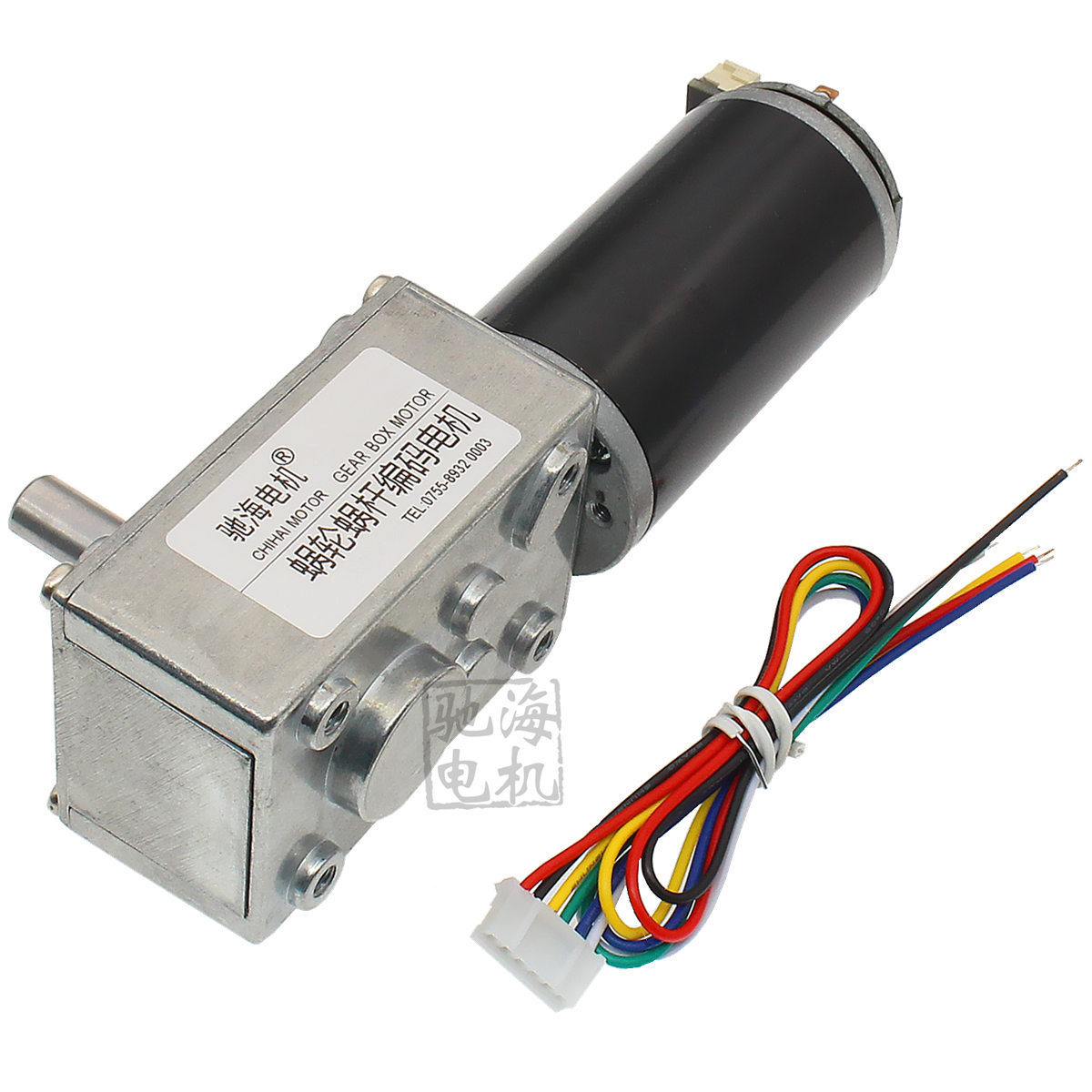

ChiHai Motor CHW-GW4058-3162 Hall Encoder Worm Wheel and Worm Reduction Motor Applied to Robots and Automation Equipment
| Brand: |
chihai motor |
|
Product Type: |
CHW-GW4058-3162 Hall Coded Worm Gear Reduction Motor |
|
Features: |
worm gear and worm deceleration mechanism, all-metal spur gear structure, magnetic Hall encoder AB dual-phase |
|
Motor Conditions: |
|
|
Outer Diameter Size: |
40mm * 125mm * 35mm (See figure drawing below for details) |
|
Axle Diameter: |
Outlet Axle Diameter 8mm D Type D Thickness 7mm (batch customizable) |
|
Length of outlet shaft: |
15mm D length, 13mm (batch customizable) |
|
Weight: |
about 350 grams (different deceleration ratios have different weights) |
|
Applications: |
Intelligent Robot, Electric Curtain, Intelligent Balancing Car, Intelligent Manipulator, etc. |
Encoder information:
If you are not sure whether it is what you need,you need our support
We have stock for below parameters.
Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.
At present, our company focuses on developing various types of motors with voltage between DC 1VC and DC 30V, and motor diameter between 8 and 51mm ( Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories. ) .
Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.
Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!
