Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model:
-
GRP2601P
-
Display screen:
-
132x48 LCD screen without backlight
-
Physical interface:
-
100M dual network port, support RJ9 headphone jack
-
POE:
-
built-in PoE
Quick Details
-
Type:
-
VoIP Phone
-
Brand Name:
-
Grandstream
-
Model Number:
-
GRP2601P
-
Place of Origin:
-
Guangdong, China
-
Model:
-
GRP2601P
-
Display screen:
-
132x48 LCD screen without backlight
-
Physical interface:
-
100M dual network port, support RJ9 headphone jack
-
POE:
-
built-in PoE
Product Description

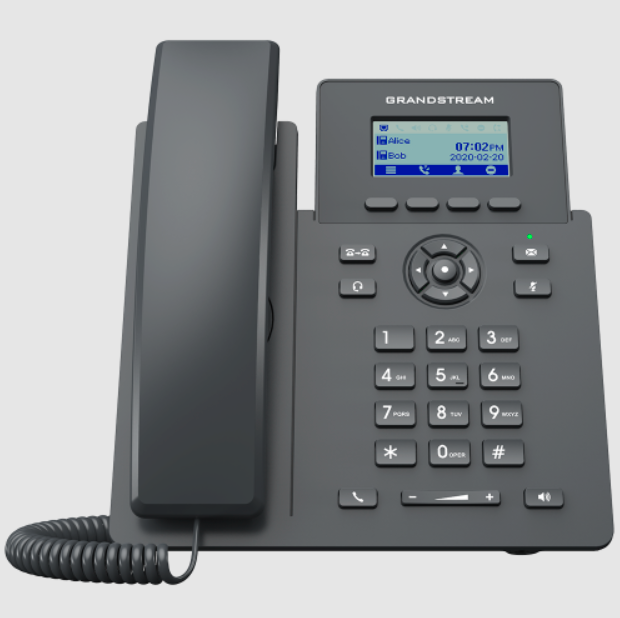

Grandstream Carrier-Grade IP Phone GRP2601P with 2 SIP account and 2 lines
integrated PoE
Part of the GRP series of Carrier-Grade IP Phones, the GRP2601 is an essential 2-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including 5-way voice conferencing to maximize productivity, integrated PoE (GRP2601P), EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2601 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the basic needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2601 offers an easy-to-use and easy-to-deploy voice endpoint.
Product Features
* 2 SIP account, 2 lines
* GDMS online device management and provisioning
* 5-way audio conferencing for easy conference calls
* Equipped with noise shield technology to minimize background noise
* Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
* The GRP2601P includes built-in PoE to power the device and give it a network connection
* Enterprise-level protection including secure boot, dual firmware images and encrypted data storage
* GDMS online device management and provisioning
* 5-way audio conferencing for easy conference calls
* Equipped with noise shield technology to minimize background noise
* Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
* The GRP2601P includes built-in PoE to power the device and give it a network connection
* Enterprise-level protection including secure boot, dual firmware images and encrypted data storage
Details Images
Product Paramenters
1. Technical specifications: 4 SIP accounts, support 2 call lines; 8 virtual multi-function buttons
2. Display screen: 132x48 LCD screen backlight display;
3. Physical interface: 100M dual network port, support RJ9 headphone jack, built-in EHS for Plantronics, Jabra, Sennheiser wireless headphones;
4. Telephone functions: call hold/transfer/forward/waiting, five-party conference, call parking/pickup, 2000 contacts, 800 call records, off-hook automatic dialing, automatic answering, one-key dialing, flexible dialing Planning, hot desking, custom ringtones, server redundancy/failover, multiple voices, call parking/pickup/sharing/bridging, broadcasting, local recording (pending), support for dual backup;
5. Configuration management: support remote unified batch deployment, UCM zero configuration use, support GDMS deployment configuration;
6. Voice effect: support handle, earphone, free high-definition voice, earphone noise cancellation algorithm; advanced AJB algorithm; soundproof cover algorithm (support headphone mode and handle mode), support OPUS;
7. Others: support wall-mounted installation, support desktop bracket 2 angles are optional.
|
Protocols/Standards
|
|
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A
|
|
record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-
|
|
069, SNMP, 802.1x, TLS, SRTP, IPv6
|
|
Network Interfaces Dual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GRP2601P only)
|
|
Graphic Display 132 x 48 (2.21’’) LCD display
|
|
Feature Keys
|
|
4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 8
|
|
dedicated function keys for: MESSAGE(with LED indicator), TRANSFER,HEADSET,
|
|
MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
|
|
Voice Codecs and Capabilities
|
|
Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS,
|
|
in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC,
|
|
AGC
|
|
Telephony Features
|
|
Hold, transfer, forward, 5-way conference, call park, call pickup, downloadable
|
|
phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 800 records),
|
|
off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking,
|
|
personalized music ringtones and music on hold, server redundancy and fail-over
|
|
Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics & Jabra &Sennheiser headsets)
|
|
Base Stand Yes, 1 angle position available (45°), Wall Mountable (*wall mount sold separately)
|
|
QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
|
|
Security
|
|
User and administrator level passwords, MD5 and MD5-sess based authentication,
|
|
256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control,
|
|
secure boot
|
|
Multi-language English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese,
|
|
Russian, Croatian and more
|
|
Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR- 069 or AES encrypted XML
configuration file |
|
Power & Green Energy Efficiency Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;PoE:
|
|
IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2601P Only)
|
|
Temperature and Humidity
|
|
Operation: 0°C to 40°C
|
|
Storage: -10°C to 60°C
|
|
Humidity: 10% to 90% Non-condensing
|
|
Package Content GRP2601/2601P phone, handset with cord, base stand, universal power supply (GRP2601 only), network cable, Quick
Installation Guide |
|
Physical Dimension: 208mm (L) x 180mm (W) x 63.4mm (H) (with handset) Unit weight:650g; Package weight:810g (860g for GRP2601)
|
|
Compliance
|
|
FCC: Part 15 Class B; FCC Part 68 HAC;
|
|
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1;
|
|
RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;
|
|
IC: ICES-003; CS-03;
|
