Quick Details
-
Brand Name:
-
HXE
-
Model Number:
-
Micro USB Waterproof Cable
-
Place of Origin:
-
Guangdong, China
-
Function:
-
Data Transfer Power Charging, Charging+Data Transfer
-
Product name:
-
Micro USB 2.0 Panel Mount Connector IP67 Waterproof Cable
-
Certificate:
-
RoHS IATF16949 Reach ISO9001
-
Connector Type:
-
Standard USB Connector
-
Connector A:
-
Micro USB 5Pin Male
-
Connector B:
-
Micro USB 5Pin Female
-
Wire Gauge:
-
28AWG/1P+24AWG/2C
-
Insulation Material:
-
PVC
-
Conductor Material:
-
Tinned Copper
-
Cable Length:
-
1-10m/Custom Lengths
Quick Details
-
USB Type:
-
Micro-USB
-
Material:
-
PVC, ABS, Pure Copper, Metal, Tinned Copper, Zinc Alloy
-
Connector:
-
USB 2.0 Connector, Nickel Plated, micro
-
Brand Name:
-
HXE
-
Model Number:
-
Micro USB Waterproof Cable
-
Place of Origin:
-
Guangdong, China
-
Function:
-
Data Transfer Power Charging, Charging+Data Transfer
-
Product name:
-
Micro USB 2.0 Panel Mount Connector IP67 Waterproof Cable
-
Certificate:
-
RoHS IATF16949 Reach ISO9001
-
Connector Type:
-
Standard USB Connector
-
Connector A:
-
Micro USB 5Pin Male
-
Connector B:
-
Micro USB 5Pin Female
-
Wire Gauge:
-
28AWG/1P+24AWG/2C
-
Insulation Material:
-
PVC
-
Conductor Material:
-
Tinned Copper
-
Cable Length:
-
1-10m/Custom Lengths
Rated voltage: 30V
Insulation resistance: ≥100 mΩ
Rated current: 1A
On resistance: ≤50 m Ω
Rated temperature: -20℃ ~ +80℃
Connector specification
Connector Pins: 5
External module: PA + GF
Conductor: bronze gold plated
Screw/nut: PA + GF
Protection class: IP67
Wire specifications
Wire Gauge:28AWG/1P+24AWG/2C
Wire type: standard USB wire
Wire length: 30cm, 1m or customized
Factory Custom

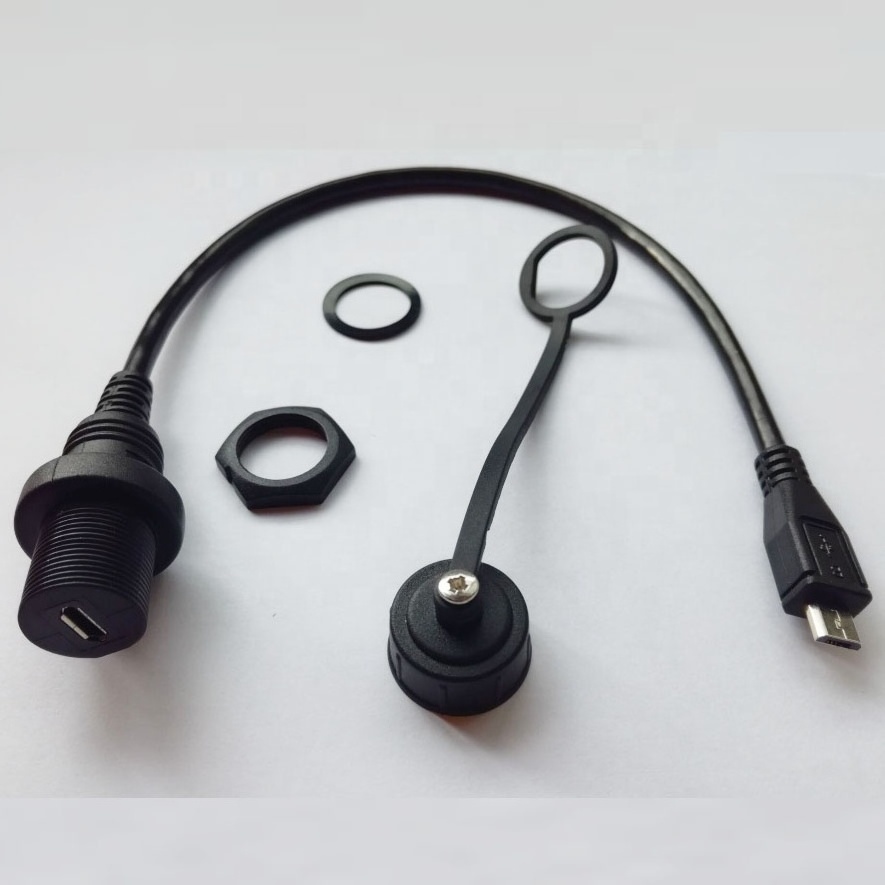

IP67 waterproof usb cable panel mount micro 5p male to femaleconnector usb 2.0 extension cable 0.3M Black
1. Conductor is used, 24/28AWG bare copper wire, aluminum foil attached body and ground wire. Reduce signal transmission
attenuation. Extremely effective;
2. The sheath material is made of PVC, and the outer part is made of black PU, which is soft and tensile.
3. Light and beautiful, easy to carry around;
4. It is used on the dashboard of automobile yachts, motorcycles, etc., waterproof and dustproof, supports hot swap, plug and
play;
5. High quality and high speed, exquisite workmanship, high quality and low price;
6. Convenient and quick to convert USB interface type, the same 2.0 transmission speed; support USB 2.0 interface, transmission
speed up to 480Mbps.
7. Support Win98/2000/XP/Vista/Win10, Mac OS V9.0 or higher;
8. Scope: Suitable for all digital products using MicroUSB interface 9. Fine workmanship, full use of materials, multi-layer
shielding anti-interference, to ensure fast signal transmission, desktop and notebook universal.
