Quick Details
-
Power (kW):
-
11000
-
Range of Spindle Speed(r.p.m):
-
4000 - 4500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gelgoog
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
850*700*1450mm
-
Weight (KG):
-
440 KG
-
Fineness:
-
2-120 Mesh
-
Function:
-
Make Dry Powder
Quick Details
-
Output (kg/h):
-
60 - 150 kg/h
-
Feeding Size (mm):
-
10 - 200 mm
-
Output Size (mesh):
-
10 - 20 mesh
-
Power (kW):
-
11000
-
Range of Spindle Speed(r.p.m):
-
4000 - 4500 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gelgoog
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
850*700*1450mm
-
Weight (KG):
-
440 KG
-
Fineness:
-
2-120 Mesh
-
Function:
-
Make Dry Powder
Product Description
Product Description

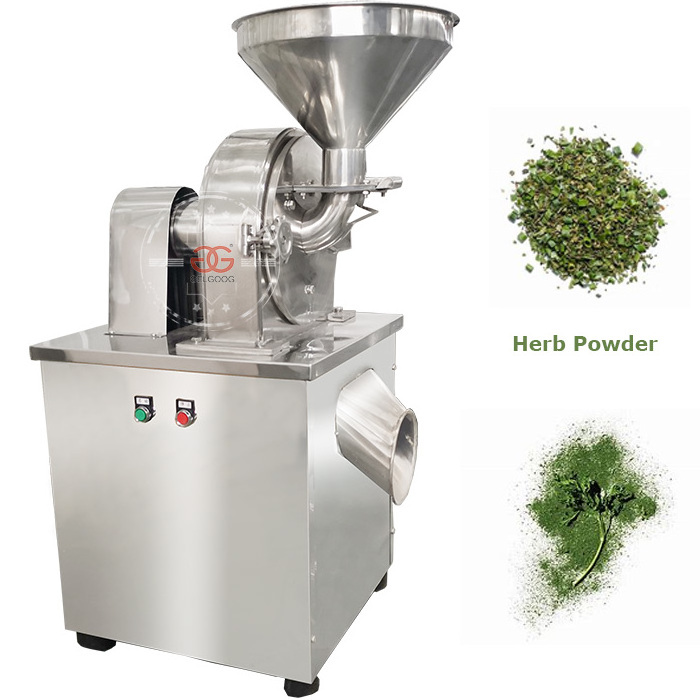

Introduction of Commercial Herb Spice Grinder
1.Commercial herb spice grinder has a simple structure design for long lasting, stable, low noise, high performance and easy maintenance.
2. The fixed and movable knives revolve in a high speed in the chamber.
3. Materials will then flow out from the bottom exit. The fineness is adjustable by adopting various sift.
Application of Spice Grinder
This spice grinder uses the relative movement between the active of fluted disc and the fixed fluted disc to impact, grind and crush the target materials.
The crushed material can enter the collection box by the centrifugal force. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box.
Features of Industrial Chili Grinding Machine
The industrial chili grinding machine designed according to "GMP" standard, is made of stainless steel, thus to avoid dust flying, improve the utilization of raw material and decrease the production cost. Currently, the machine has been on the world advanced level.
Causes and troubleshooting of Turmeric Spices Powder Making Machine
(1) The feed rate is too fast, the load is increased, causing blockage
(2) The discharge pipe is not smooth or blocked
(3) The claws or hammer pieces, aging, screen mesh holes are closed, broken, and the water content of the crushed material is too high, which will make the universal crusher clog.
Parameters Technology Of seaweed pulverizer for fine powder
|
Model
|
Capacity(kg/h)
|
Power(Kw)
|
Weight(KG)
|
Dimensions(mm)
|
|
GG-S20B
|
50-100KG/H
|
4
|
140
|
600*500*1170
|
|
GG-S30B
|
50-200KG/H
|
5.5
|
220
|
750*600*1370
|
|
GG-S40B
|
100-400KG/H
|
11
|
440
|
850*700*1450
|
|
GG-S50B
|
200-500KG/H
|
15
|
560
|
800*950*1550
|
|
GG-S60B
|
200-800KG/H
|
18.5
|
620
|
900*1100*1750
|
Contact Us
Contact Us
Detailed Images
Detailed Images
FAQ
FAQ
Q1. What materials can the machine grind? Coal, gypsum, salt, sugar, various seasonings, pepper, fennel, chilli,cinnamon, herbs, spices. Q2. What are the material processing requirements? The moisture content of the material is less than 5%, and the oil content is less than 20%. Q3. What is the fineness of the machine? The general material is 20-120 mesh, the theory is the finest to 120 mesh, and 100 mesh is the best in actual use. Q4. What is the machine consumables? Screen, pulley, bearing, smashing outer knife Q5. How to adjust the fineness of the finished product? By changing the screen size, the screen size is 85*910mm Q6. Water cooling device settings. When the material is highly sensitive to heat (at 50 °C), the water cooling device can be added, that is, the water-cooling jacket is added in the crushing chamber, and the cooling water is circulated in the crushing chamber to achieve the purpose of cooling.
