- Product Details
- {{item.text}}
Quick Details
-
Power:
-
4000
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
2000*1540*1800mm
-
Processing Types:
-
Glass Bottle
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RYBO
-
Voltage:
-
380V
-
Power:
-
4000
-
Weight:
-
600 KG
-
Dimension(L*W*H):
-
2000*1540*1800mm
-
Processing Types:
-
Glass Bottle
Product Description

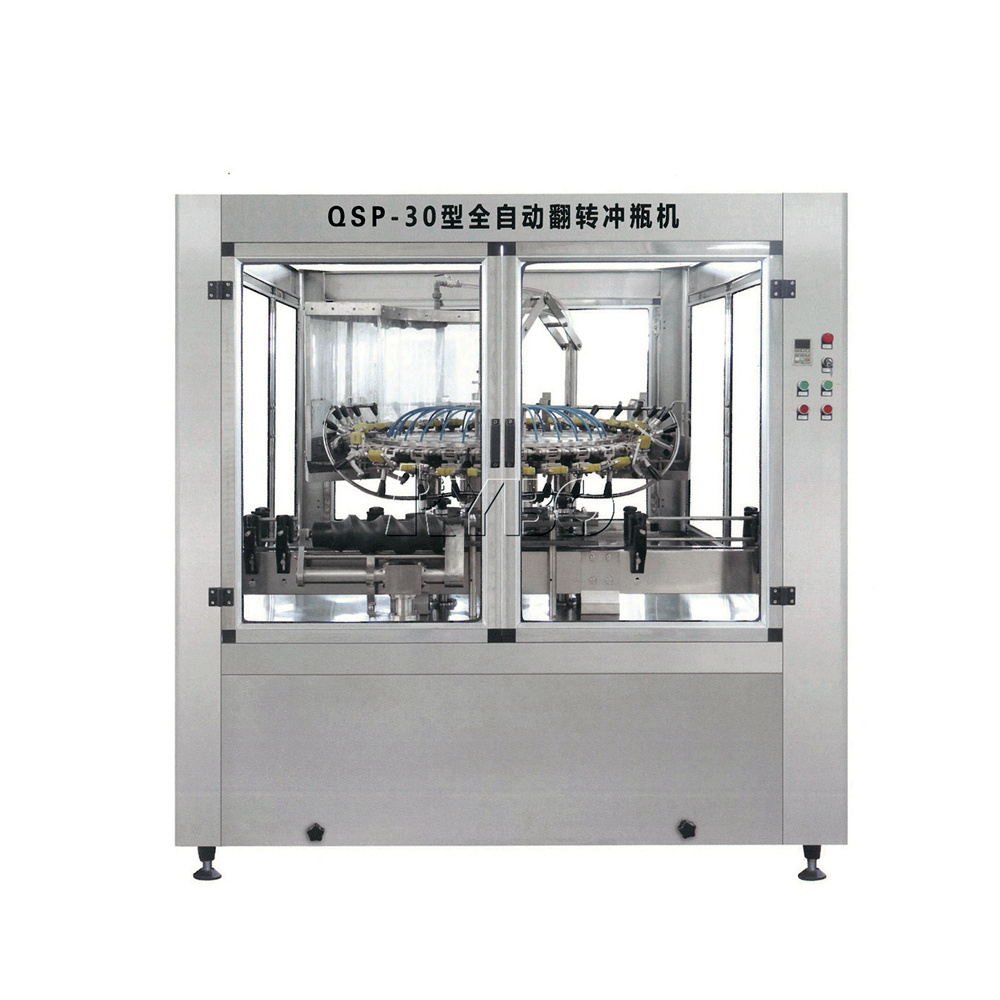

Automatic Bottle Washing Machine
The rotary bottle rinsing machine is mainly used for cleaning various plastic bottles or glass bottles. The machine adopts soft clips to clamp the neck of bottles, turn the bottles 180 degrees, and continuously spray the inside and outside of the bottles, with high flushing pressure, high speed and good washing effect.
Specification
Features:
1. Strong elastic gripper, grip the bottle stably without breaking the bottle.
2. The continuous tracking type flushing has high efficiency and stable and reliable flushing effect.
3. No bottle, no flushing, more water saving.
4. Accurate positioning, slightly high pressure flushing, flushing more cleanly.
2. The continuous tracking type flushing has high efficiency and stable and reliable flushing effect.
3. No bottle, no flushing, more water saving.
4. Accurate positioning, slightly high pressure flushing, flushing more cleanly.
|
Model
|
Heads Quantities (PCS)
|
max capability (BPH)
|
Power (KW)
|
Applicable Bottle Height (mm)
|
Applicable Bottle Diameter (mm)
|
Water Consumption (m3/H)
|
|
QSP-16
|
16
|
2000-3000
|
1.5
|
100-360
|
25-100
|
0.7
|
|
QSP-18
|
18
|
3000-4000
|
2
|
100-360
|
25-100
|
2.1
|
|
QSP-24
|
24
|
5000-6000
|
2.85
|
100-360
|
25-100
|
2.6
|
|
QSP-30
|
30
|
7000-9000
|
3.6
|
100-360
|
25-100
|
3
|
|
QSP-48
|
48
|
10000-12000
|
4.8
|
100-360
|
25-100
|
3.6
|
|
QSP-60
|
60
|
12000-15000
|
6.5
|
100-360
|
25-100
|
4.5
|
We Can Supply Turnkey Project of Filling Line From A to Z
We can supply the complete filling line including
bottle blowing machine, bottle washing filling capping machine, bottle drying machine, labeling machine, group packing machine,
Palletizer,
ect.
