Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DragonPower
-
Dimension(L*W*H):
-
240X60mm
-
Weight:
-
1 KG
-
Warranty:
-
Ceramic infrared heater for one year, 1-1.5 years
-
Working Temperature Range:
-
1 - 800 ℃
-
infrared ceramic heating:
-
ceramic infrared tile heater/infrared ceramic tile heater
-
Power:
-
400 watt, 500 watt, 650 watt ...
-
Clips:
-
straight type/wave type
-
Shape:
-
arc,flat
-
Insulation resistance:
-
≥5MO
-
Infrared heater:
-
High watt density
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
Electric
-
Voltage:
-
230v, 220-230V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DragonPower
-
Dimension(L*W*H):
-
240X60mm
-
Weight:
-
1 KG
-
Warranty:
-
Ceramic infrared heater for one year, 1-1.5 years
-
Working Temperature Range:
-
1 - 800 ℃
-
infrared ceramic heating:
-
ceramic infrared tile heater/infrared ceramic tile heater
-
Power:
-
400 watt, 500 watt, 650 watt ...
-
Clips:
-
straight type/wave type
-
Shape:
-
arc,flat
-
Insulation resistance:
-
≥5MO
-
Infrared heater:
-
High watt density

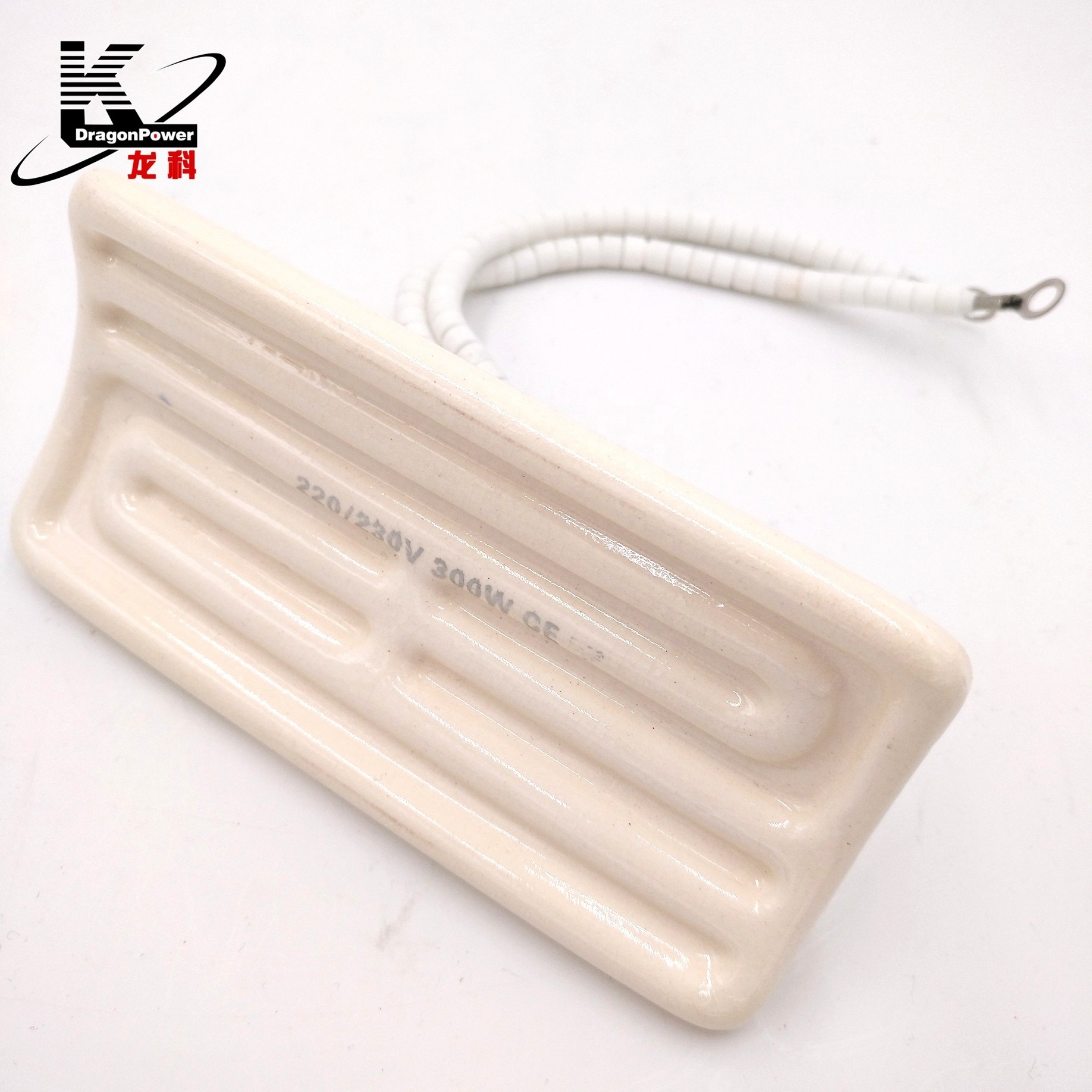

Infrared ceramic heater/infrared ceramic emitter/infrared ceramic heating lamp
Ceramic infrared heater panel use conductor containing more than 95% silicon and quartz glass hich can resist 1800 °C as main material. They create infrared radiation after chemical reaction. The spiral Cr20Ni80 resistance wire is cast into the conductor. With its advantages in thermal efficiency, radiation, safety and energy conservation, infrared ceramic heaters are widely used in plastics, chemicals, light industrial, electronic, pharmaceutical, food and other industries. It’s mainly used for vacuum forming, curing paint drying, bakery, medicine dehydration, and medical care.
Ceramic infrared heater panel :
1. Cr20Ni80 resistance wire
2. HIgh watt density
3. ISO9001, CE and RoHS certified
4. Various sizes and colors to your needs
5. size:292*92mm,245*60mm,122*122mm,122*60mm,60*60mm
Ceramic infrared heater is made out of ceramics.
1. Radioactive properties: a maximum monochromatic radiation components reached 0.9, the normal total radiation rate is greater than 0.83.
2. Thermal response time: from room normal temperature to a constant value of the radiant panel surface temperatures less than 20 minutes.
3. Degeneration of hot and cold resistance: five alternating hot and cold test of no peeling, no cracking.
Table:
|
Model |
Size(mm) |
Voltage(V) |
Power(W) |
Key Technical Indexes |
|
LK-YHWTC- L245Χ60 |
L245Χ60 |
230 |
800 |
1.Use condition: environment temperature -20 ~ +60°C, Relative temperature <95% 2.Leakage current:<0.5MA 3.Insulation resistance:≥5MO 4.Ground resistance:<0.1O 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance:100-1200°C |
|
LK-YHWTC- L245Χ60 |
L245Χ60 |
230 |
600 |
|
|
LK-YHWTC- L120Χ60 |
L120Χ60 |
230 |
400 |
|
|
LK-YHWTC- L120Χ120 |
L120Χ120 |
230 |
400 |
|
|
Note: Other models are available according to your specifications. Please refer to the Order Guide |
||||
Plywood case or paper carton for ceramic infrared heater
