1. Available to choose the height from 4m to 18m.All kind of height can be chosen.
2. Electrical box fixed on the platform base, and equipped with a stop button, in case of accidents.
3. It can be move in a variety of ways, hand push, pull-type, self-style and vehicle-mounted style.
4. Removable type guardrail, convenient disassembly, can reduce the storage space, convenient in and out of the places where
highly restricted.
5. The scissor made of strong manganese steel rectangular tube with high strength, stability and reliability advantages.
6. The widely working platform can bear heavy load. Multiple workers can operate the platform, because it has widely high attitude
working ranges.
7. Configuring toolbox: basic tolls can be placed to meet the need of quick maintenance.
8. Telescopic support and adjustment of the support feet to ensure stable and reliable use.
9. Polyurethane paint with good corrosion resistant. Different colors can be freely choose by customers.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
1.1Kw/220V
-
Min. Lifting Height:
-
4m
-
Table Size:
-
1800*820mm
-
Overall Dimensions:
-
1900*960*1200mm
-
Weight:
-
700 kg
-
Product name:
-
Hydraulic Platform Lift
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
-
Type:
-
Hydraulic Cylinder Drive
-
Application:
-
Widely
-
Usage:
-
Higher Level
-
Name:
-
Lifting Equipment Electric Scissor Lift
-
Material:
-
High Strength Steel
-
Lift Drive:
-
Hydraclic
-
Lifting system:
-
Hydraulic Lift Cylinders
-
Color:
-
Customised
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Maysun
-
Power:
-
1.1Kw/220V
-
Min. Lifting Height:
-
4m
-
Table Size:
-
1800*820mm
-
Overall Dimensions:
-
1900*960*1200mm
-
Weight:
-
700 kg
-
Product name:
-
Hydraulic Platform Lift
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
-
Type:
-
Hydraulic Cylinder Drive
-
Application:
-
Widely
-
Usage:
-
Higher Level
-
Name:
-
Lifting Equipment Electric Scissor Lift
-
Material:
-
High Strength Steel
-
Lift Drive:
-
Hydraclic
-
Lifting system:
-
Hydraulic Lift Cylinders
-
Color:
-
Customised
Product Overview

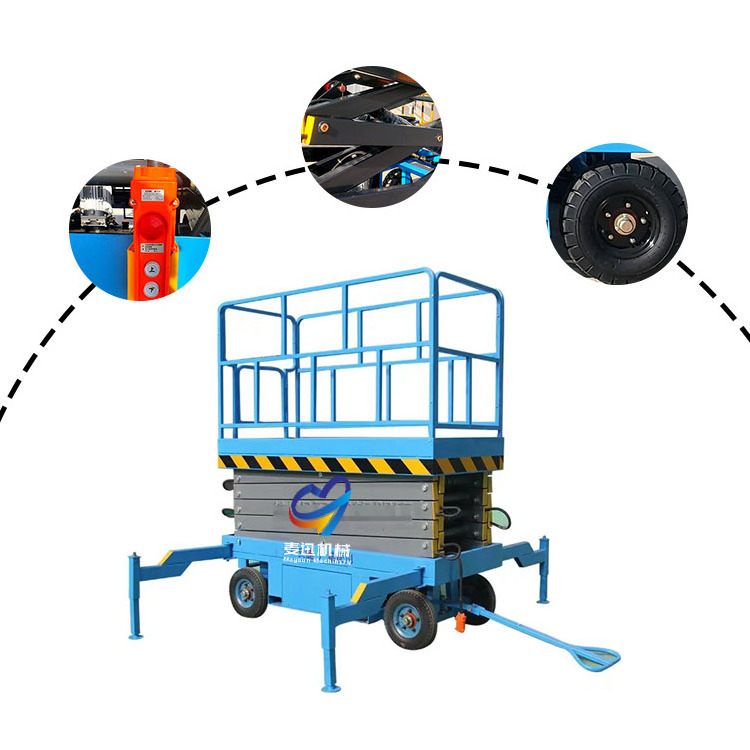

3 m- 20 m electric hydraulic platform desktop elevator self scissor elevator
Our mobile scissor lift can be chosen height from 4m to 18m,It can move in a variety of ways:hand push, pull-type, self-style and vehicle-mounted style.The removable type guardrail, can reduce the storage space, convenient in and out of the places where highly restricted.It is assembled with emergency stop button,the platform will slowly down when press the button in an emergency occasion.This kind of scissor lift can reduce your investment cost, improve work efficiency and ensure the safety of your work.
Storage status
Stable support
Personnel operation
Our Advantages
PRODUCT SPECIFICATIONS
|
Model
|
Platform Size
|
Load Capacity
|
Free Height
|
Overall Dimensions
|
Self-Weight
|
|
MSPT0.32-4
|
2100*830mm
|
320Kg
|
4m
|
2250*950*1200mm
|
880kg
|
|
MSPT0.32-6
|
2100*830mm
|
320Kg
|
6m
|
2250*950*1200mm
|
880kg
|
|
MSPT0.32-7
|
2100*830mm
|
320Kg
|
6.8m
|
2250*950*1280mm
|
970kg
|
|
MSPT0.32-8
|
2100*930mm
|
320Kg
|
8m
|
2250*1060*1380mm
|
1050kg
|
|
MSPT0.32-9
|
2100*930mm
|
320Kg
|
9m
|
2250*1060*1500mm
|
1165kg
|
|
MSPT0.32-10
|
2100*1230mm
|
320Kg
|
10m
|
2250*1350*1530mm
|
1360kg
|
|
MSPT0.32-11
|
2100*1230mm
|
320Kg
|
11m
|
2250*1350*1650mm
|
1400kg
|
|
MSPT0.32-12
|
2550*1530mm
|
320Kg
|
12m
|
2796*1670*1750mm
|
2260kg
|
|
MSPT0.32-14
|
2812*1530mm
|
320Kg
|
14m
|
3067*1730*1810mm
|
2486kg
|
|
MSPT0.32-16
|
2812*1600mm
|
320Kg
|
16m
|
3067*1810*2080mm
|
3063kg
|
|
MSPT0.32-18
|
3070*1600mm
|
320Kg
|
18m
|
3321*1810*2080mm
|
3900kg
|
PRODUCT CONFIGURATION
Pneumatic tire
Electrical machinery
Battery
