15cm aluminium alloy frame 7090 poultry evaporative cooling pads for chicken house

7090 evaporative cooling pad

•Low pressure drop when wet, leading to lower operating costs •No water carry-over

•Low scaling •Self cleaning •Strong and self supporting •Long life time •Low running costs

•Quick and easy to install •Environmentally friendly •Consistant high quality

The evaporative cooling pad: consists of specially impregnated and corrugated cellulose paper sheets with different flute angles, one steep (60 deg) and one flat (30 deg) that have been bonded together. This unique design yields a cooling pad with a high evaporation efficiency while still operating with a very low pressure drop. In addition scaling is kept to a minimum and no water carryover occurs due to the fact that the water is directed to the air inlet side of the pad. This is where most of the ration takes place.

Cooling pad paper:it has high intensity structure,corrosion resistant,long service life.(MH cooling pad paper is from the Kiamusze City,thickness:100gsm,Width 600mm,7090,we use 84-88 pc paper.5090,about 120pcs paper).

The impregnation procedure :the cellulose paper ensures a strong self supporting product, with high absorbance, which is protected against decomposition and rotting and therefore increasing longevity.

The distribution pad: constitutes a vital part of a complete system and should always be ordered in combination withMH evaporative cooling pads. Placed on top of the cooling pad it ensures a uniform supply of the water to the cooling pad and minish the risk of dry spots.

One side black coating treatmeant:1)It is a tough and resilient optional edge treatment applied to the air entering face of our cooling pad. It has been formulated to withstand repeated cleaning without damaging the pad.

2)Blacking coating cooling pad is nonporous and quick drying. It prevents algae and minerals from anchoring themselves into the substrate of the pad, so they fall off when dried. 3)it also protects the cooling pads from the damaging effects of severe weather and long term exposure to UV light.

The black/green protective edge coating extends the life of the pad over that of non-treated pads.

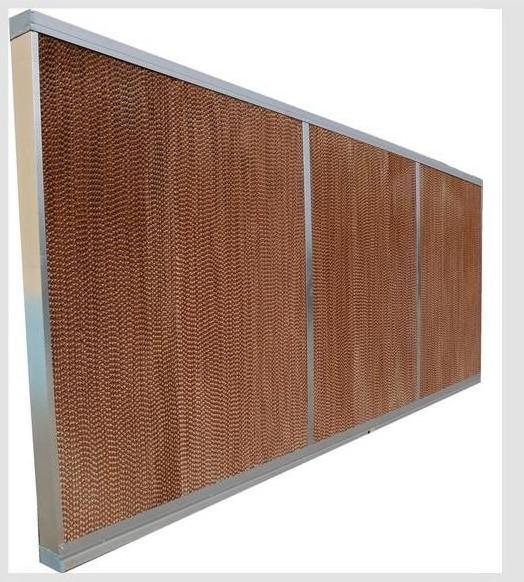

The evaporative cooling pad wall

The aluminum alloy frame(1.3mm+_thickness) or the stainless steel and galvanized steel

The inner pipe,water inlet and outlet are included.(25#,32#/50#,75# pipe)

The complete evaporative cooling pad wall system includes outside pipe system,water filter,water tank,water pump,water supply and drainage kit.

Our 7090 evaporative cooling pad is used in system where high efficiency is required.It can be used for many different cooling purposes but is particularly suitable for cooling of livestock buildings and greenhouses.Our project:
