Quick Details
-
Brand Name:
-
huda
-
Model Number:
-
HD-E702
-
Internal dimension (W*D*H):
-
500*500*600mm
-
External dimension (W*D*H):
-
700*1080*1480mm
-
Temperature range:
-
-20℃,-40℃,-60℃~+150℃
-
Temperature fluctuation:
-
±0.5℃
-
Temperature uniformity:
-
≤2℃(without loading)
-
Humidity range:
-
20%~98%RH (Refer Image below)
-
Humidity fluctuation:
-
±2.5%RH
-
Humidity uniformity:
-
3%RH
-
Heating rate:
-
Heating rate:3℃/min Cooling rate:1℃/min
-
Internal material:
-
Stainless Steel 304
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
huda
-
Model Number:
-
HD-E702
-
Internal dimension (W*D*H):
-
500*500*600mm
-
External dimension (W*D*H):
-
700*1080*1480mm
-
Temperature range:
-
-20℃,-40℃,-60℃~+150℃
-
Temperature fluctuation:
-
±0.5℃
-
Temperature uniformity:
-
≤2℃(without loading)
-
Humidity range:
-
20%~98%RH (Refer Image below)
-
Humidity fluctuation:
-
±2.5%RH
-
Humidity uniformity:
-
3%RH
-
Heating rate:
-
Heating rate:3℃/min Cooling rate:1℃/min
-
Internal material:
-
Stainless Steel 304
Function
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect

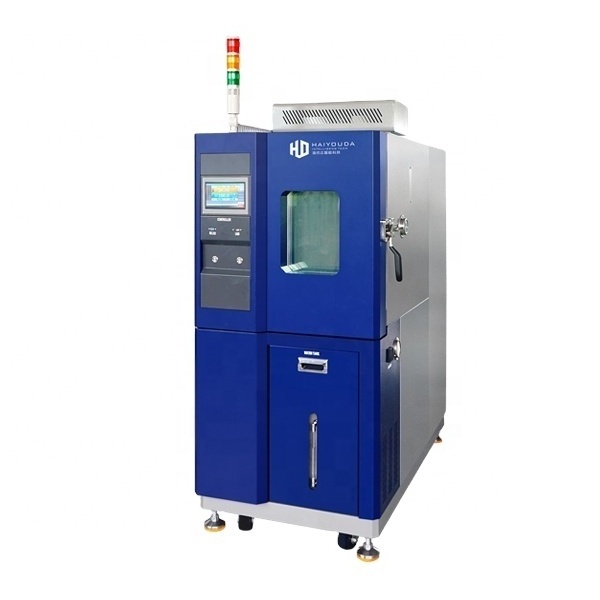

Details Images
Product Paramenters
|
Model
|
HUD-E702-100
|
HUD-E702-150
|
HUD-
E702-225
|
HUD-
E702-408
|
HUD-
E702-1000
|
||||
|
Internal dimension
|
400*500*
500mm
|
500*600*
500mm
|
500*750*
600mm
|
600*850*
800mm
|
1000*1000*
1000mm
|
||||
|
External dimension
|
740*1700*1380mm
|
870*1800*1430mm
|
870*1890*1530mm
|
1070*1900*1630mm
|
1240*1970*2230mm
|
||||
|
Temperature range
|
-70℃/-40℃/-20℃～+150℃
|
|
|
|
|
||||
|
Temperature fluctuations
|
≤±0.5℃ （without load and temperature stable）
|
|
|
|
|
||||
|
Temperature uniformity
|
≤4℃ （without load and temperature stable）
|
|
|
|
|
||||
|
Temperature deviation
|
≤±2℃ （without load and temperature stable）
|
|
|
|
|
||||
|
Heating rate
|
+25℃～+150℃≥40min（without load）
|
|
|
|
|
||||
|
Cooling rate
|
+25℃～ -70℃≥80min （without load）
|
|
|
|
|
||||
|
Power
|
3 phase, AC380V, 50Hz, about 5KW
|
|
|
|
|
||||
|
Humidity range
|
Temperature : +20℃～+85℃，Humidity： 20%～98%RH
|
|
|
|
|
||||
|
Humidity deviation
|
1、≥75%RH : ≤±3%RH；
2、≤75%RH：≤±5%RH |
|
|
|
|
||||
|
Noise
|
≤75db, measured from one meter in front of door, at 1.2meter height.
|
|
|
|
|
||||
|
Cooling method
|
Air cooling
|
|
|
|
|
||||
|
Controller
|
LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test |
|
|
|
|
||||
|
Insulation material
|
50mm high density rigid Polyurethane foam
|
|
|
|
|
||||
|
Heater
|
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
|
|
|
|
|
||||
|
Compressor
|
France Tecumseh compressor
|
|
|
|
|
||||
|
Lighting
|
Heat resistance
|
|
|
|
|
||||
|
Temperature sensor
|
PT-100 dry and wet bulb sensor
|
|
|
|
|
||||
|
Observation window
|
Tempered glass
|
|
|
|
|
||||
|
Testing hole
|
Diameter 50mm, for cable routing
|
|
|
|
|
||||
|
Sample tray
|
SUS#304 stainless steel, 2pcs
|
|
|
|
|
||||
|
Safety protection device
|
Protection for leakage
Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
|
|
|
|
||||
