Quick Details
-
Weight:
-
18000 KG
-
Drilling Diameter:
-
500mm
-
Drilling Depth:
-
Max.1200m
-
Product name:
-
XSL12/600
-
Max. lifting capacity:
-
600kN
-
Max. feeding capacity:
-
160kN
-
Stroke:
-
5000mm
-
Max. lifting speed:
-
31m/min
-
Max. feeding speed:
-
45m/min
-
Max. torque:
-
20000/10000 N.m
-
Max. speed:
-
70/140 r/min
-
Floating distance:
-
60mm
-
Name:
-
Water Well Drilling Rig XSL12/600 China Well Drilling Rig Machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Cruking
-
Dimension(L*W*H):
-
6450*3290*9420mm
-
Weight:
-
18000 KG
-
Drilling Diameter:
-
500mm
-
Drilling Depth:
-
Max.1200m
-
Product name:
-
XSL12/600
-
Max. lifting capacity:
-
600kN
-
Max. feeding capacity:
-
160kN
-
Stroke:
-
5000mm
-
Max. lifting speed:
-
31m/min
-
Max. feeding speed:
-
45m/min
-
Max. torque:
-
20000/10000 N.m
-
Max. speed:
-
70/140 r/min
-
Floating distance:
-
60mm
-
Name:
-
Water Well Drilling Rig XSL12/600 China Well Drilling Rig Machine

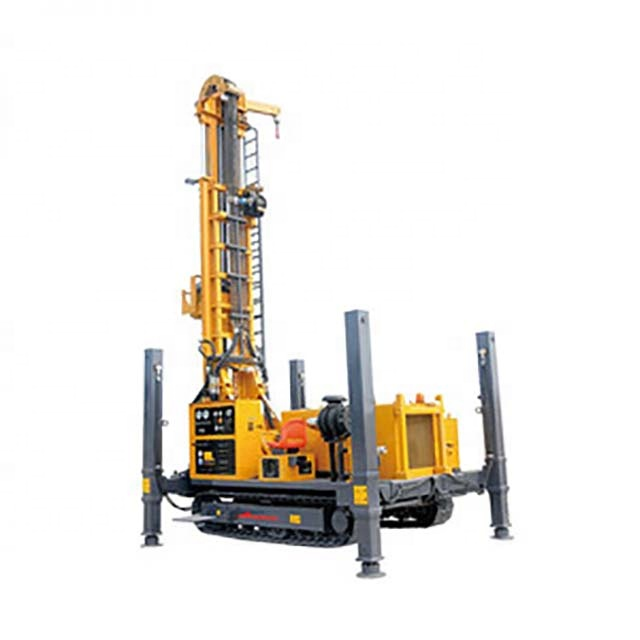

Depth 1200m Hydraulic Water Well Drilling Rig
XSL12/600
China Well Drilling Rig Machine
Contact
XSL series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
Performance Characteristics:
* Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.
* The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work eficiency.
* Unique hydraulic matching technology for high system efficiency.
* Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of diling pressure according to dilling depth.
* Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without liting. The swing-type centering device provides a wide working space when working.
The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
Performance Characteristics:
* Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.
* The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work eficiency.
* Unique hydraulic matching technology for high system efficiency.
* Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of diling pressure according to dilling depth.
* Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without liting. The swing-type centering device provides a wide working space when working.
|
Drilling capability
|
/
|
|
Drilling Depth(m)
|
1200(Φ89)
|
|
Max.diameter of working floor(mm)
|
Φ500
|
|
Feeding system
|
/
|
|
Max.lifting capacity(KN)
|
600
|
|
Max.feeding capacity(KN)
|
160
|
|
Max.lifting speed(m/min)
|
31
|
|
Max.feeding speed(m/min)
|
45
|
|
Stroke(mm)
|
5000
|
|
Top drive
|
/
|
|
Max.torque(N.M)
|
20000/10000
|
|
Max.speed(r/min)
|
70/140
|
|
I.D(mm)
|
Φ105
|
|
Floating distance(mm)
|
60
|
|
Max.tilting angle(°)
|
/
|
|
Deck engine
|
/
|
|
Type
|
YCA08260-T301
|
|
Rated power(KW)
|
191
|
|
Main winch
|
/
|
|
Hoisting capacity(KN)
|
50(Optional)
|
|
Tool winch
|
/
|
