Quick Details
-
Model Number:
-
LWB1-63
-
Rated Frequency:
-
/
-
Product Name:
-

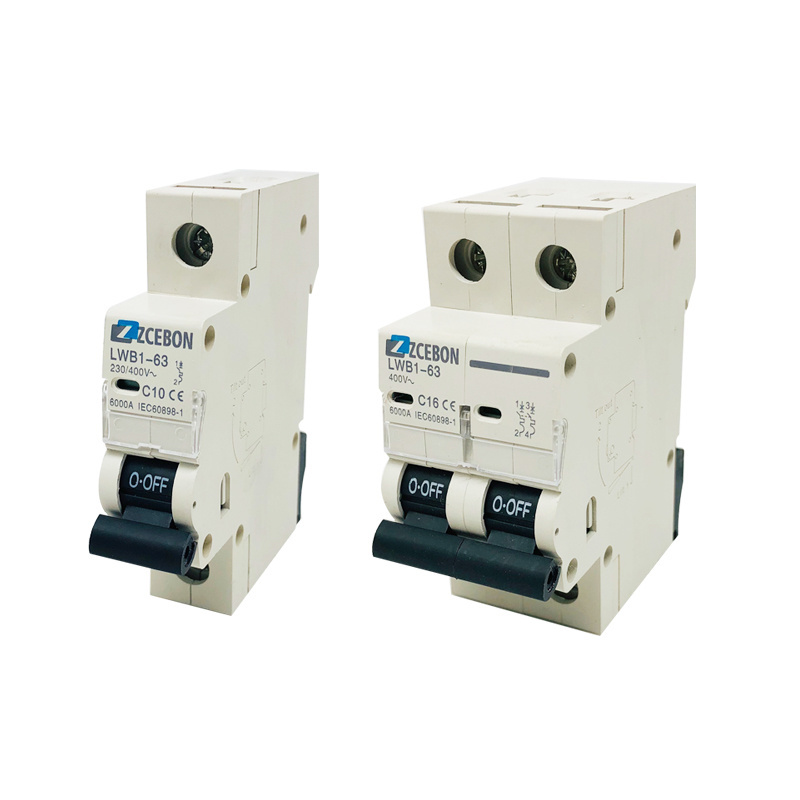

LWB1-63 circuit breaker
-
Standard:
-
IEC60898-1
-
Approvals:
-
CE, CB
-
Material:
-
PA66,red copper and silver
-
Number of poles:
-
1,2,3,4
-
Degree of protection:
-
IP20, with connected conductors
-
Electrical life(times):
-
4000
-
Mechanical life(times):
-
10,000
-
Rated switching capacity icn (KA):
-
4.5/6
-
Tripping characteristic:
-
B,C,D
Quick Details
-
Poles Number:
-
3
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZCEBOX
-
Model Number:
-
LWB1-63
-
Rated Frequency:
-
/
-
Product Name:
-
LWB1-63 circuit breaker
-
Standard:
-
IEC60898-1
-
Approvals:
-
CE, CB
-
Material:
-
PA66,red copper and silver
-
Number of poles:
-
1,2,3,4
-
Degree of protection:
-
IP20, with connected conductors
-
Electrical life(times):
-
4000
-
Mechanical life(times):
-
10,000
-
Rated switching capacity icn (KA):
-
4.5/6
-
Tripping characteristic:
-
B,C,D
Why Choose Us
Our factory
1. Own factory, Self-control quality.
2. 20 injection molding machines,
a day production can reach 6000
sets of products.
Our Advantages
1.Our own R&D team.
2.ODM&OEM
3.CE ROHS IK08 HF IS9001.
Packaging & Shipping
1. Packaging supports customized
services.
2. Low freight, support avariety of
modes of transportation.
Product Description
Features:
1.The handle being sealable or equipped with padlock bracket avoids dangerous operation changes (ON/OFF).
2.The handle provides a clear indication of the contact position
3.Adequate printing of all data on the front provides long-term identification
4.This MCB for household in accordance with IEC60898 - B,C and D tripping characteristics.
5.This MCB may be extended with:
A wide range of RCDs
Full sets of additional components
Full sets of accessories
Functions:
Used in residential building, non-residential building,energy sources
,
industry and infrastructure with function of overload protection;
Short circuit protection isolation;
Product Paramenters
|
Technical specifications
|
|
|
|
|
||||
|
Standard:
|
IEC60898-1
|
|
|
|
||||
|
Approvals:
|
CE, CB
|
|
|
|
||||
|
Rated current ln(A):
|
1,2,3,4,6,10,16,20,25,32,40,50,63
|
|
|
|
||||
|
Rated voltage Un (VAC):
|
230/400V
|
|
|
|
||||
|
Operational voltage(VAC):
|
Min. 24 Max. 250/440
|
|
|
|
||||
|
Rated insulation voltage (VAC):
|
500
|
|
|
|
||||
|
Number of poles:
|
1,2,3,4
|
|
|
|
||||
|
Tripping characteristic:
|
B,C,D
|
|
|
|
||||
|
Characteristic curve B (ln):
|
3 - 5
|
|
|
|
||||
|
Characteristic curve C (ln):
|
5 -10
|
|
|
|
||||
|
Characteristic curve D (ln):
|
10 -20
|
|
|
|
||||
|
Thermal operation limit(ln):
|
1.13 - 1.45
|
|
|
|
||||
|
Rated switching capacity icn (KA):
|
4.5/6
|
|
|
|
||||
|
Degree of protection:
|
IP20, with connected conductors
|
|
|
|
||||
|
Electrical life(times):
|
4,000
|
|
|
|
||||
|
Mechanical life(times):
|
10,000
|
|
|
|
||||
|
Mounting position:
|
any
|
|
|
|
||||
|
Solid and stranded (mm2):
|
0.75-35
|
|
|
|
||||
|
Finely stranded with end sleeve (mm2):
|
0.72-25
|
|
|
|
||||
|
Terminal tightening torque (N.M):
|
2.5-4
|
|
|
|
||||
|
Ambient temperature(℃):
|
-25~+45,max 95% humidity
|
|
|
|
||||
|
Storage temperature(℃):
|
-40~ +75
|
|
|
|
||||
|
Altitude Max (meters):
|
Max 2000
|
|
|
|
||||
R&D
Electronic Design. Mould Design. Packing Design. Project Develop.
Our Company has an excellent technology research and development foundation with more than 10 senior technicians.
We adopt advanced 3D software to design and develop our products, which exceeds our customers requirements.
OEM and ODM services
Focusing on the low voltage industry, we are professional manufacture of distribution box and junction box, which have been cetified with CE,ROHS and IK,HF.Regarding to making the box,we have more competitiveness not only on Zcebox
products but also on OEM and ODM services.
Exhibition
Certifications
Product packaging
Support for customized services
1. Good service from merchants, able to provide relevant packaging materials and other design services.
2. Self-owned, strictly control the production quality, and the product qualification rate is high.
3. International certification of related products.
4. OEM and ODM.
5. Each cooperation delivery cycle is short and can achieve the desired effect.
FAQ
Q: Is sample available and free? A: Free samples are available for small value.Q: What certificates do you have?
A:We have CE ,RoHS , HF, ISO9001 ......
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: Generally 15-45days, depends onthe order quantity and if need OEM service.
Q: How about the transport ?
A:Generally delivery by courier or by air for small order, and by sea for full containers.
A:We have CE ,RoHS , HF, ISO9001 ......
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: Generally 15-45days, depends onthe order quantity and if need OEM service.
Q: How about the transport ?
A:Generally delivery by courier or by air for small order, and by sea for full containers.
