Quick Details
-
Model Number:
-
PVC Layflat Hose
-
Specification:
-
19mm-305mm
-
Length:
-
20m, 50m, 100m
-
Thickness:
-
1mm~4mm
-
Standard:
-
REACH, REACH
-
Product name:
-
PVC Layflat Hose
-
Size:
-
19mm-305mm
-
Application:
-
Irrigation
-
Certification::
-
ISO9001-2008
-
Feature:
-
Non-toxic
-
Color:
-
Red, Blue, yellow, green
-
Working Pressure:
-
2bar~10bar
-
Working Temperature:
-
-5℃-75℃
-
OEM:
-
Accpet
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KINGDAFLEX; OEM
-
Model Number:
-
PVC Layflat Hose
-
Specification:
-
19mm-305mm
-
Length:
-
20m, 50m, 100m
-
Thickness:
-
1mm~4mm
-
Standard:
-
REACH, REACH
-
Product name:
-
PVC Layflat Hose
-
Size:
-
19mm-305mm
-
Application:
-
Irrigation
-
Certification::
-
ISO9001-2008
-
Feature:
-
Non-toxic
-
Color:
-
Red, Blue, yellow, green
-
Working Pressure:
-
2bar~10bar
-
Working Temperature:
-
-5℃-75℃
-
OEM:
-
Accpet
Source PVC/TPU Layflat Flexible Hose Heavy Duty PVC High Pressure Layflat Water Hose

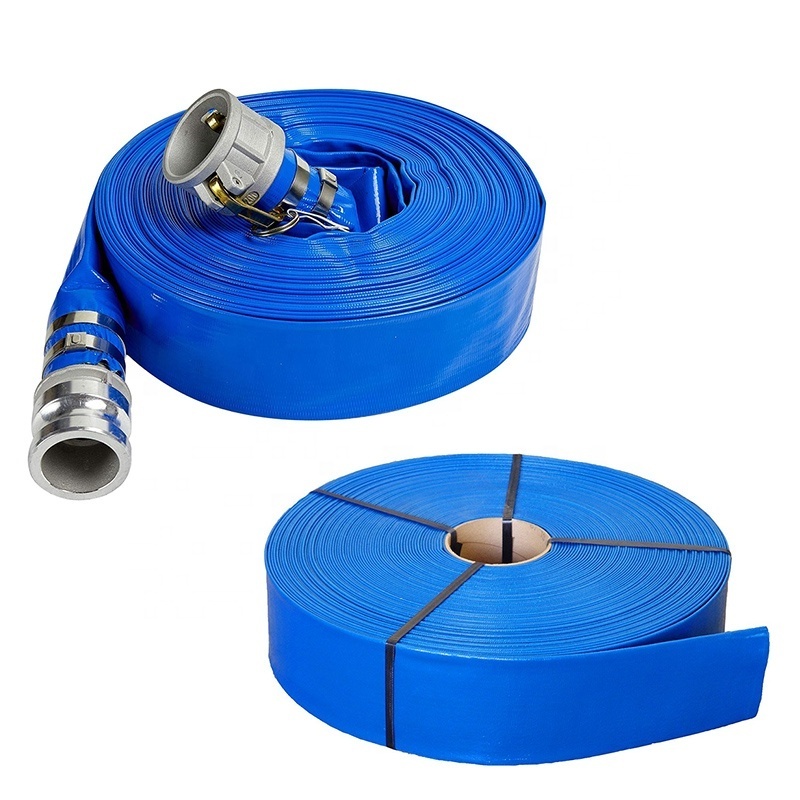

PVC layflat hose
Material: high strength polyester filament and high quality PVC.
One step extrusion: parted the threads regularly and molded by plastic coated once.
Character: Acid & alkali resistant .aging resistant, stretching resistant, anti-wrinkle, non-toxic.
Temperature range: -5ºC to +65 ºC
| Light Duty PVC Layflat Hose | ||||||
| Inch Size |
I.D
(mm) |
O.D
(mm) |
Thickness
(mm) |
W.P.
(bar) |
B. P.
(bar) |
Weight
(kg/m) |
| 1" | 26 | 28.6 | 1.30 | 4.0 | 12.0 | 0.15 |
| 1-1/4" | 33 | 35.4 | 1.20 | 4.0 | 12.0 | 0.17 |
| 1-1/2" | 41 | 43.5 | 1.25 | 5.0 | 15.0 | 0.21 |
| 2" | 53 | 55.0 | 1.00 | 4.0 | 12.0 | 0.23 |
| 2-1/2" | 66 | 68.3 | 1.15 | 4.0 | 12.0 | 0.32 |
| 3" | 78 | 80.1 | 1.05 | 4.0 | 12.0 | 0.36 |
| 4" | 104 | 106.4 | 1.20 | 4.0 | 12.0 | 0.55 |
| 5" | 128 | 130.7 | 1.35 | 4.0 | 12.0 | 0.75 |
| 6" | 155 | 157.7 | 1.35 | 4.0 | 12.0 | 0.90 |
| 8" | 207 | 211.4 | 2.20 | 3.0 | 9.0 | 1.79 |
| 8" | 207 | 212.3 | 2.65 | 4.0 | 12.0 | 2.02 |
| 10" | 257 | 262.3 | 2.65 | 2.5 | 7.5 | 2.65 |
| 12" | 308 | 313.1 | 2.55 | 2.0 | 6.0 | 2.91 |
| Standard Duty PVC Layflat Hose | ||||||
| Inch Size |
I.D
(mm) |
O.D
(mm) |
Thickness
(mm) |
W.P.
(bar) |
B. P.
(bar) |
Weight
(kg/m) |
| 3/4" | 20 | 22.7 | 1.35 | 7.0 | 21.0 | 0.11 |
| 1" | 26 | 29.0 | 1.50 | 7.0 | 21.0 | 0.17 |
| 1-1/4" | 33 | 35.6 | 1.30 | 7.0 | 21.0 | 0.19 |
| 1-1/2" | 41 | 43.9 | 1.45 | 7.0 | 21.0 | 0.23 |
| 1-3/4" | 45 | 48.2 | 1.60 | 8.0 | 24.0 | 0.32 |
| 2" | 53 | 55.6 | 1.30 | 6.0 | 18.0 | 0.30 |
| 2" | 53 | 56.0 | 1.50 | 8.0 | 24.0 | 0.35 |
| 2-1/2" | 66 | 69.4 | 1.70 | 7.0 | 21.0 | 0.43 |
| 3" | 78 | 80.9 | 1.45 | 6.0 | 18.0 | 0.50 |
| 4" | 104 | 108.6 | 2.30 | 6.0 | 18.0 | 0.87 |
| 5" | 128 | 132.6 | 2.30 | 6.0 | 18.0 | 1.08 |
| 6" | 155 | 159.8 | 2.40 | 6.0 | 18.0 | 1.60 |
| 8" | 207 | 212.9 | 2.95 | 5.0 | 15.0 | 2.20 |
| Heavy Duty PVC Layflat Hose | ||||||
| Inch Size |
I.D
(mm) |
O.D
(mm) |
Thickness
(mm) |
W.P.
(bar) |
B. P.
(bar) |
Weight
(kg/m) |
| 3/4" | 20 | 23.1 | 1.55 | 10.5 | 31.5 | 0.14 |
| 1" | 26 | 29.4 | 1.70 | 10.5 | 31.5 | 0.20 |
| 1-1/4" | 33 | 35.9 | 1.45 | 10.5 | 31.5 | 0.21 |
| 1-1/2" | 41 | 44.8 | 1.90 | 10.5 | 31.5 | 0.29 |
| 1-3/4" | 45 | 49.0 | 2.00 | 10.5 | 31.5 | 0.35 |
| 2" | 53 | 57.1 | 2.05 | 10.5 | 31.5 | 0.42 |
| 2-1/2" | 66 | 70.3 | 2.15 | 10.5 | 31.5 | 0.54 |
| 3" | 78 | 82.5 | 2.25 | 9.0 | 27.0 | 0.66 |
| 3" | 78 | 83.0 | 2.50 | 10.0 | 30.0 | 0.85 |
| 4" | 104 | 109.1 | 2.55 | 9.0 | 27.0 | 1.00 |
| 6" | 155 | 161.0 | 3.00 | 6.0 | 18.0 | 2.00 |
| 8" | 207 | 213.3 | 3.15 | 6.0 | 18.0 | 2.80 |
