FRP Rebar / Fiberglass Rock Bolt for Mining
Product Introduction of Fiberglass Rock Bolts
Glass fiber reinforced bar (FRP/GRP) is a new type of composite material. which is made of glass fiber or other fiber as reinforcing material, pultrusion resin and auxiliary agent as cementing material.
Fibers are slimer in diameter, smaller in size. The strength and modulus of matrix is much lower than fiber, but it can withstand larger strains, often with viscoelasticity and elastoplasticity and is a ducitile meterial.
frp rebar price grp rebar price fiberglass rebar rebar coupler basalt rebar fiberglass rebar for sale wholesale rebar rebar nut gfrp rebar
Specification of FRP Rebar
| Diameter | Length | Plate size | Tensile strenth | Ultimate load | Working Load |
| (mm) | (mm) | (mm) | (MPa) | (KN) | (KN) |
| 16 | 1000~1800 | 120×120×6 | ≥500 | 80 | ≥49 |
| 18 | 1200~2000 | 120×120×10 | ≥500 | 100 | ≥58.8 |
| 20 | 1400~2000 | 150×150×8 | ≥500 | 120 | ≥78.6 |
| 22 | 1600~2100 | 150×150×10 | ≥500 | 140 | ≥80 |
| 24 | 1800~2200 | 150×150×10 | ≥500 | 160 | ≥88.2 |

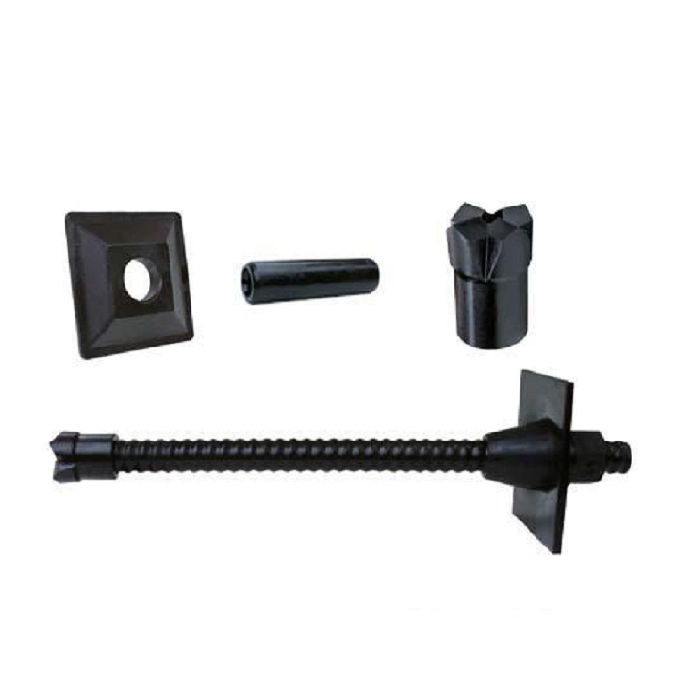

Product Accessories of FRP Rebar
1. Rebar : the important construction of the assembly, plays a major role in the anchor and support.
2. The head of the anchor drill: barb can be bolt positioning in the drilled holes, the middle rod body
good.
3. Coupling: easy to manage, unlimited application range.
4. Anchor plate : bear greater stress of surrounding rock.
5. Nut: the surrounding rock stress concentrated on the pad.
frp rebar frp rebar fiberglass rebar frp rock bolt grp rock bolt fiberglass rock bolt price
Advantage of GRP Rebar
1. Well dimensional stability .
2. Well insulated .
3. Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.
4. High tensile strength and bending properties to make it go through narrow pipes easily.
5. Good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature.
frp rock bolts for underground ming grp rock bolt for underground mining fiberglass rock bolt for coal mine
Applications of FRP Rebars
1) GRP rebars used for construction as alternatives of steel rebar
2) FRP rock bolt used for underground mining
FRP rock bolt grp rock bolt composit rock bolt fiberglass rock bolt fiber glass reinforced plastic rock bolt price frp rock bolt price
Packing and Delivery of Fiberglass Rebars
