Quick Details
-
Rotary Speed:
-
350/940/1300r/min
-
Voltage:
-
380 220 110
-
Power:
-
7500
-
Weight:
-
250 kg, 100kg
-
Dimension(L*W*H):
-
700*700*1200mm
-
Power Source:
-
hydraulic/electric
-
Running Speed:
-
3-6m/h
-
Product name:
-

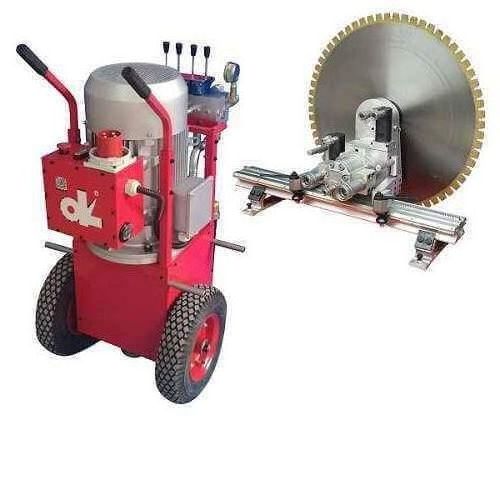

Fast Speed Concrete Wall Saw Cutter Cutting Machine
-
Keyword:
-
electric chain saw sharpener
-
Blade diameter:
-
800/1000/1200mm
-
Application:
-
Asphalt Cutting
-
Max Cutting Depth:
-
50cm
-
Cutting style:
-
Blade
-
Depth Adjustment:
-
Hand Wheel
-
Saw type:
-
Circular Saw
-
Max. Cutting Width:
-
1800mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Cutting Depth:
-
600mm
-
Rotary Speed:
-
350/940/1300r/min
-
Voltage:
-
380 220 110
-
Power:
-
7500
-
Weight:
-
250 kg, 100kg
-
Dimension(L*W*H):
-
700*700*1200mm
-
Power Source:
-
hydraulic/electric
-
Running Speed:
-
3-6m/h
-
Product name:
-
Fast Speed Concrete Wall Saw Cutter Cutting Machine
-
Keyword:
-
electric chain saw sharpener
-
Blade diameter:
-
800/1000/1200mm
-
Application:
-
Asphalt Cutting
-
Max Cutting Depth:
-
50cm
-
Cutting style:
-
Blade
-
Depth Adjustment:
-
Hand Wheel
-
Saw type:
-
Circular Saw
-
Max. Cutting Width:
-
1800mm
Application of the machine:
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use
4. 1600 mm blade which Maximum cutting depth up to 600mm.
The whole set of machine inculdes:
1. one frame with an electric motor, 220V, 50Hz, 6580w.
(We could customize the motor according to your requirement.)
2. one disk, 800-1000mm or customized.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the disc and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for disc in/out, side handle is for machine movement.)
Warranty of wall saw machine:
1. one year.
2. life time free technical support.
|
Model |
YG-800 | YG-1000 |
YG-1200 |
|
Voltage |
220v | 220v | 220v |
|
Power |
6200w | 6580w |
8680w |
|
Max. Cutting depth |
320mm |
400mm |
500mm |
|
Disk diameter |
800mm |
1000mm |
1200mm |
