Quick Details
-
Dimension(L*W*H):
-
930x710x690 mm
-
Weight (KG):
-
160
-
Power (kW):
-
0.37
-
N.W. of Machine:
-
130 Kg
-
Overall Dimension of Machine:
-
945x650x430 mm
-
Package Size of Tools Cabinet:
-
850x550x1070 mm
-
Valve Head Grinding Anglo:
-
15-55°
-
Required Rated Air Pressure:
-
6 Bar/85 PSI
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Richon
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
930x710x690 mm
-
Weight (KG):
-
160
-
Power (kW):
-
0.37
-
N.W. of Machine:
-
130 Kg
-
Overall Dimension of Machine:
-
945x650x430 mm
-
Package Size of Tools Cabinet:
-
850x550x1070 mm
-
Valve Head Grinding Anglo:
-
15-55°
-
Required Rated Air Pressure:
-
6 Bar/85 PSI
Products Description

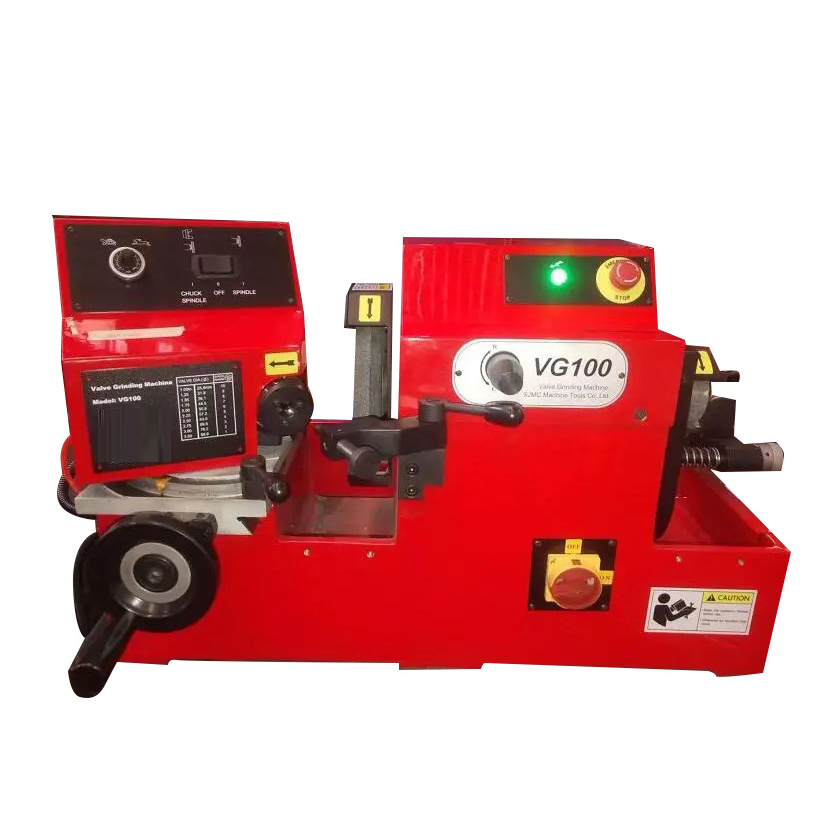

Valve grinding machine VG100/VG100A
Valve Grinding Machine Model: VG100 series can complete following work in five minutes: Clamping of valve stem and keep high accuracy positioning at the moment; Precision grinding of the conical surface of valve, roundness can be achieved 0.005 mm, finish can be achieved Ra0.32. The whole process is simple and perfect, very easy to use the machine, do not need specialist training, you can do that perfect work,depended on the 2x3 ball high precision pneumatic chuck. The VG100 series is new standards in speed and accuracy for valve grinding.
|
Model
|
VG100
|
VG100A
|
|
|
Type of Drive System
|
Air / Electric
|
|
|
|
Valve Stem Diameter Range with Chuck
|
4-14 mm
|
|
|
|
Valve Stem Length Range with Chuck
|
54 - 260 mm
|
|
|
|
Valve Head Diameter Range
|
20-102 mm
|
|
|
|
Valve Total Length Range
|
90-315 mm
|
|
|
|
Max. Boring Dia.
|
14-60 mm
|
|
|
|
Valve Head Grinding Anglo
|
15-55°
|
|
|
|
Valve Stem Butt Grinding Angle
|
0°and 45°
|
|
|
|
Valve Head Grinding Wheel Diameter
|
178 mm
|
|
|
|
Valve Stem Butt Grinding Wheel Diameter
|
76 mm
|
|
|
|
Valve & Butt Grinding Wheel Speed
|
3500 rpm at 50 Hz ; 4200 rpm at 60 Hz
|
|
|
|
Chuck Rotation Speed
|
50 - 230 rpm
|
|
|
|
Working Accuracy
|
<0.015 mm (0.006")
|
<0.005 mm (0.002")
|
|
|
Coolant Capacity
|
3Uter
|
|
|
|
Required Rated Air Pressure
|
6 Bar/85 PSI
|
|
|
|
Power of Grinding Wheel Motor
|
0.37 kW
|
|
|
|
Power of Chuck Rotation Motor
|
0.09 kW
|
|
|
|
Overall Dimension of Machine
|
945x650x430 mm
|
|
|
|
Overall Dimension of Tools Cabinet
|
700x380x810 mm
|
|
|
|
Package Size of Machine
|
930x710x690 mm
|
|
|
|
Package Size of Tools Cabinet
|
850x550x1070 mm
|
|
|
|
N.W. of Machine
|
130 Kg
|
|
|
|
G.W. of Machine
|
160 Kg
|
|
|
|
N.W. of Tools Cabinet
|
50 Kg
|
|
|
|
G.W. of Tools Cabinet
|
70 Kg
|
|
|
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1:
12 month
guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2:
Free replacing parts
available in the warranty period.
Cost-value replacing parts
available beyond the warranty period.
Quick action
and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes,
free training
in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide
different kinds processing solutions
for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to
visit our factory at any time
. The more you know us, the more you trust us! So you can rest assured on our
quality products
and our
best services
.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
