- Product Details
- {{item.text}}
Quick Details
-
Product Weight（kg）:
-
0.15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
boqi
-
Connection Mode:
-
Wiring
-
Product Name:
-
AC100-240V DALI AC Switch 2 channel
-
Input / Output voltage:
-
AC100-240V
-
Output current:
-
5A
-
Output power:
-
500-1200W
-
IP Rate:
-
IP20(Indoor)
-
Dimming mode:
-
DALI Dimmable
-
Certification:
-
CE RoHS
-
Dimension:
-
187*46*22mm
-
Net. Weight:
-
0.15KG
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
1200
-
Product Weight（kg）:
-
0.15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
boqi
-
Connection Mode:
-
Wiring
-
Product Name:
-
AC100-240V DALI AC Switch 2 channel
-
Input / Output voltage:
-
AC100-240V
-
Output current:
-
5A
-
Output power:
-
500-1200W
-
IP Rate:
-
IP20(Indoor)
-
Dimming mode:
-
DALI Dimmable
-
Certification:
-
CE RoHS
-
Dimension:
-
187*46*22mm
-
Net. Weight:
-
0.15KG
Products Description

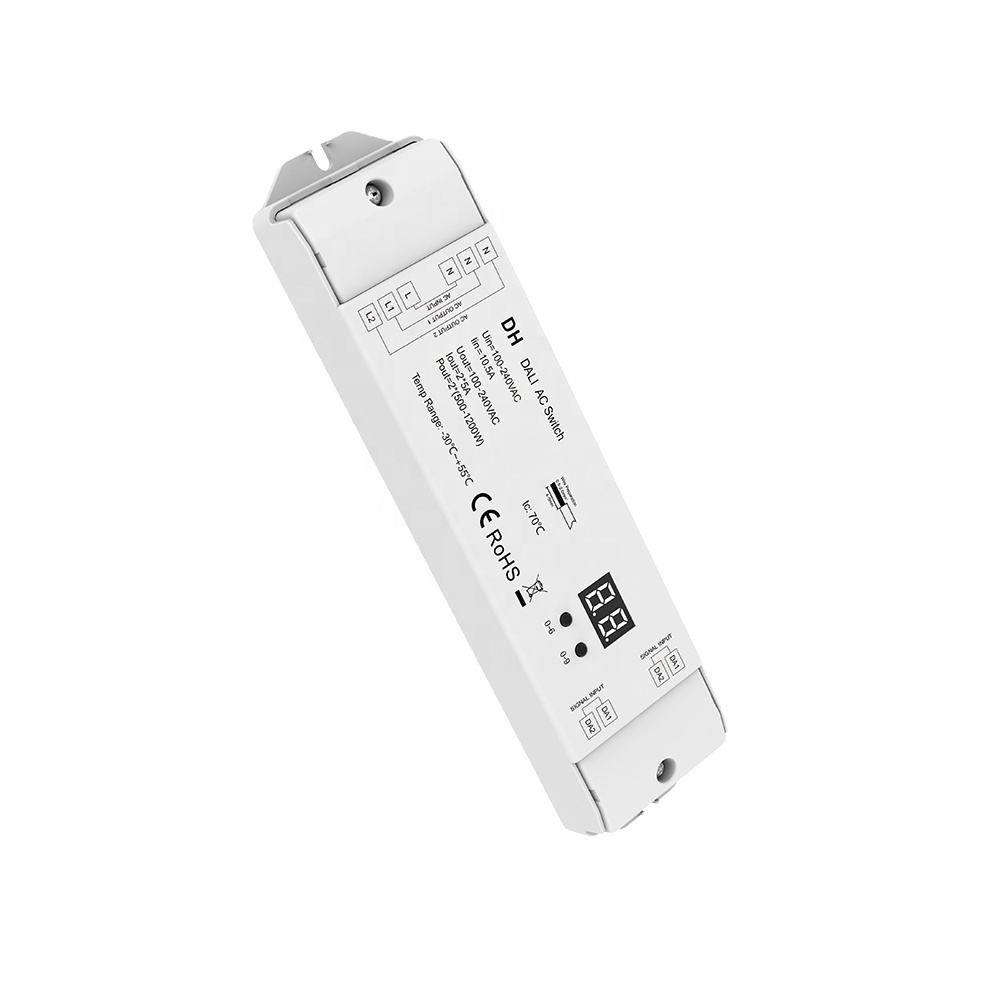

100-240VAC 2CH*5A DALI AC Switch DH (DT7)
Feature
*
DALI control power on/off to cater for unwanted dimming lighting system, two DALI address, two channel output, AC input and ACoutput.
*
In accordance with DALI standard protocol IEC 62386-102, IEC 62386-208 and in compliance with DALI products from other international incorporation.
* DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master
* DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master
*
The switching thresholds of the relay can be set on the DALI bus
* Zero cross switching function, 2 independently output channels AC switch.
* Zero cross switching function, 2 independently output channels AC switch.
*
To switch two LED lamps, traditional incandescent and halogen lights.
* With 5 Years Warranty
