Fine structure, easy operation, professional manufacturing, high quality.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Wadley
-
Voltage:
-
220/380/415/420/440V
-
Power:
-
Motor:5.5KW
-
Dimension(L*W*H):
-
20m x 1.1m x 1.4m
-
Weight:
-
5000 kg
-
Product name:
-
Tube Roll Making Machine
-
Raw material:
-
Stainless Steel Coils/Carbon Steel Coils/Galvanized Steel Coils
-
Round Pipe diameter:
-
6-31.8mm
-
Square Pipe Diameter:
-
F10*10mm-F25*25mm
-
Rectangle Pipe Diameter:
-
F10*20mm-F30*20mm
-
Round Pipe Thickness:
-
0.2-1.2mm
-
Square Pipe Thickness:
-
0.3-0.8mm
-
Pipe length:
-
3-6mm
-
Horizontal Shaft:
-
40mm
-
Keyword:
-
Tube Making Machine
Quick Details
-
Pipe Material:
-
Stainless steel
-
Marketing Type:
-
Hot Product 2023
-
Production Capacity:
-
1-1.2Tons/ 8 hours
-
Place of Origin:
-
China
-
Brand Name:
-
Wadley
-
Voltage:
-
220/380/415/420/440V
-
Power:
-
Motor:5.5KW
-
Dimension(L*W*H):
-
20m x 1.1m x 1.4m
-
Weight:
-
5000 kg
-
Product name:
-
Tube Roll Making Machine
-
Raw material:
-
Stainless Steel Coils/Carbon Steel Coils/Galvanized Steel Coils
-
Round Pipe diameter:
-
6-31.8mm
-
Square Pipe Diameter:
-
F10*10mm-F25*25mm
-
Rectangle Pipe Diameter:
-
F10*20mm-F30*20mm
-
Round Pipe Thickness:
-
0.2-1.2mm
-
Square Pipe Thickness:
-
0.3-0.8mm
-
Pipe length:
-
3-6mm
-
Horizontal Shaft:
-
40mm
-
Keyword:
-
Tube Making Machine
Product Description
Stainless steel industrial pipe making machine is mainly used to produce industrial stainless steel pipes. Due to the maturity of stainless steel welding pipe technology, seamless pipes have been replaced in many fields. It is widely used in chemical industry, medicine, distillery, petroleum, food, automobile, paper making, air conditioning and other industries.
Raw material (strip steel coil) → uncoiling → shearing and butt welding → material storage → leveling → forming and rolling → high-frequency welding → removing internal and external burrs → zinc supplement → spraying and cooling → sizing and shaping → rough straightening → water removal → sizing and cutting → pipe collection and binding.
Fine Structure, Easy Operation, Professional Manufacturing, High Quality.
Specification
|
Model
|
Pipe Diameter
|
Pipe Thickness
|
Drive Motor
|
Dimension
|
Horizontal shaft diameter
|
Vertical shaft diameter
|
|
WL40
|
φ8-51mm
|
0.3-2.2mm
|
7.5kw+5.5kw
|
29m*1.5m
|
40mm
|
30mm
|
|
WL50
|
φ25-76mm
|
0.4-2.5mm
|
7.5kw+5.5kw
|
32m*1.5m
|
50mm
|
30mm
|
|
WL60
|
φ50-114mm
|
0.5-3.0mm
|
15kw+15kw
|
35m*1.8m
|
60mm
|
30mm
|
|
WL80
|
φ89-168mm
|
φ89-168mm
|
18.5kw+18.5kw
|
40m*2.5m
|
80mm
|
50mm
|
|
WL100
|
φ114-219mm
|
φ114-219mm
|
22kw+22kw
|
43m*3.0m
|
100mm
|
60mm
|
|
WL-120
|
φ168-325mm
|
φ168-325mm
|
37kw+37kw
|
48m*3.0m
|
120mm
|
80mm
|
Product Overview
Forming Part Of
steel pipe making production line
High Frequency Welding Part
Of
steel pipe making production line
High Frequency Welding Part
Of
steel pipe making production line
Advantage Of steel pipe making production line
1. CNC equipment parts processing, high product accuracy;
2. The machine is sturdy and durable, with little chance of maintenance;
3. Adopt Siemens motor and other brand accessories, with high performance;
4. Fully automatic, simple operation, continuous production and high efficiency;
5. The pipe making speed is 15% faster than that of peers, and the output is high;
6. The production cost is low, the material waste is small, and the finished product rate of pipe can reach more than 98%;
7. We have professional designers and planners to customize different solutions for our customers with different requirements, and help them make more reasonable suggestions on production line layout and production management.
8. Provide technical documents and support for mechanical installation, maintenance, operation, etc.
9. Provide machinery related transportation information, be responsible for loading goods and handling transportation related procedures, and pay attention to cargo safety and logistics information at all times.

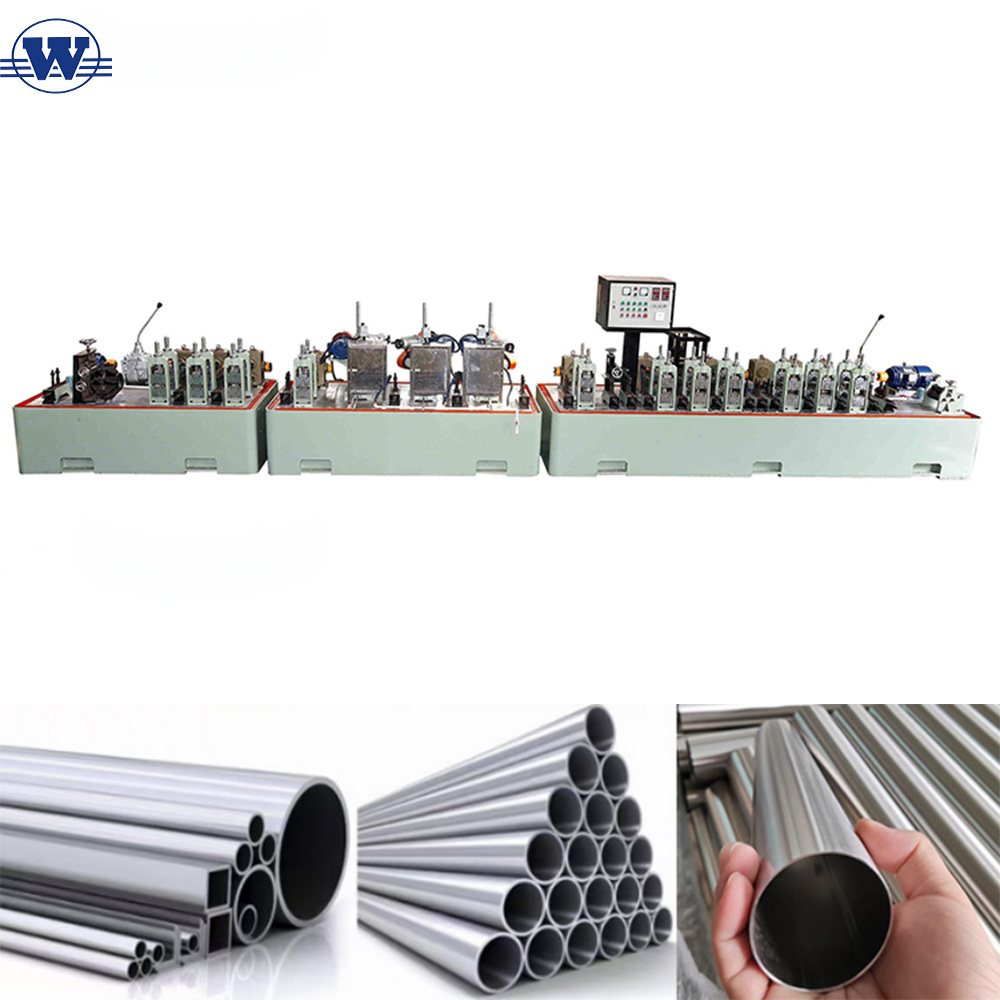

Display Of Wadley Metal Pipe Making Machine:
Packing & Delivery
The packaging method we adopt is film packaging, which is fixed with iron wire after loading the container.
