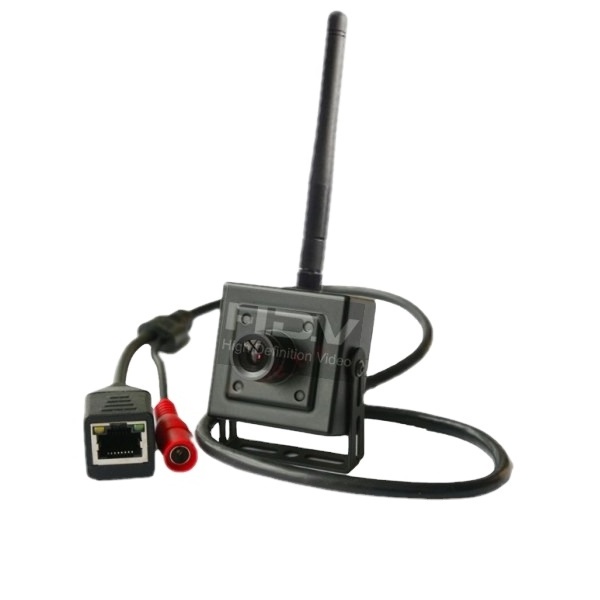

1.3MP WiFi Wireless, P2P, ON VIF, 960P Mini Pinhole IP Camera 3.6mm super cone Lens bird nest bird nests box house camera
1.3MP WiFi Wireless, P2P, ON VIF, 960P Mini Pinhole IP Camera 3.6mm super cone Lens bird nest bird nests box house camera
1.3MP WiFi Wireless, P2P, ON VIF, 960P Mini Pinhole IP Camera 3.6mm super cone Lens bird nest bird nests box house camera
1.3MP WiFi Wireless, P2P, ON VIF, 960P Mini Pinhole IP Camera 3.6mm super cone Lens bird nest bird nests box house camera
1.3MP WiFi Wireless, P2P, ON VIF, 960P Mini Pinhole IP Camera 3.6mm super cone Lens bird nest bird nests box house camera
1.3MP WiFi Wireless, P2P, ON VIF, 960P Mini Pinhole IP Camera 3.6mm super cone Lens bird nest bird nests box house camera

1.3MP WiFi Wireless, P2P, ON VIF, 960P Mini Pinhole IP Camera 3.6mm super cone Lens bird nest bird nests box house camera

FOB Reference Price: Get Latest Price
≥2 Pieces
US $29.9
≥100 Pieces
US $27.9
≥500 Pieces
US $25.9
≥1000 Pieces
US $19.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
H.D.V
Model Number:
HDV-XIP130AE-M40WF-L3.6
Definition:
1/3" 1.3Megapixel CMOS
Video Format:
PAl or NTSC
Exellent night vision:
0.001Lux
Squarehead Size and Weight:
40*40mm 150g
Power Supply:
DC 12V±10%
Video Out:
RJ45
WiFi:
IEEE802.11b/g/n
P2P/On vif:
Support P2P iCloud service
Standard Lens:
3.7mm Super Pinhole Lens F1.2/90°
Optional Lens:
2.8mm Super Pinhole Lens F1.2/100°

Quick Details

Function:
Wide Angle, Built-in Siren, Two-way Audio, One-way Audio, Vandal-proof, NIGHT VISION, Built-in Mic
Data Storage Options:
SD Card, Micro SD card, Cloud, NVR, Memory Card
Place of Origin:
Guangdong, China
Brand Name:
H.D.V
Model Number:
HDV-XIP130AE-M40WF-L3.6
Definition:
1/3" 1.3Megapixel CMOS
Video Format:
PAl or NTSC
Exellent night vision:
0.001Lux
Squarehead Size and Weight:
40*40mm 150g
Power Supply:
DC 12V±10%
Video Out:
RJ45
WiFi:
IEEE802.11b/g/n
P2P/On vif:
Support P2P iCloud service
Standard Lens:
3.7mm Super Pinhole Lens F1.2/90°
Optional Lens:
2.8mm Super Pinhole Lens F1.2/100°

1.3MP WiFi Wireless, P2P, ONVIF, HD 720P Mini Pinhole IP Camera

Order Symbol:

HDV-XIP130PL-AE-M40WF-L3.6  with 3.6mm lens

HDV-XIP130PL-AE-M40WF-L2.8  with 2.8mm lens

HDV-XIP130PL-AE-M40WF-L4.2  with 4.2mm lens

HDV-XIP130PL-AE-M40WF-L6     with 6mm lens

HDV-XIP130PL-AE-M40WF-L8     with 8mm lens

HDV-XIP130PL-AE-M40WF-L12   with 12mm lens

Supports a variety of networking:

IPC------------------------------Mobile client


IPC------------------------------PC CMS client

IPC-------------NVR


IPC-------------platform

Features:

  • 1/3" 1.3 Megapixel Low illumination CMOS
  • 1280*960@20-25fps, 1280*720@25fps
  • ONVIF
  • WiFi:  IEEE802.11b/g/n
  • H.264 Main Profile @ level 3.0 coding
  • Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
  • Support Color/BW mode converting, day to night
  • IR distance: up to 20m
  • Build in Motion Detection
  • Support alarm linkage,
  • Bi-directional real time audio transmission
  • Alarm input and output is optional
  • Auto-retrieve function and auto-connection network
  • Support Plug-and-Play, including PC surveillance platform
  • Mobile client, Easy toremote
  • Integrated ONVIF standard, Compatibility with third-party ONVIF platform software, 100% compatible DAHUA, HIKIVISION NVR
  • Audio is optional
  • IP55 Rated Waterproof, indoor use
  • Free Technology Support and relative Free software, Have a series of Clients, SDK, Firmware, has offered the better platform for your secondary development ,

Product Description

1.3 megapixel WiFi IP Camera
Model HDV-XIP130PL-AE-M40WF-L3.6
WiFi
Wireless technology IEEE802.11b/g/n
Transmission speed 11n mode:150/135/121.5/108/81/54/40.5/27/13.5Mbps,11g mode:54/48/36/24/18/12/9/6M
11b mode:11/5.5/2/1Mbps
Modulation Mode OFDM/CCK/16-QAM/64-QAM
Security WEP (64/128 bit),WPA-PSK(AES/TKIP), WPA2-PSK(AES/TKIP)
Hardware
System structure Embedded RTOS design, dual-core 32-bit DSP(HI3518), pure hardware compression, watchdog, 16M FLASH,
128M DDR3;
sensor

1.3megapixel 1/3” CMOS;

color 0.01lux(at)F1.2; black and white 0.001 lux(at)F1.2; integrated active LED control
circuit, integrated IRCUT drive, support sensor + IR-CUT + photosensitive + LED fill light linkage and day and
night switch, can choose IRCUT( Pinhole series can not with IR Cut)

Video
Video processing H.264 video coding; support dual-stream, AVI format ; support adjustable stream 0.1M~6Mpbs
Frame Rate 1.3 megapixel 25 frame(full-time) , support to adjust 1~25 framerate;
Video output main stream:1280*960/1280×720
sub stream: 704×576,640×360,480×270,352×288,320×240,352×192,320×192, 288×192,256×192;
Audio                              (Optional)
Audio input 1 channel audio input, level is 2Vp-p, impedance is  1kΩ,support pickup input;
Audio output 1 channel audio output impedance is 16Ω,output power is 30mw, support earphone or amplifier
Audio Process G.711standard  codec, support two-way voice intercom function, support for audio and video synchronization;
Network Interface
Network 1*RJ45 Ethernet interface, 10/100M self-adaptation and can resist 6kv static electricity, support the network
protocols which is  RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc.;
Photoresistor 1* photoresistor interface ,support photoresistor input signal and image, IR-CUT and infrared light linkage;
LED control 1*infrared light control interface, supports algorithm to control the opening and closing of infrared light;
Alarm N/A  (if you need This function, pls send us inquiry, we will recommend the right one to you.)
USB N/A  (if you need This function, pls send us inquiry, we will recommend the right one to you.)
TF N/A  (if you need This function, pls send us inquiry, we will recommend the right one to you.)
Auto iris N/A  (if you need This function, pls send us inquiry, we will recommend the right one to you.)
Network Functions
ONVIF Support ONVIF, 100% compatible DAHUA, HIKIVISION NVR
Optional features /
Business functions Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage,
front storage playback/ download, motion detection and IO alarm center remind and screen pop-up linkage,
unified client remote monitoring software (UC2) and platform etc. system.
SDK provide complete development kit SDK;
Phone Monitoring(P2P) (Iphone, Android ), through service “through clouds”,  Plug and Play (P2P) iCloud service
others DC 12V input interface, 2W power consumption, the volume is 38×38×15mm (have no lens mount is 8mm),
the weight is about 0.16kg, have no shell PCBA, the structure is 38 single board;
General Working Environment
Fan / Heater Auto
Covering IP65
Temperature -20° ~ 50°
Humidity 0% ~ 95% RH
Connector RJ45 , DC 12V (White or Black cable optional)
Dimension 40(L)×40(W)×26(H)mm
Material All the metal
Weight 0.2kg
Lenses Optional

Packaging & Shipping

Packing List:

1pc ip camera

1set screws

1pc manual

1pc color box

1pc CD

Single Size: *65*55mm(LXWXH)

Shipping information:

1. We ship most packages within 48 hours by DHL, UPS ,TNT or EMS(3-7 Day). This allows them to be tracked and insured for loss or damage. If you would like us to ship by a faster method, you can select this option when you finish your order. DHL, UPS ,TNT or EMS don't ship or deliver on weekends or holidays.

2 .Transportation by sea be the mode ( of transportation ) we usually adopt for our export. And COSCO, SITC, PIL, SINOKOR and other major shipping companies established a good and close relations of cooperation.

Product Uses

users through the Android Phone/Pod/into the Google Play store, search and download and install., through the iPhone/ipod/iTunes into the App Store, search  download and install.
